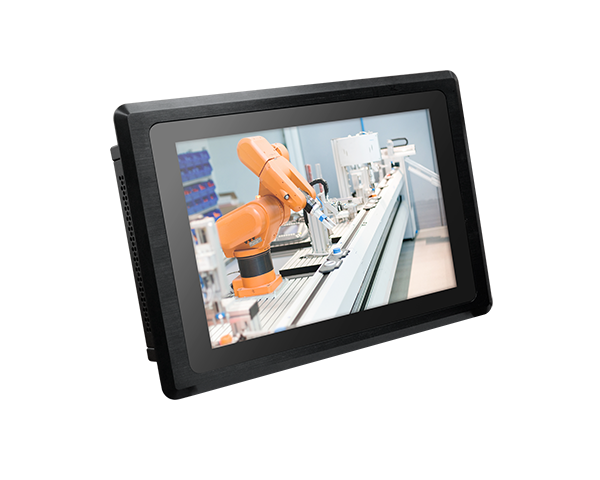

DFI KS101P-IRN – 10.1″ Industrial Panel PC for 24/7 Reliability Across Harsh Environments
The DFI KS101P-IRN is a 10.1″ rugged industrial touch panel PC built for continuous 24/7 operation on demanding factory lines, AGVs, and digital signage applications. Powered by Intel® Twin Lake processors with an ultra-low 6W TDP, it significantly reduces long-term total cost of ownership while delivering reliable performance at the edge.
The quad-core N150 runs at just 6W TDP — half the draw of the previous Alder Lake N97. The octa-core Core™ 3 N355 delivers a 10% multi-threaded performance boost with no added power cost.
True-flat aluminum die-cast enclosure with IP65 front protection. MIL-STD-810G/H compliant for shock and vibration. Wide 9~36V DC input and -20°C to 60°C operating temperature.
1280×800 at 500 nits. PCAP multi-touch with 7H surface hardness for scratch resistance and reliable touch response under heavy, continuous frontline use.
Triple M.2 (2242 M-Key, 3052 B-Key, 2230 E-Key), 2x GbE LAN, 4x USB 3.2, 2x RS-232/422/485, and HDMI up to 4K2K — connecting both legacy and modern systems seamlessly.
| Processor | Intel® Processor N150 (Quad-Core, 6W TDP) / Intel® Core™ 3 N355 (Octa-Core) |
| Memory | 16GB DDR5 |
| Display | 10.1″ TFT LCD, 1280×800, 500 nits, PCAP Multi-Touch, 7H Surface Hardness |
| Storage Expansion | M.2 2242 M-Key, M.2 3052 B-Key, M.2 2230 E-Key |
| Connectivity | 2x GbE LAN, 4x USB 3.2, 2x RS-232/422/485, HDMI (up to 4K2K) |
| Power Input | 9~36V DC wide range |
| Operating Temp. | -20°C to 60°C |
| Protection | IP65 front, MIL-STD-810G/H, aluminum die-cast true-flat design |
