XORE-IMX8M-MINI
LGA SOLDER DOWN SYSTEM ON MODULE WITH NXP I.MX8M MINI
SMALLEST I.MX8M MINI MODULE ON THE MARKET
SPECIFICATION
Core System
| Processor | NXP i.MX8M Mini |
| Architecture | ARM Cortex-A53 + M4 |
| PMIC | ROHM BD71847 |
| Memory | up to 4GB LPDDR4 |
| Storage | eMMC (16GB Default) |
| System on Module | XORE SOM |
Connectivity
| Network LAN | RGMII |
Signaling
| I/O | MIPI CSIMIPI DSIRGMIIPCIeUSBUSB OTGI²SSDIOUARTSPII²CPWMGPIO |
Video
| Graphic Engine | Vivante GC7000Lite |
| Video Decode | 1080p60 H.264 |
| Video Encode | 1080p60 H.264 |
| Camera | MIPI CSI (4 lanes) |
Audio
| Audio Codec | On carrier board |
| Audio Interface | I²S (2 channel) |
Power Specifications
| Power Input | 5V DC +/-5% |
| Power Consumption | Depending on Configuration |
Operation Systems
| Standard Support | LinuxYoctoAndroid |
Certification and Compliance
| Certification | Compliant with CE / FCC / RoHS / REACH directives |
Environmental and Mechanical
| Dimensions | 30 x 30 mm |
| Weight | 5 grams |
| Operation Temperature | Commercial: 0° to +60° C |
| Relative Humidity | 10 to 90 % |
| MTBF | >100 000 Hours |
| Shock | 15G half-sine 11 ms duration |
| Vibration | 1 Grms random 5-500Hz hr/axis |
BLOCK DIAGRAM

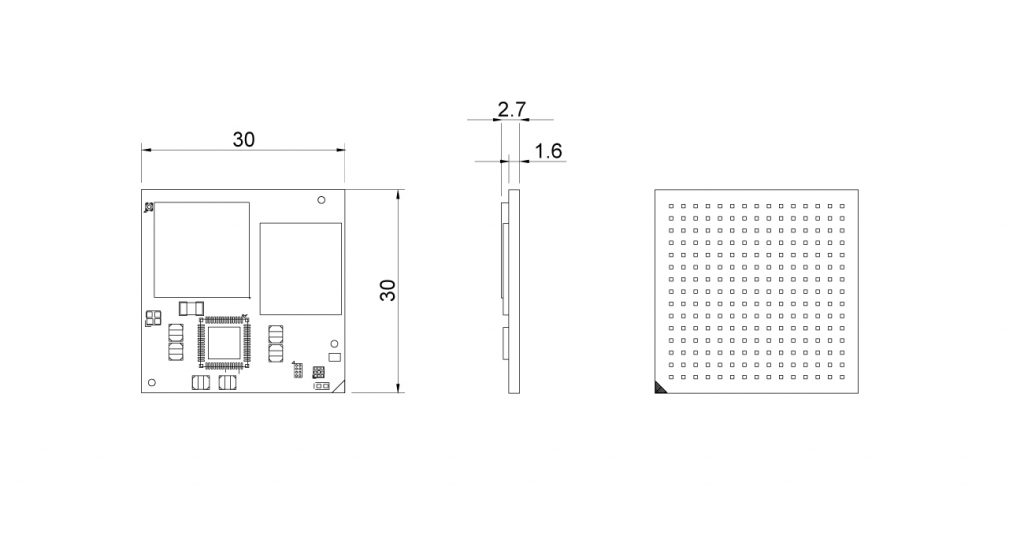

DIMENSIONS
