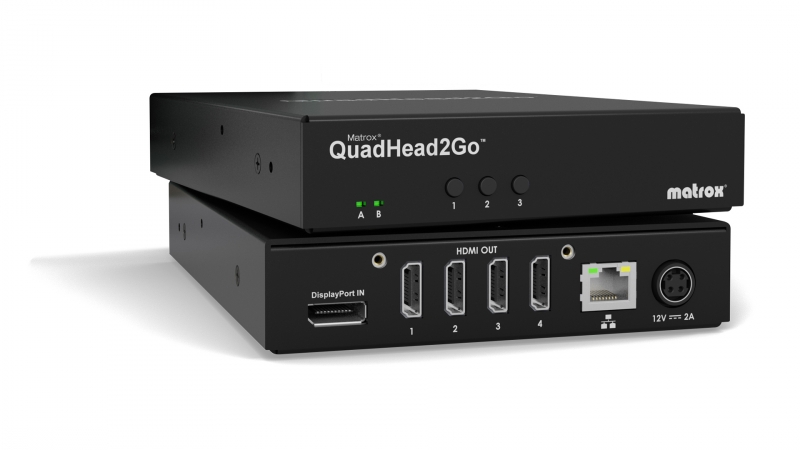

QuadHead2Go Q185 Multi-Monitor Controller Appliance

Matrox QuadHead2Go Series

QuadHead2Go Q185 Multi-Monitor Controller Appliance

Matrox QuadHead2Go Series

Scalable. Flexible. Easy-to-Deploy Video Walls.

Capable of driving four displays from one signal, Matrox® QuadHead2Go™ Series multi-monitor controller appliances provide complete video wall scalability and flexibility. The system-independent QuadHead2Go appliance is designed to power any video wall configuration of any possible dimension, from any video source—reliably delivering flawless image quality across expansive video wall displays. QuadHead2Go’s on-device buttons and pre-set configurations ensure an out-of-the-box, trouble-free installation experience.

Complete Flexibility

  • Drive up to four pristine quality Full HD displays from a single video signal—of up to 4Kp60 and 8Kx8K—at full RGB 8:8:8 and YUV 4:4:4 color support.
  • Expand to a video wall configuration of any size by using multiple QuadHead2Go units.
  • Create a video wall from any content source, including professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.
  • Design modern and artistic video wall layouts with free rein—each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.
  • Fashion countless forms of setups—arrange displays in 4×1, 1×4, 2×2, 3×1, 1×3, 2×1, or 1×2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations—and combine/scale them to create large-scale, captivating video walls.

HDCP compliant

  • Capture and display HDCP-protected content with QuadHead2Go multi-monitor controllers.

Proven video wall ecosystem

  • Drive up to 64 1920x1080p60 displays by pairing multiple QuadHead2Go controllers with Matrox D-Series graphics cards.
  • Create artistic video walls by pairing QuadHead2Go controllers with D-Series graphics cards.

Ease of deployment

  • Simplify installation with guaranteed out-of-the-box plug and play when using the default configuration of 2×2 in landscape—set up without installing software or even connecting a video source.
  • Design any custom configuration/array with the intuitive Matrox PowerWall software.
  • Ensure compatibility with professional-grade graphics cards and media players with native DisplayPort™ 1.2 support.
  • Eliminate physical handling by controlling and updating the units remotely from anywhere on the network (LAN).
  • Select and set the display layout by cycling through pre-set configurations* using an on-device button—there is no need to install software when using a pre-set configuration.
  • Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.

As easy as 1-2-3

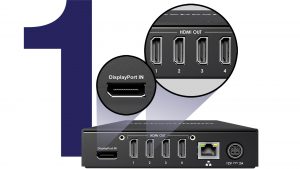

Connect using DP 1.2 input and 4 HDMI outputs

Configure using on-device-buttons or the Matrox PowerWall software

Deploy

Dynamic and scalable configurations

Fine-tune Bezels for Seamless Image Displays

Fine-tune bezels for seamless image displays

QuadHead2Go Appliance Rotate and Position Outputs

Rotate and position outputs independently from one another

Use Multiple QuadHead2Go Appliances to Create Large-Scale Video Wall Solutions

Use multiple QuadHead2Go cards to easily create and/or expand large-scale video wall solutions

Software and API/SDK

Matrox PowerWall

Matrox PowerWall is an advanced yet easy-to-use management software included with Matrox QuadHead2Go that makes video wall deployments simple and efficient.

Key features

  • Position, upscale, downscale, rotate, clone, crop outputs as desired
  • Create, edit, save, or delete configurations and/or images at will
  • Work online or in offline mode
  • Control and fine-tune bezels using the pre-set images available on the products
  • Locate devices effortlessly over the network using DHCP or Static IP address
  • Operate on Microsoft® Windows® 10

Customize applications

  • Develop custom functions and applications using the QuadHead2Go REST API.
  • Rebrand the Matrox PowerWall software for quick and complete integration by OEMs using the white-label solutions.
