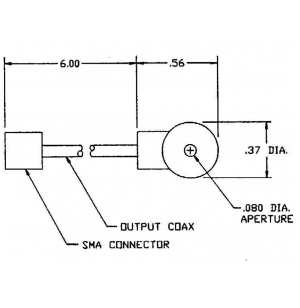

Prodyn Current Transducers IP2 HF Series
The IP-2 HF series is a range of high frequency current sensors that are used to measure current on small conductors that may be passed through the aperture. Their small size minimizes the physical constraints of usual measurements and the choice of three sensitivities allows for a variety of outputs.
A short single-ended output with an SMA connector is standard but all models can also be ordered with a differential output.
| IP-2-1 | IP-2-5 | IP-2-10 | |
| Freq. Range(3 dB pts): | 100 kHz-1.3 GHz | 125 kHz-800 MHz | 500 kHz-1 GHz |
| Transfer Impedance(Zt): | 1 Ω | 5 Ω | 10 Ω |
| Current Handling Cap.: | 0.8 amps (RMS) | 0.8 amps (RMS) | 0.8 amps (RMS) |
| Output Impedance: | 50 Ω | 50 Ω | 50 Ω |
| Standard Connector.: | SMA | SMA | SMA |
