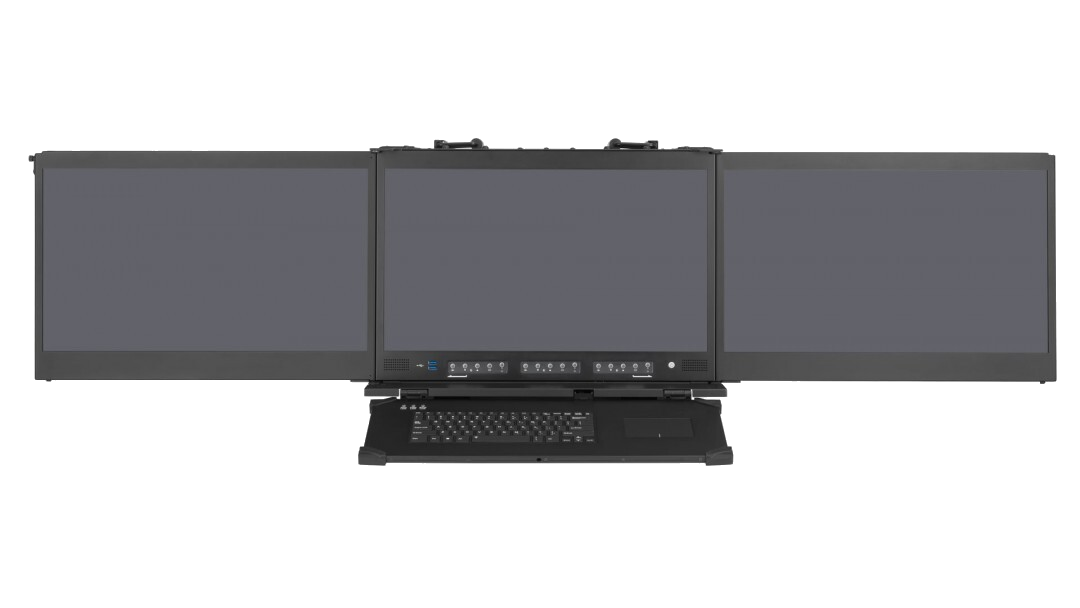

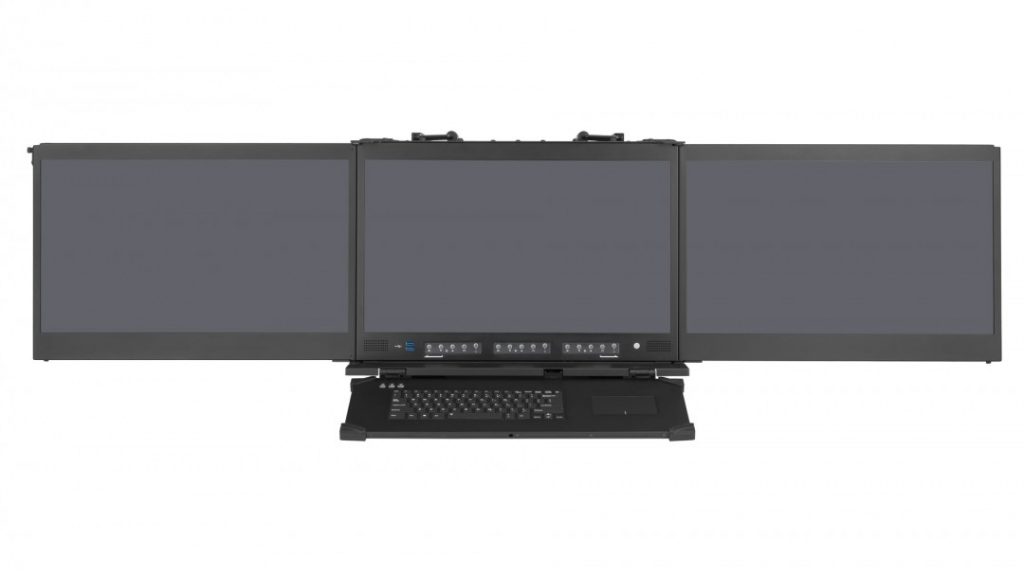

MegaPAC L3
Triple 24" HD displays in a high performance, rugged portable setup. Designed as a flexible-use unit with 7x full-length expansion slots configurable for the most demanding applications.

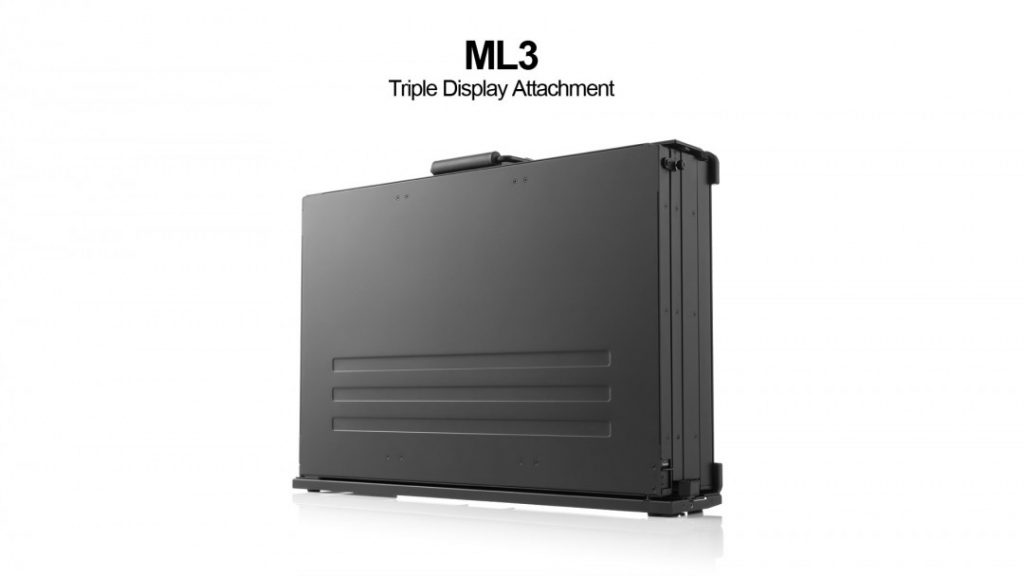

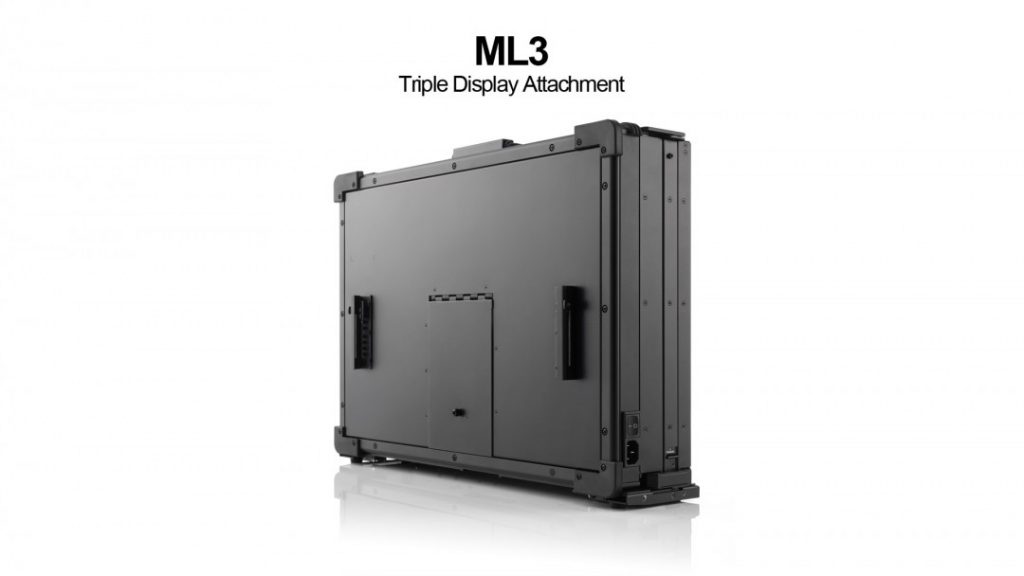

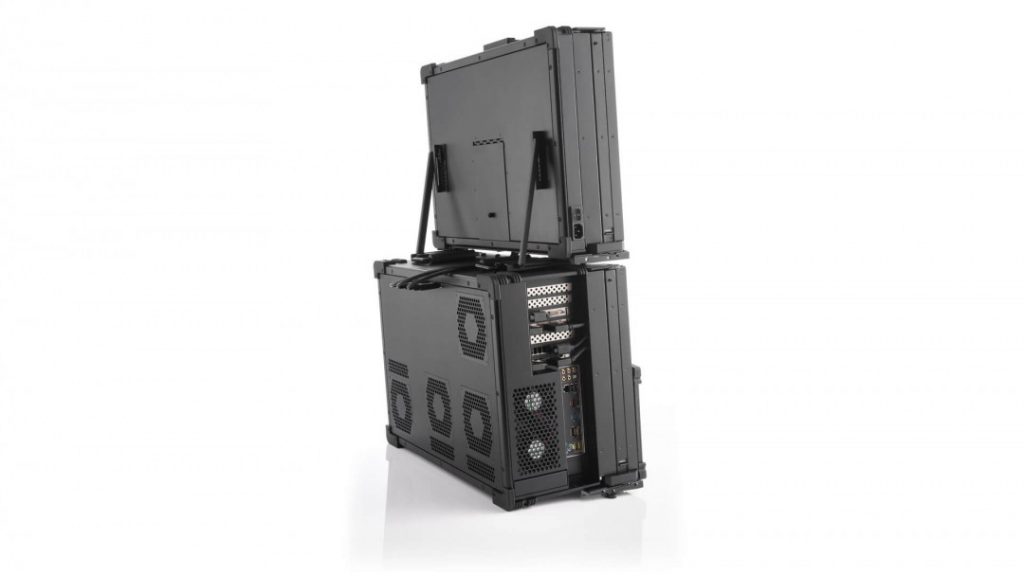

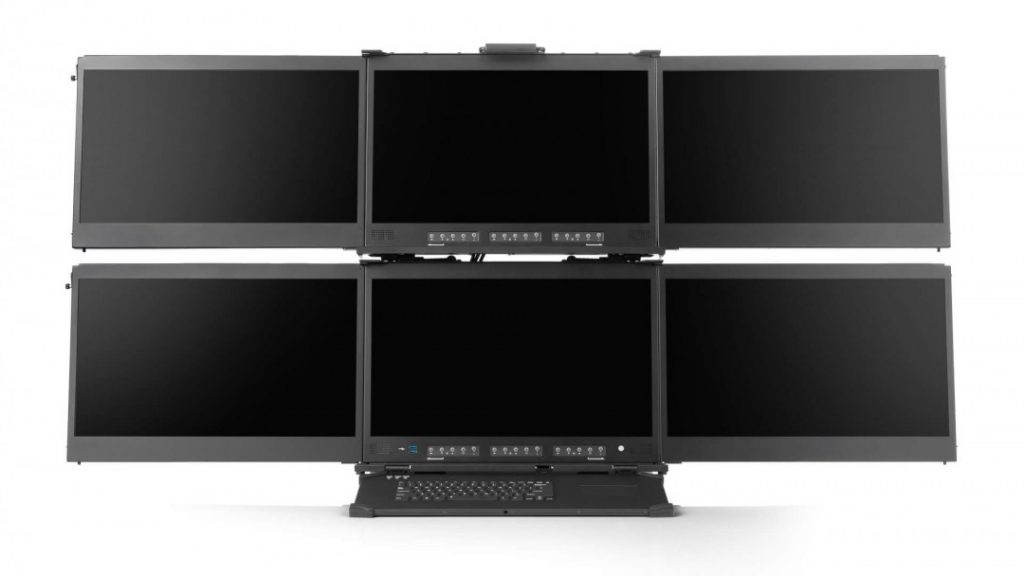

The MegaPAC L3 can also add an additional 3 displays totaling up to 6 displays by attaching our ML3 as shown in the pictures.
TRIPLE ULTRA HD DISPLAYS
The MegaPAC L3 comes with 3x Ultra HD displays for a massive combined 11620×6480 resolution (3840 x 2160 per display). See hidden and subtle details with these three beautiful and massive displays.
MULTIFACETED SYSTEM
While the triple 4K displays are a key feature for the MegaPAC L3, it also comes with an impressive 7 full-length expansion slots. It can have up to 1TB of memory and 150 TB of storage. The MegaPAC L3 can be used in any situation for any applications.
TRIPLE LARGE DISPLAY HIGH PERFORMANCE RUGGED PORTABLE
The FlexPAC III is a classic system at ACME Portable. With its power and displays, it was a popular mobile command control center used in emergency situations, simulations, and more. Nevertheless, there has been an increasing demand for a stronger system. As a result, now equipped with ultra HD resolutions, we have created the MegaPAC L3!
The MegaPAC L3 takes all the popular aspects of the FlexPAC III and makes it even bigger and better.
TECHNICAL SPECIFICATIONS
| PRODUCT | MEGAPAC L3 |
|---|---|
| DISPLAY | TRIPLE 23.8″ UHD 3840X2160 – 350 NITS (OPTIONAL: 800 NITS – 650 NITS WITH TOUGHSCREEN), OR TRIPLE 23.8″ FULL HD 1920X1080 – 250 NITS (OPTIONAL: 1000 NITS – 800 NITS WITH TOUCHSCREEN), OR TRIPLE 23.8″ WUXGA 1920X1200 – 250 NITS (OPTIONAL: 1000 NITS) |
| CPU | LATEST SINGLE/DUAL INTEL® XEON, INTEL® CORE, AMD RYZEN™, OR AMD EPYC™ |
| MEMORY | UP TO 1TB DDR4 RAM |
| GRAPHICS CARD | INTEGRATED HD GRAPHIC CONTROLLER OR APPLICATION-SPECIFIC GRAPHIC CONTROLLER |
| EXPANSION SLOTS | UP TO 7 |
| STORAGE | UP TO 150TB (REMOVABLE OPTION AVAILABLE) |
| POWER SUPPLY | 850W 100/240VAC, 50/60HZ AUTO-SWITCHING 80 PLUS GOLD RATED OPTIONAL: 1000W OR 1200W 100/240VAC, 50/60HZ AUTO-SWITCHING 80 PLUS PLATINUM RATED (WITH 10 YEAR WARRANTY) OPTIONAL: 28VDC POWER SUPPLY |
| DIMENSIONS | HEIGHT: 16.39″ (416MM), WIDTH: 22.96″ (583MM), DEPTH: 11.98″ (304MM) |
| WEIGHT | 52.82 LBS (24KG) |
| TOUCH OPTION | TOUCHSCREEN OPTIONAL |
| WIFI / BLUETOOTH | WIFI AND BLUETOOTH OPTIONAL |
| RAID | RAID 0/1/5/10 |
| KEYBOARD & MOUSE | 105-KEY KEYBOARD WITH INTEGRATED TOUCHPAD. AVAILABLE IN A VARIETY OF LANGUAGES. |
| TRANSIT CASE | INCLUDES PADDED ROLLING TRANSIT CASE OPTIONAL :HARDENED CASE AVAILABLE |
| QUALITY | ISO 9001 |
| REGULATION | CE, FCC, ROHS, CCC |
| WARRANTY | 1 YEAR PARTS AND LABOR |
| CUSTOMIZATION | MILITARY CONNECTORS, CUSTOM I/O, TRACKBALL, DUST FILTER, AND MORE. |
