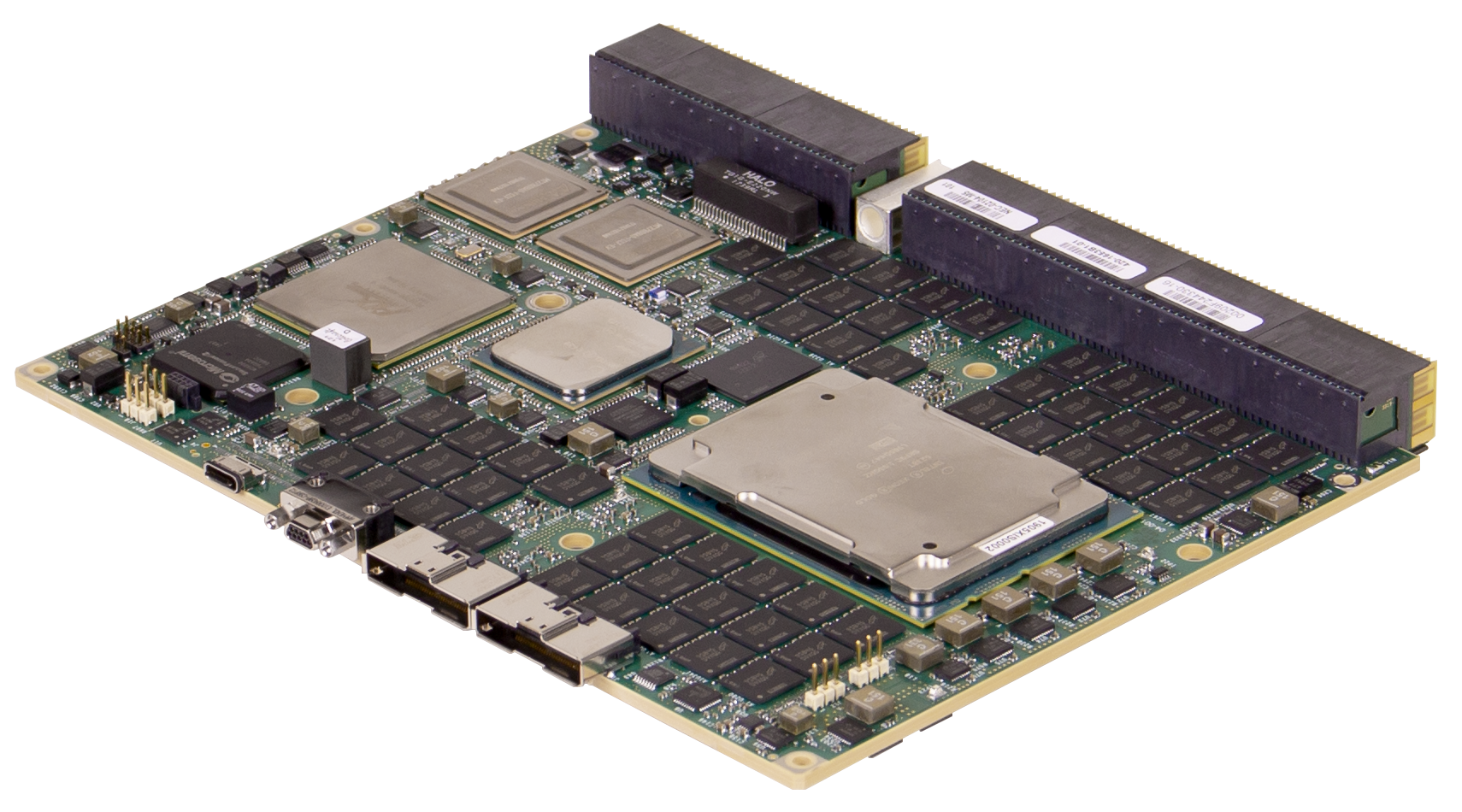

HDS6605 Multiprocessing Board

6U OpenVPX Xeon (Cascade Lake) multiprocessing server blade

Secure and Powerful - Mercury 5th Gen Intel Xeon Data Center Server Blade

HDS6605 Multiprocessing Board

The EnsembleSeries HDS6605 is a 6U OpenVPX server blade powered by Intel Scalable Xeon-SP processor (formerly codenamed “Cascade Lake”), 40Gb/s or 100Gb/s Ethernet switch fabrics. This powerful server blade is available with MOTS+ technology for extreme environmental protection and BuiltSECURE proven built-in systems security engineering for deployment anywhere, and is SOSA-aligned for maximum interoperability and technology reuse.

The HDS6605 is the industry’s first OpenVPX server blade powered by Intel second generation Xeon Scalable processors (Cascade Lake) and built-in AI acceleration. A truly composable processing architecture that delivers data center processing capability to the edge.


  • Intel 1.9GHz, 22-core Xeon-SP Scalable (Cascade Lake) server-class processor
  • 96GB-192GB DDR4-2666 SDRAM per blade
  • 40Gb/s – 100Gb/s Ethernet high speed switch fabrics
  • Gen3 PCIe co-processing and I/O expansion plane communications
  • Optional BuiltSECURE systems security engineering
  • Optional MOTS+ extreme environmental protection
  • SOSA aligned and VITA 65 compliant
