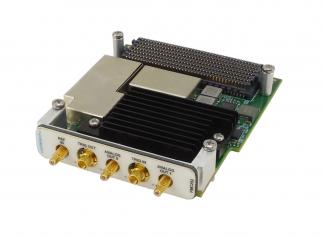

FMC252
Dual Channel DC to 9GHz Vector Signal Generator based on AD9166 FMC+
- FMC+ module per VITA57.4
- Dual Analog Devices AD9166
- Fully synchronize dual DAC
- 16-bit with update rate of 12GSPS
The FMC252 is an FMC+ per VITA 57.4 specification. The board has a dual channel DAC based on Analog Device AD9166. The two DAC are synchronized with respect to the RF clock inputs.
The AD9166 features:
- DC to 9GHz Vector Signal Generator
- Up to 4dBm output power
- 16-bit with core update rate up to 12GSPS
- DC to 2.5GHz in baseband mode
- DDS as digital upconverter
The module has Trig In/Out as well as clock input for external synchronizing.
See VadaTech ADI Offerings for the advantages of using our products during application development.
Key Features
Benefits
- High dynamic range for versatility
- Ideal for Broadband communications systems, Wireless infrastructure, LTE, ATE, RADAR/Jamming
- Compatible with a broad range of Xilinx- and Intel/Altera-based FMC carriers from VadaTech and others
- Electrical, mechanical, software, and system-level expertise in house
- Full system supply from industry leader
- AS9100 and ISO9001 certified company
