D1450 Quad HDMI Graphics Card

Matrox D-Series

D1450 Quad HDMI Graphics Card

Matrox D-Series

Video walls that are worth the view

Purpose-built to drive next-generation video walls, the Matrox® D-Series D1450 quad-monitor graphics card powers up to four synchronized 4Kp60 displays from a single graphics board. A full-height, Gen 3 PCIe® x16 card with four native HDMI® connectors, D1450 delivers smooth video playback and exceptional graphics performance for a wide range of commercial and critical 24/7 video wall applications, including control rooms, enterprises, industries, government, military, pro AV, digital signage, security, and more. As part of the Matrox video wall portfolio, D1450 also offers a complete range of video wall software, APIs, SDKs, and libraries, allowing OEMs, system integrators, AV installers, and developers to create custom control functions and applications for any video wall installation.

Advanced Capabilities

  • Drive up to four ultra high resolution displays
  • Experience smooth video playback and graphics performance with 4 GB of graphics memory.
  • Drive up to 16 synchronized displays and reduce tearing by framelocking up to four D-Series cards together using board-to-board framelock cables – also save slot space as a separate card is not needed for the synchronization.
  • Run the latest professional applications with its support for Microsoft® DirectX® 12 and OpenGL®.
  • Prevent loose cabling with secure connectors.

HDCP compliant

  • Display HDCP protected content with D-Series graphics cards.
  • Capture and display of HDCP-protected content on video walls by coupling D-Series with Matrox Mura IPX capture cards.

Proven video wall ecosystem

  • Add best-in-class, multi-channel 4K capture, encode, decode, and display capabilities by combining D-Series with Matrox Mura IPX capture cards.
  • Drive up to 64 1920x1080p60 displays by pairing D-Series with multiple Matrox QuadHead2Go™multi-monitor controllers
  • Create artistic video walls by pairing D-Series with multiple QuadHead2Go multi-monitor controllers.

Custom control

  • Customize your setup with the easy-to-use Matrox PowerDesk™ desktop management software.
  • Deploy tailor-made display configurations including stretched or independent desktops, clone mode, pivot, bezel management, edge overlap, and more.
  • Easily manage your video walls with the intuitive Matrox MuraControl™ software.
  • Develop custom functions and/or personalized applications using the Matrox video wall APIs, SDKs, and libraries.

Validated platforms

Matrox video wall products are supported in numerous non-validated, COTS motherboards and systems but a select few of these solutions have been thoroughly tested, verified, and validated by Matrox. Choosing a validated platform guarantees a high-quality solution to drive your display wall systems. Matrox fanless video wall products are only supported in validated platforms. Matrox is constantly reviewing new systems and looking to validate new platforms across multiple price points.

Matrox PowerDesk

he robust, field-proven Matrox PowerDesk desktop management software for Windows lets you easily configure and manage multi-display setups. It offers professional clients a comprehensive set of tools to deploy and control a variety of display configurations.

Matrox MuraControl

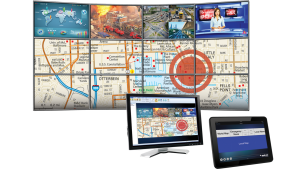

Matrox MuraControl is a low-cost, premium performance, video wall management software that provides an easy and intuitive way to manage your Matrox-based video wall, multiviewer, or personal video wall locally or remotely. Available as a feature-rich, single-license software for Microsoft® Windows® or as a free, lighter version app for iPad™ with drag & drop functionality, it can be used to create and manage layouts offline or in real time.
  1. Easily manage inbound and outbound AV streams
  2. Create, save, rename, copy, export, import and delete layouts/presets
  3. Window transparency and color-keying functions
  4. Robust upgrade and software-support program
  5. Position, scale, clone, crop, frame, and label input windows
  6. Apply color-correction, multi-lingual text overlay, and de-interlacing
