AIR-021
AI Inference System Based on NVIDIA® Jetson Orin™ NX/ Orin™ Nano

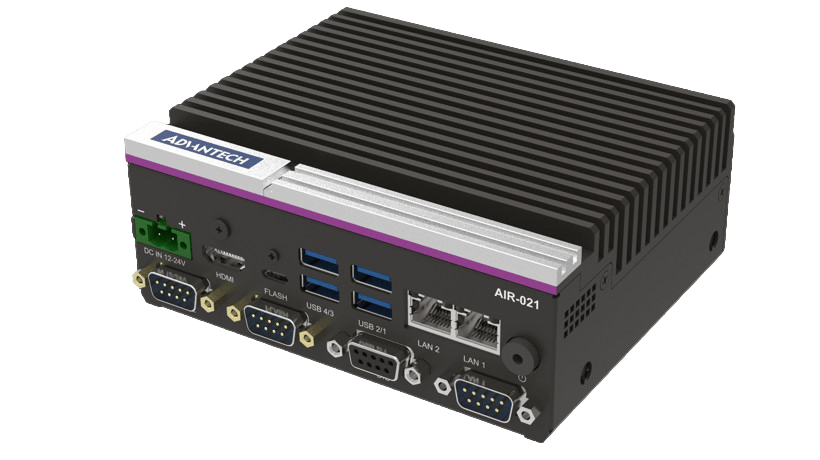

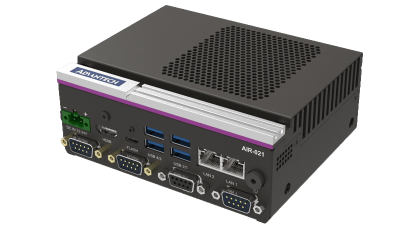

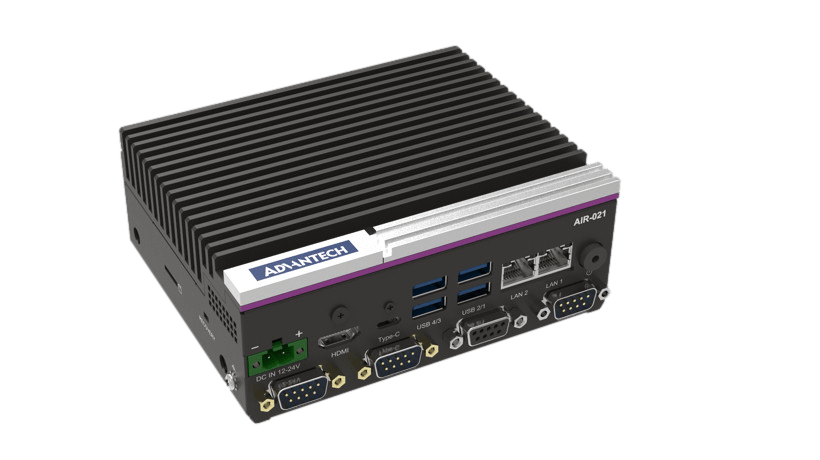

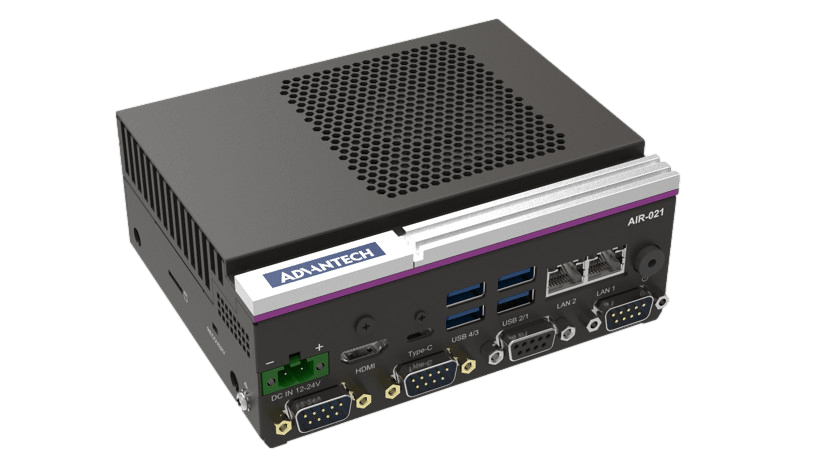

Advantech AIR-021 – AI Inference System Based on NVIDIA® Jetson Orin™ NX/Nano
- Compact AI box up to 157 TOPS AI computing
- NVIDIA Jetson Orin NX 16GB/8GB and Orin Nano 8GB Modules
- 12-24V wide power and extended operating temperature supported
- Multiple I/O ports: LAN, DIO, COM, CANBus, USB 3.2
- Versatile expansions with M.2 B/E/M key and SD card support
- Support Linux Ubuntu OS 22.04 and JetPack 6.2 SDK
The AIR-021 is a compact, high-performance edge AI inference system powered by NVIDIA Jetson Orin NX and Nano modules. Delivering up to 157 TOPS of AI performance, it features robust I/O and versatile expansion options, making it ideal for performance-optimized, multi-model edge AI applications.
Specifications
| Processor System | CPU | 8-Core / 6-Core ARM Cortex-A78AE v8.2 |
|---|---|---|
| GPU | NVIDIA Ampere architecture with 32 Tensor Cores | |
| AI Performance | Up to 157 TOPS (Super Mode) | |
| Memory | Capacity | 16GB / 8GB 128-bit LPDDR5 |
| Network | LAN Ports | 1x 1GbE LAN, 1x 2.5GbE LAN |
| I/O Interfaces | USB | 4x USB 3.2 Gen2 Type A, 1x USB Type C |
| Display | 1x HDMI 2.1 TMDS | |
| Expansion | Storage | 1x M.2 2280 (PCIe x4), 1x M.2 2242 (PCIe x1) |
| Environment | Operating Temp. | -20 ~ 50 °C (Orin NX) |
| Mechanical | Dimensions | 138 x 110 x 57 mm |
