Z14I Laptop
As Strong As It Gets. Boundless Customization.
Combined with the latest 8th Generation Intel® Core™ processor and graphics capabilities, the Z14I can handle data intensive tasks at speed. It has been built to withstand even the harshest of environments. Its IP65 rating, protecting against dust and water ingress, MIL-STD 810G certification and resistance up to six feet drop make the Z14I more rugged than other comparable devices on the market. The device has also been tested for explosive atmosphere, solar radiation, salt fog, and fungus resistance, which goes beyond testing standards compared to other rugged devices in its class.
The Z14I includes Durabook’s proprietary DynaVue® technology and high-definition multi-touch screen, offering the highest contrast ratio, which helps to eliminate internal reflections that enhance viewing clarity even from different angles, and in bright sunshine or low light conditions.

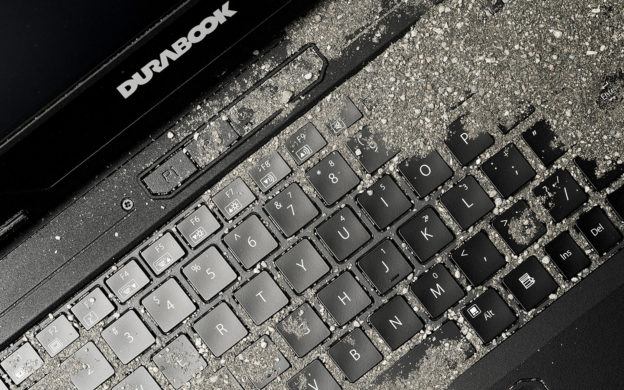

BUILT FOR ALL ENVIRONMENTS
With invincible mechanical design and rigorous component selection, the Z14I can adapt to any environments flawlessly. It is MIL-STD-810G certified with additional items such as explosive atmosphere, solar radiation, salt fog, and fungus resistance; it is also certified for IP 65 and a 6 feet drop guarantee. What’s more is that it has MIL-STD-461G and ANSI-C1D2 certifications which makes it more rugged than ever.

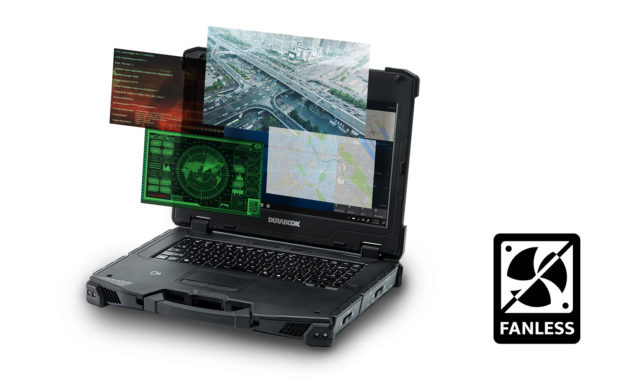

ENHANCED PERFORMANCE
Z14I is equipped with Intel® 8th generation CPU featuring UHD 620 graphics processor, and performance is enhanced to cater for congested data processing. With an ultra high-speed data transmitting capability of Intel® Dual Band Wireless AC 9260 and Bluetooth® V5.0, all data can be instantly synchronized and fed back to the data center without any interruptions.
COMPREHENSIVELY CUSTOMIZED
A smart device that offers you different types of interfaces with various selections of add-ons, which includes two RJ-45 ports, two RS-232 serial ports, ExpressCard 54 and PCMCIA Type II slots. In addition, USB options offer all capabilities of Type-C to Type-A, or USB 3.1 to USB 2.0.
For some customers, specific needs can be catered by our flexible customization package upon purchase.
VIEWING AT ITS BEST
The FullHD 1080p widescreen display alone with DynaVue® technology reveals every detail of visual image at a glance. Not only it has the brightness of up to 1000 nits but also the light-filtering technology makes the Z14I the best rugged laptop with highest contrast ratio (CR), which helps to eliminate internal reflections that enhances viewing clarity when viewed at different angles.

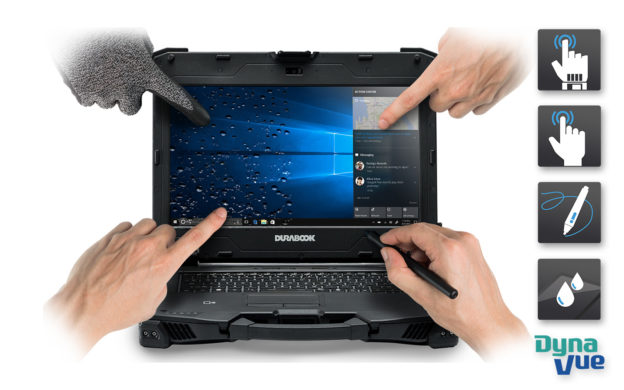

OPTIMIZED TOUCH TECHNOLOGY
The 10-point capacitive multi-touch panel has four touch modes (Glove, Stylus, Water, Finger), this device is optimized for applications of both indoor and outdoor usage; enhancing the device’s usability regardless of work conditions.

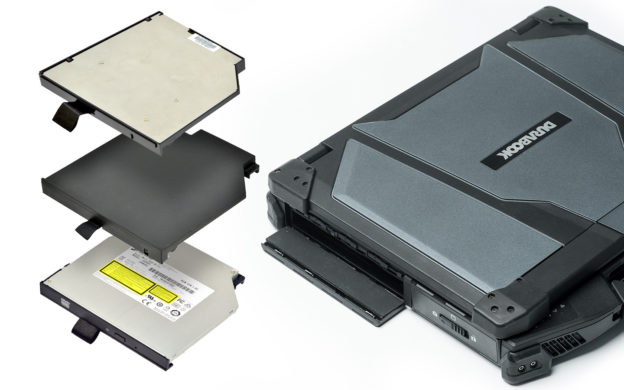

EASY SETUP
The Z14I device provides a media bay for several setup options; such as, an optical disk drive, a second battery or a second SSD storage to select from.

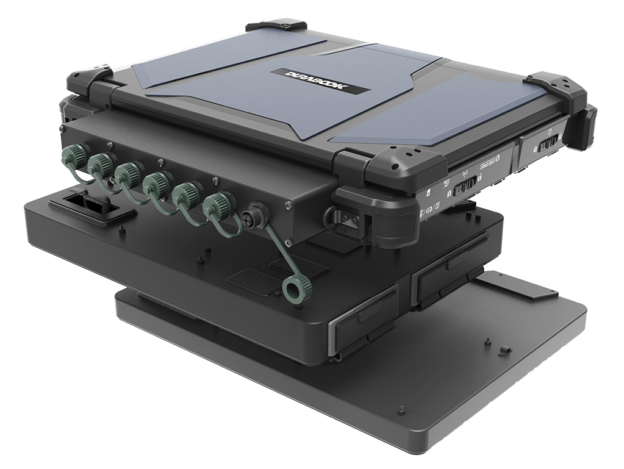

ENDLESS CUSTOMIZATION POSSIBILITIES
The expansion box is one of the most powerful enhancement capability of the Z14I. From a working station to a working server, the expansion box provides either two slots of PCIe interface for various solution builds, a dedicated graphics card, military-grade connectors or storage security extension with RAID 0/1/5/10 configurations. It could also be field installed with simple and easy guideline to become a powerful mobile workstation or an ultimate solution for specific tasks.
The unit’s endless configuration possibilities assure users of the power, flexibility, functionality, and data security that they need for their specific applications
Z14I LAPTOP ANATOMY
FRONT
REAR

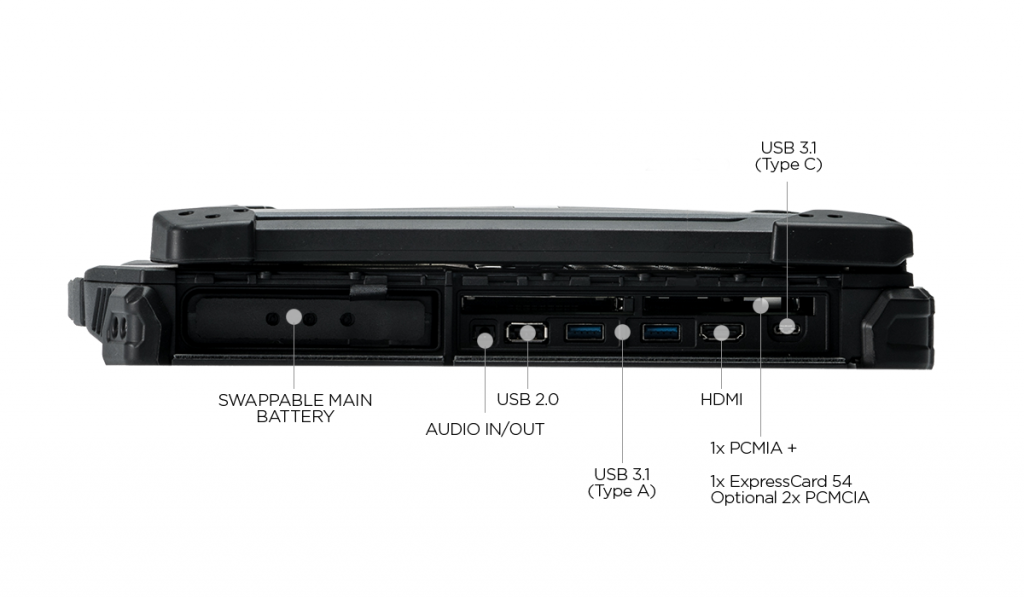

RIGHT
LEFT
Specifications
Rugged Specs
| MIL-STD-810G Certified | 6′ drop 26 faces, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance |
| Electromagnetic | MIL-STD 461G |
| Water and Dust Resistant | IP 65 certified |
| Hazardous Environment | ANSI C1D2 12.12.01 |
Tech Specs
| Display | 14.0” FHD (1920 x1080) 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus programmable function |
| Operating System | Windows® 10 Pro |
| Processors | Intel® Core™ i7-8650U vPro™ (8th Gen) 1.9GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache Intel® Core™ i7-8550U (8th Gen) 1.8GHz processor with Turbo Boost Technology up to 4.0GHz, 8MB cache Intel® Core™ i5-8350U vPro™ (8th Gen) 1.7GHz processor with Turbo Boost Technology up to 3.6GHz, 6MB cache Intel® Core™ i5-8250U (8th Gen) 1.6GHz processor with Turbo Boost Technology up to 3.4GHz, 6MB cache |
| Memory | 2 slots 8GB up to 32GB (2400MHz DDR4) |
| Storage | 256GB SSD Optional 512GB / 1TB SSD Optional OPAL 2.0 SSD Optional 2nd storage (SSD)1 |
| Graphics | Intel® UHD Graphics 620 |
| Camera | Integrated 2.0 MP web-cam with shutter design |
| Audio | Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |
| Media Bay (One Option Only) | Optional DVD super multi Optional 2nd battery Optional 2nd storage (SSD)1 |
| I/O Ports | USB 3.1 (type A) x 2 USB 3.1 (type C) x 1 USB 2.0 (type A) x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 10/100/1000 Ethernet (RJ-45) x 2 VGA port (D-sub,15-pin) x 1 DP port x 1 HDMI port (type A) x 1 Serial port (RS-232 : D-sub, 9-pin) x 2 Docking connector (41-pin Pogo) x 1 SIM card x 1 Smart card reader x 1 DC-In jack x 1 PCMCIA Type II x1 ExpressCard 54 x1 or PCMCIA Type II x1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Keyboard & Pointing Device | 2 user-definable keys (P1/P2) RF signal slide-switch Standard membrane keyboard with LED backlight |
| Communications | Integrated 10/100/1000 Ethernet Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac) Bluetooth® V5.0 Optional dedicated GPS module (UBLOX-NEO-M8N) Optional 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Security | Intel® vProTM Technology (per CPU options) TPM 2.0 NIST BIOS compliant Easy removable SSD Smart card reader default Stealth mode Night vision mode Kensington lock Optional fingerprint scanner Optional HF/LF RFID reader1 |
| Power | AC adapter : 100-240V, 50Hz-60Hz, 90W Main battery Li-Ion, 10.8V, 7800mAh, 16 hours2 Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2 Optional bridge battery : 5 minutes swap time3 |
| Dimension & Weight | 356 mm (L) x 280 mm (W) x 50 mm (H) 3.6 kg4 |
| Warranty | 3-year limited warranty standard |
- Contact your sales representative for feature availability
- Tested using the MobileMark 2014 battery life benchmark. Results may vary
under different situations including hardware configuration, software, operating
conditions, power management settings and other factors. - The system will stay operating within 300 seconds when user swaps the battery.
- Weight varies with options.
