X6a-AGX
NVIDIA® Jetson Orin Edge AI Compact Fanless Embedded System

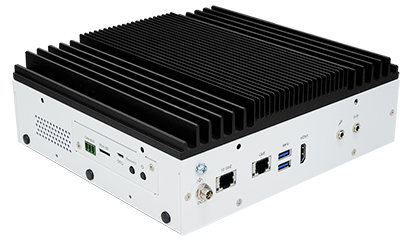

DFI X6a-AGX – Fanless Edge AI System with NVIDIA® Jetson Orin AGX™
- Powered by NVIDIA® Jetson Orin AGX™ 32GB/64GB modules
- Up to 275 TOPS of AI performance for advanced edge inference

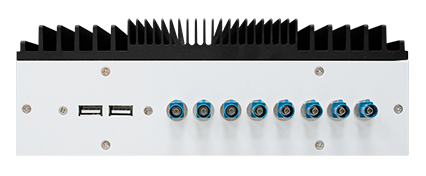

- Optional 8 x GMSL2 Camera Interface and Video Capture (SDI/HDMI)

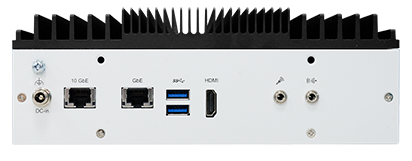

- Rich I/O: 10GbE LAN, 1GbE LAN, CAN Bus, and HDMI
- USB Connectivity: 2x USB 3.2 Gen1, 2x USB 2.0, 1x USB Type B (OTG)
- Wide Operating Temperature: -20°C to 60°C
- Wide Range DC Power Input: 12~54V DC
The DFI X6a-AGX is a rugged, fanless embedded system engineered to deliver top-tier AI performance at the edge. Utilizing the powerful NVIDIA® Jetson Orin AGX™ module, it provides up to 275 TOPS, making it ideal for autonomous machines, robotics, and advanced video analytics. Its extensive I/O, including 10GbE networking, optional 8x GMSL2 camera support, and a robust -20°C to 60°C operating temperature range, ensures reliable deployment in demanding industrial and mobile applications.
Specifications Summary
| Processor System | Module | NVIDIA® Jetson Orin AGX™ Industrial / 64GB / 32GB |
|---|---|---|
| CPU | 8-core or 12-core Arm® Cortex®-A78AE v8.2 64-bit | |
| AI Performance | Up to 275 TOPS | |
| Memory & Storage | Memory | 32GB or 64GB 256-bit LPDDR5 |
| Storage | 1x M.2 2242/2280 M-Key (NVMe), 1x MicroSD | |
| Network & Vision | LAN Ports | 1x 10GbE RJ-45, 1x GbE RJ-45 |
| Camera / Video In | Optional 8x GMSL2 (MIPI SerDes); Optional Video Capture: 1x SDI, 1x HDMI | |
| I/O Interfaces | USB | 2x USB 3.2 Gen1, 2x USB 2.0, 1x USB Type-B (OTG recovery) |
| Display | 1x HDMI | |

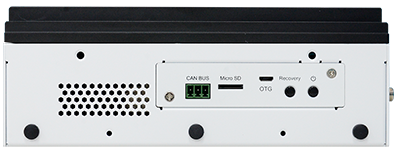

| CAN Bus | 1x CAN Bus (3-pin terminal block with transceiver) | |
| Expansion | Wireless | 1x M.2 E-Key 2230 (Wi-Fi 6E), 1x M.2 B-Key 3042/3052 (4G/5G LTE + Nano SIM) |
| OOB | Optional Out-of-Band (OOB) management support | |
| Power | Input Voltage | 12~54V DC (1x DC Jack with lock) |
| OS Support | Linux | JetPack 6.2 |
| Environment | Operating Temp. | -20°C to 60°C |
| Storage Temp. | -40°C to 85°C | |
| Humidity | 5 ~ 95% RH (non-condensing) | |
| Mechanical | Dimensions | Approx. 221 x 200 x 80 mm |
| Weight | 4.2 kg | |
| Mounting | Wall mount (brackets and screws included) | |
| Certifications | Standards | CE, FCC Class A, RoHS |
