X3-BTS
Compact System with BTL-S/14th/13th/12th Generation Intel® Core™ Processors TDP 65W
DFI X3-BTS – Desktop Box IPC with Intel® Bartlett Lake-S / 14th Gen Intel® Core™ Processors
- Bartlett Lake-S / 14th / 13th / 12th Generation Intel® Core™ processors, TDP up to 65W
- 2x DDR5 5600MHz SODIMM up to 96GB (ECC / Non-ECC)
- Triple displays: 1x DP++ and 2x USB-C DP Alt. Mode
- Configurable dual M.2 NVMe storage with RAID 0/1
- One PCIe x16 slot for a single-slot, low-profile add-on or graphics card (up to 70W TDP)
- Easy integration: supports wallmount or rackmount installation
- Wide operating temperature: -20°C to 50°C
The DFI X3-BTS is a compact desktop box industrial PC built on the Intel® R680E chipset, supporting Intel® Bartlett Lake-S alongside 14th, 13th, and 12th Generation Intel® Core™ processors at up to 65W TDP. It combines dual-channel DDR5 5600MHz memory up to 96GB with ECC support, triple independent display outputs, and configurable dual M.2 NVMe storage with RAID 0/1. A PCIe x16 slot accommodates a low-profile add-on or graphics card up to 70W, while the metal chassis, -20°C to 50°C operating range, and shock and vibration compliance make it suited to demanding industrial and edge computing deployments.
Specifications Summary
| Processor System | CPU | Intel® Bartlett Lake-S Hybrid LGA 1700 and 14th / 13th / 12th Gen Intel® Core™ (LGA 1700), TDP up to 65W |
|---|---|---|
| Chipset | Intel® R680E | |
| BIOS | AMI SPI 256Mbit | |
| Memory | Capacity | 2x 262-pin SODIMM up to 96GB (ECC / Non-ECC), Dual Channel DDR5 5600MHz |
| Graphics | Controller | Intel® UHD Graphics 700 series |
| Display Outputs | 1x DP++, 2x USB-C DP Alt. Mode (triple independent displays) | |
| Storage | M.2 Slots | 2x M.2 2280 M-Key (PCIe Gen4 x4 / SATA and PCIe Gen3 x4 / SATA), 1x M.2 2280 M-Key (PCIe Gen4 x4) |
| RAID | RAID 0/1 | |
| Expansion | PCIe | 1x PCIe x16 slot (PCIe Gen4 x8) — single-slot low-profile add-on or graphics card up to 70W TDP |
| M.2 (Non-Storage) | 1x M.2 2230 E-Key (USB 2.0 / PCIe Gen3 x1), 1x M.2 2242/3042/3052 B-Key (PCIe Gen3 x1, USB 3.2 Gen1 / USB 2.0) | |
| Network | LAN Ports | 2x 2.5GbE RJ-45 (Intel® I226IT, 10/100/1000/2.5G) |

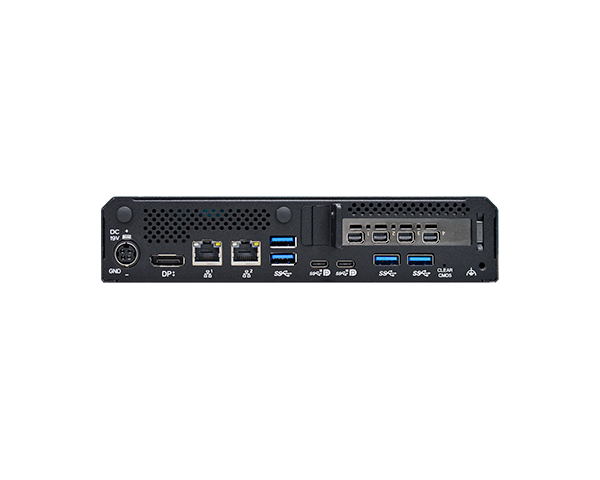

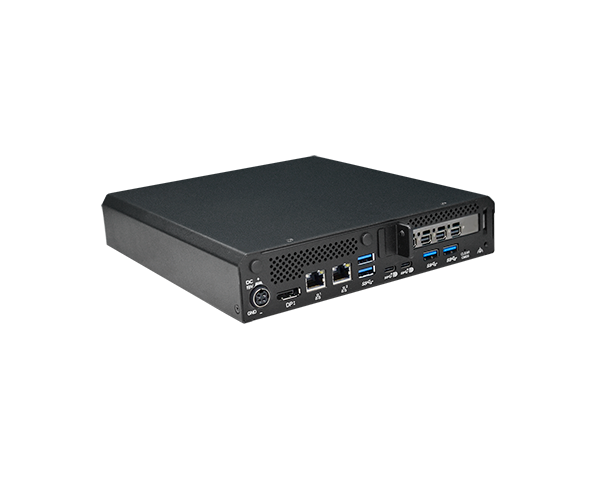

| Rear I/O | USB & Display | 4x USB 3.2 Gen2, 2x USB-C DP Alt. Mode, 1x DP++ |
| Other | 1x grounding post, 1x remote switch, 1x reset button | |

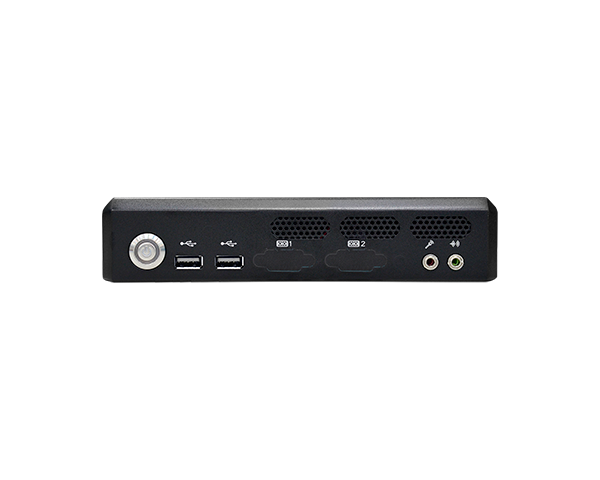

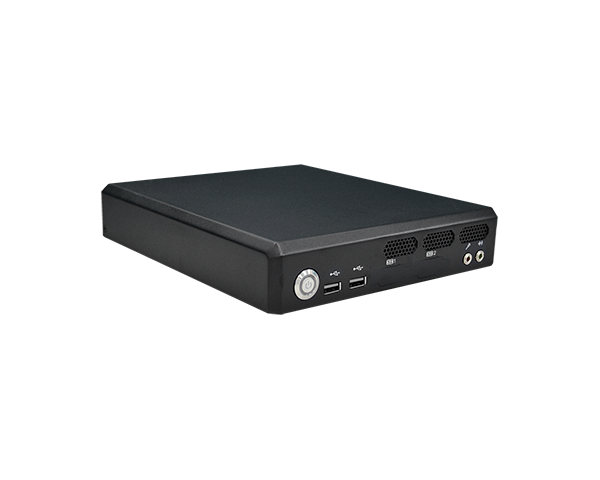

| Front I/O | USB & Audio | 2x USB 2.0, 1x Line-out, 1x Mic-in, 1x power button |
| Serial (Optional) | Optional 2x COM (RS-232/422/485 selectable, default RS-232) | |
| Audio | Codec | Realtek ALC888S-VD2-GR |
| Security | TPM | dTPM 2.0 |
| Power | Input | DC 19V (4-pin mini DIN connector) |
| OS Support | OS | Windows 11 IoT, Linux |
| Environment | Operating Temp. | -20°C ~ 50°C (with wide-temperature M.2 SSD, 0.6 m/s air flow) |
| Storage Temp. / Humidity | -40°C ~ 85°C; 5% ~ 90% RH | |
| Shock & Vibration | Shock | Operating 3G / Non-operating 5G |
| Vibration | Operating: Random 5~500Hz 1G / Non-operating: Sweep Sine 10~500Hz 1.5G | |
| Mechanical | Dimensions (W x H x D) | 200 x 43.2 x 219 mm |
| Construction | Metal chassis | |
| Mounting | Wall mount; rackmount installation supported | |
| Certifications | Standards | CE, FCC Class A, RoHS, UKCA |
