Waterproof – IP67

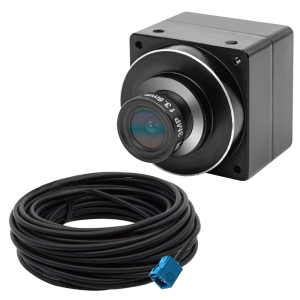

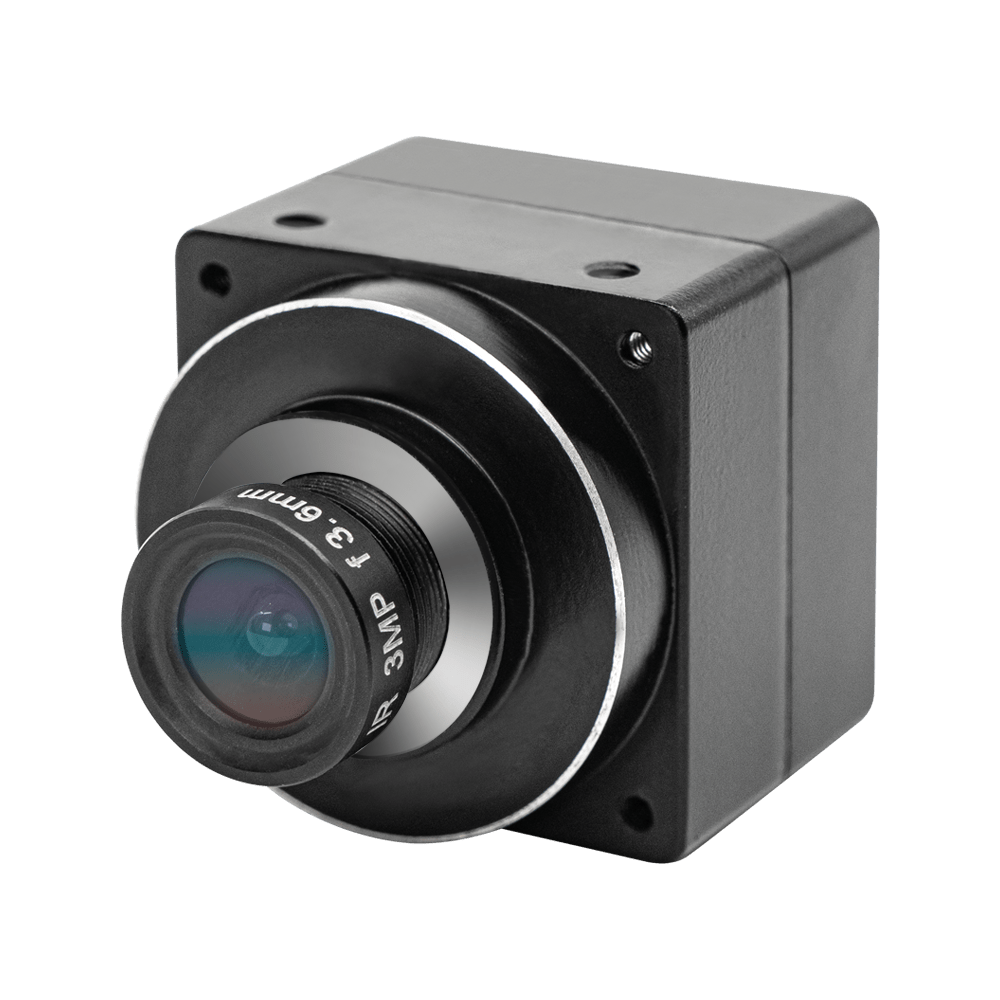

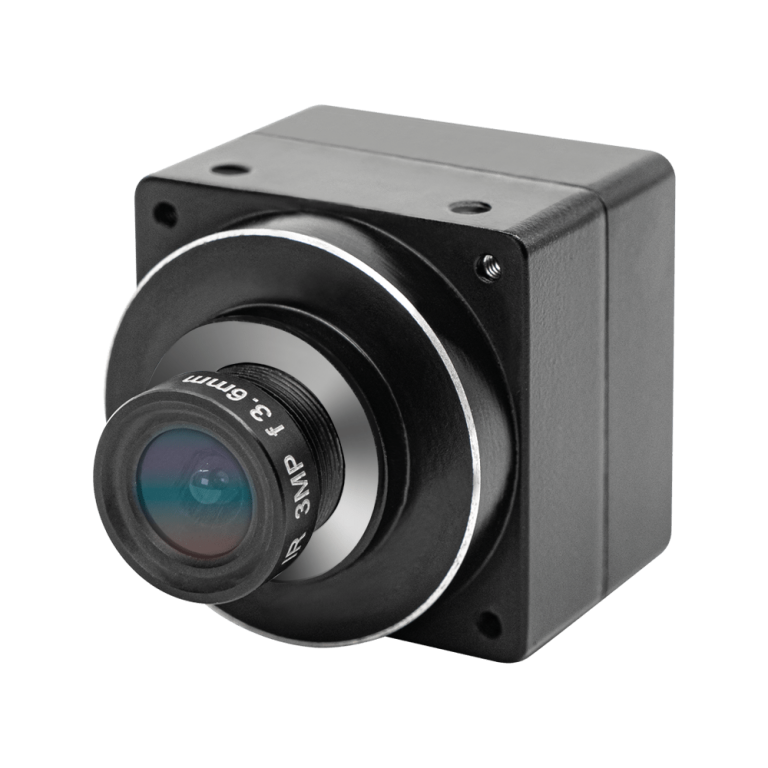

Complete waterproof Vizionlink™ camera for indoor and outdoor applications.


Image lens correction, pixel correction, gamma correction, auto exposure and many more ISP functions. All integrated and available without special software tuning.

Rolling Shutter

Designed for UAV/Drone and robotics the rolling shutter brings you the most economic embedded remote vision.


Interchangeable S-Mount lenses to fit viewing angle, focus point and image correction applications.

Rugged by Nature

Bring Vizionlink™ outdoor in drone / UAV applications, robotics, remote supervision and factory automation or warehousing applications.

Software Platform

Software integration available for NXP i.MX8 Family and Nvidia Jetson.

Power Saving

Low Power camera solution with ease of installation and maintenance.

Automotive Ready

FAKRA interconnect carrying power and signals over a single COAX cable up-to 15 meters away from your embedded system.



Sensor Information
CMOS Sensor Omnivision OV5640
Active Pixels 2592(H) x 1944(V)
Pixel Size 1.4 μm x 1.4 μm
Optical Format 1/4″
Shutter Type Rolling Shutter
Chromaticity Color
Maximum Frame Rate 1080p: 30 fps
1280×960: 45 fps
5MP @ 60 FPS
720p: 60 fps
QSXGA (2592×1944): 15 fps
QVGA (320×240): 120 fps
VGA (640×480): 90 fps
Chief Ray Angle 24 degrees
Bit Depths 8 / 10 bit
