Main Features:
ARM Cortex A7 Fanless Box PC
NXP i.MX6 UltraLite
Memory: 1GB DDR3L.
Storage: eMMC (4GB Default).
1x M.2 slot (USB signals only) and 1x mini-PCIe with Micro-SIM cardslot (USB signals only).
Compatible with TechNexion expansion boards for additional inputs and outputs.
Linux, Android, Ubuntu and Yocto open sourced code.
Core System
| Processor | NXP i.MX6 UL |
| Architecture | ARM Cortex-A7 |
| PMIC | NXP PF3000 |
| Memory | up to 1GB DDR3L |
| Storage | eMMC (4GB Default) |
Connectivity
| Network LAN | 2x Micrel KSZ8081RNBCA Fast Ethernet LAN |
| Power over Ethernet | PoE function 802.3at (optional) |
Expansion Interfaces
| Expansion Slots | 1x M.2 slot (USB signals only)1x mini-PCIe with Micro-SIM cardslot (USB signals only) |

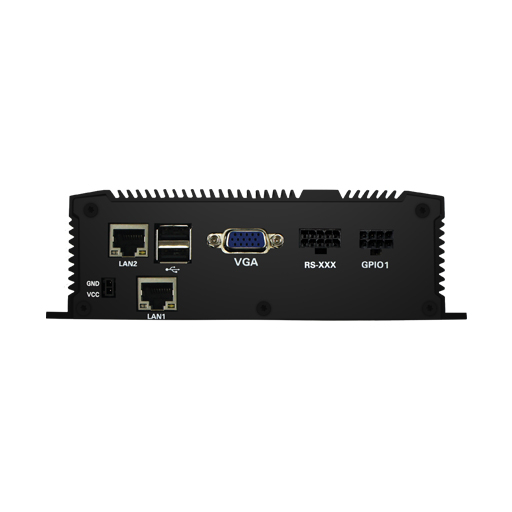

External Connectors
| External Display | 1x VGA 15-pin D-SUB |
| Audio Connectors | 1x 3.5mm jack Microphone1x 3.5mm jack Stereo Audio in1x 3.5mm jack Stereo Audio out |
| Network | 2x RJ45 |
| USB | 1x USB 2.0 OTG (Type-C)2x USB 2.0 Host |
| Serial | 2x RS-232 |
| GPIO | 4x GPIO |
| Buttons | 1x Boot Select1x Reset |
| Indicators | 4x Programmable LED’s |
| SIM Cardslot | 1x Micro-SIM cardslot |
| SD Cardslot | 1x microSD cardslot |
Sensors
| RTC | maxim integrated DS1337+with backup Battery |
Power Specifications
| Power Input | Available with 12VPower over Ethernet or 8-36V (wide power input) |
| Power Over Ethernet | PoE function 802.3at (optional) |
| Power Connector | 2-pin Micro-Fit 3.0 |
| Power Consumption | Depending on Configuration |
Operation Systems
| Standard Support | LinuxYoctoUbuntu |
| Extended Support | Commercial Linux |
Environmental and Mechanical
| Enclosure Material | Anodized Aluminium |
| Dimensions | 168 (W) x 109 (H) x 55 (D) mm |
| Weight | 705 grams |
| Operation Temperature | Commercial: 0° to +50° C |
| Relative Humidity | 10 to 90 % |
| MTBF | 50 000 Hours |
| Shock | 30G half-sine 11 ms duration |
| Vibration | 3 Grms random 5-500Hz hr/axis |
Certification and Compliance
| Certification | Compliant with CE / FCC / RoHS / REACH directives |
Modular Expansion Options
| Power Expansion Module | TXB-P1-12V-LAN1 (12V 3A)TXB-P1-1030V-LAN1 (8-36V 5A)TXB-P1-12V-POE1 (12V 3A) or (PoE 802.3at) |
| I/O Expansion Module | TXB-I2-GS2-GC2-GG8 (Galvanic Isolated 2x RS-232 + 2x CAN + 8x GPIO)TXB-I2-S2-C2-G8 (2x RS-232 + 2x CAN + 8x GPIO) |
Mounting Options
| Surface Mounting | 4 mounting holes |
| DIN Mounting | 30mm DIN Rail Standard (DIN bracket separate purchase) |

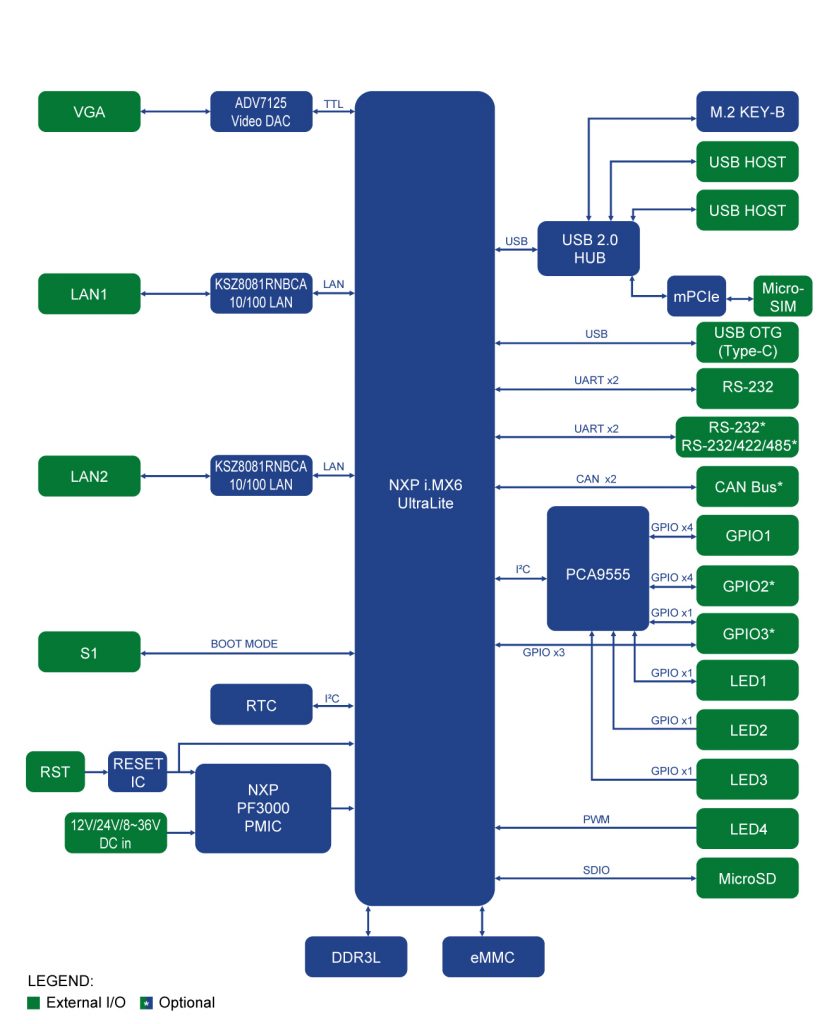

BLOCK DIAGRAM
DIMENSIONS

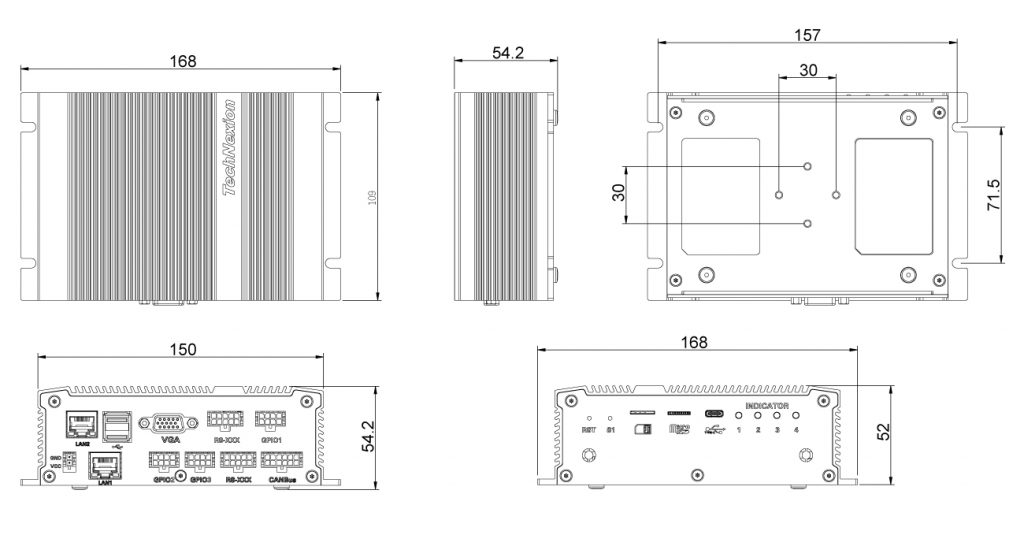

Dimensions in mm
