Performance
The NXP i.MX 6 Family is available in single, dual and quad core 32-bit Arm Cortex-A9, making them a cost-effective choice for a modern graphical user interface while providing sufficient power for typical industrial and multimedia applications.
Software Platform
As a true opensource software advocate. TechNexion products are supported with a source code BSP Linux and Android AOSP. Third party consultants can tailor solutions easily to make every embedded project a success.
PoE
Various power modules are available. No matter your project require 9~36 VDC wide power input or Power over Ethernet. We have you covered.
M.2
Connect your TEK3 to the cloud with an internal M.2 Wireless Communication or 4G/LTE module.
I/O
The TEK3-IMX6 comes with more interfaces than a Swiss Army Knife can pack. UARTs, CAN, GPIOs to connect devices. USB, SD for expansion and peripherals and surround audio, VGA and HDMI for multimedia connectivity.
Fanless
No moving parts. No fans, loose cables and other undesired hassles that make your product unstable. The TEK3 is designed to withstand vibration prone applications as no other.
Power Saving
One of the best choices when designing a multimedia control interface when power and performance are in a stand-off and choosing sides is not an option. Take them both with the TEK3 NXP i.MX6.
Cost Effective
In family scalability with a single software BSP is what the NXP i.MX6 Family is famous for. Keep your investment to a minimum and easily scale up or down as your product requirements change.
Specifications
| Core System |
| Processor | NXP i.MX6 Solo
NXP i.MX6 Duallite
NXP i.MX6 Quad | | Architecture | ARM Cortex-A9 | | PMIC | NXP MMPF0100 | | Memory | upto 2GB DDR3 | | Storage | 4GB eMMC | |
| Connectivity |
| Network LAN | 1x Atheros AR8035 Gigabit LAN | | Power over Ethernet | PoE function 802.3at (optional) | |
| Video |
| GPU Engine | Vivante GC2000 (Quad)
Vivante GC355 (Quad)
Vivante GC880 (Solo/DualLite) | | Video decode | 1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad) | | Video encode | 1080p30 H.264
BP/Dual 720p | |
| Audio |
| Audio Codec | NXP SGTL5000 | | Audio Connectors | 1x 3.5mm jack Microphone
1x 3.5mm jack Stereo Audio in
1x 3.5mm jack Stereo Audio out | |
| Power Specifications |
| Power Input | 12 VDC
9-36V DC (wide power input) | | Power Consumption | Depending on Configuration | | Power Connector | 2-pin Micro-Fit 3.0 | |
| Operating Systems |
| Standard Support | Linux
Yocto
Android
Ubuntu | | Extended Support | Commercial Linux | |
| Certification and Compliance |
| Certification | Compliant with CE / FCC / RoHS / REACH directives | |

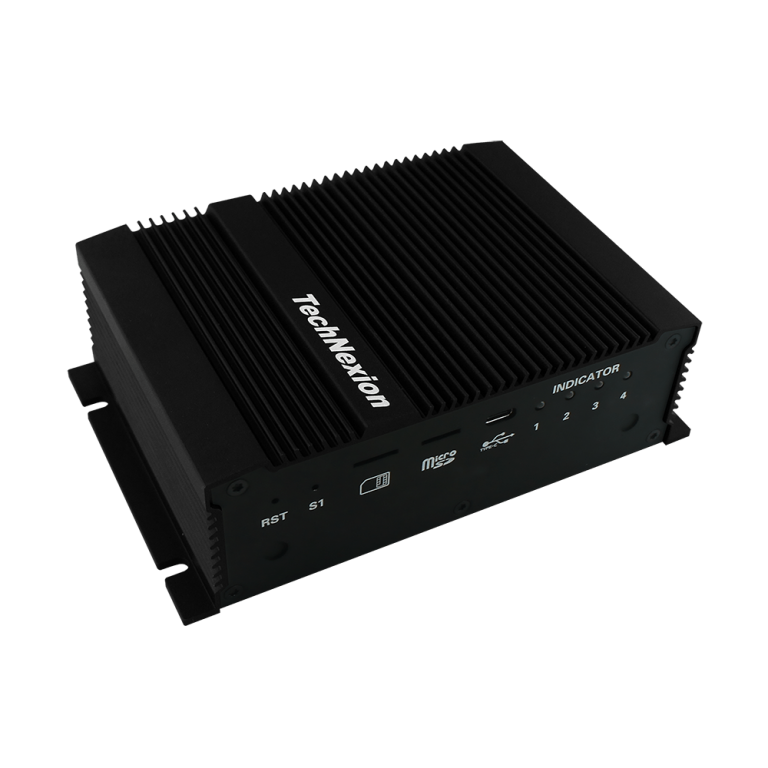

| Environmental and Mechanical |
| Enclosure Material | Anodized Aluminium | | Dimensions | 168 (W) x 109 (H) x 55 (D) mm | | Relative Humidity | 10 to 90 % | | MTBF | 50,000 Hours | | Shock | 15G half-sine 11 ms duration | | Operation Temperature | Commercial: 0° to +50° C | | Vibration | 1 Grms random 5-500Hz hr/axis | | Weight | 705 grams | |
| Expansion Interfaces |
| Expansion Slots | 1x M.2 slot
1x mini-PCIe with SIM cardslot | |

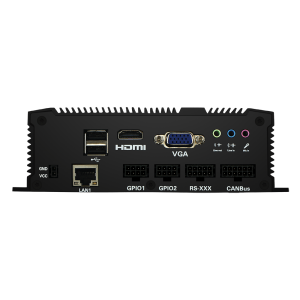

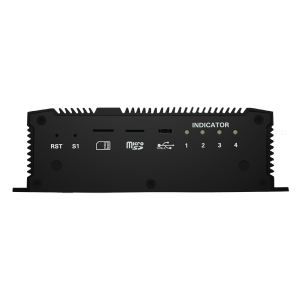

| External Connectors |
| External Display | 1x HDMI
1x VGA 15-pin D-SUB | | Network | 1x RJ45 | | USB | 1x USB 2.0 OTG (Type-C)
2x USB 2.0 Host | | Buttons | 1x Boot Select
1x Reset | | Indicators | 4x programmable LEDs | | SIM Cardslot | 1x Micro-SIM cardslot | | SD Cardslot | 1x MicroSD Card Slot | |
| Modular Expansion Options |
| Power Expansion Module | TXB-P1-1030V-LAN1 (8-36V 5A)
TXB-P1-12V-LAN1 (12V 3A)
TXB-P1-12V-POE1 (12V 3A) or (PoE 802.3at) | | I/O Expansion Module | TXB-I2-GS2-GC2-GG8 (Galvanic Isolated 2x RS-232 + 2x CAN + 8x GPIO)
TXB-I2-S2-C2-G8 (2x RS-232 + 2x CAN + 8x GPIO) | |
| Mounting Options |
| Surface Mounting | 4 mounting holes | | DIN Mounting | 30mm DIN Rail Standard (DIN bracket separate purchase) | |
| Shop Data |
| Brand | TechNexion | | Country of Origin | Taiwan | | HTSN | 8471.90.0000 | | ECCN | 5A992.c Mass Market | | CCATS | Mass Market (No License Required) | | REACH / RoHS | YES | |
