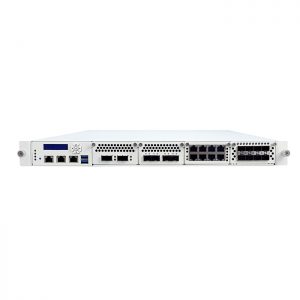

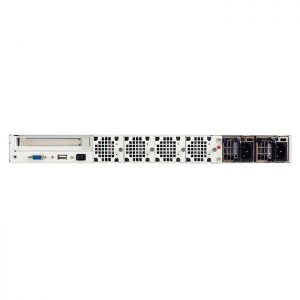

SCB-1935A

1U Rack-mount Network Appliance single 2nd Gen AMD EPYC 7002 (Rome) Series Processor Networking System, support DDR4 up to 3200MHz, 4x PCIe x8 slots for Expansion Module, 2x USB3.0, 2x 1GbE RJ45, 1x Console, mSATA, 2x M.2 22110, 1x PCIe x16 slot, Redundant PSU

Key features

• Support 2nd Gen AMD® EPYC™ 7002 (Rome) processors, LGA4094
• 8-channel DDR4 ECC Registered 3200MHz memory, up to 512GB
• 2x 1GbE RJ45 ports, support 4x NIC expansion modules
• 1x riser card for PCIe x16 expansion slot to Rear
• 2 x 2.5”HDD/SSD, 2 x M.2 2280/22110 & 1 x m-SATA
• Support IPMI card with VGA (optional)

The SCB-1935 is a 1U rack-mount high-performance networking system. Supporting single 2nd Gen AMD® EPYC 7000 Series Processor.

Based on of AMD’s new “Zen” CPU core delivers breakthrough computing performance. CPU cores up to 32 cores, supports 64MB cache and total with 128x PCIe lanes.

The SCB-1935 supports eight channels DDR4 RDIMM (up to 3200MHz). With 32x front access PCI Express lanes, the SCB-1935A can support up to 4x NIC modules, support multiple Ethernet module bays for flexible port configuration; such as 1/10/40 Gigabit fiber, Gigabit copper with BYPASS function or not. The maximum capable Ethernet port is up to 32x 1GbE ports. SCB-1935B supports up to 2x PCIe x16 slots for single/dual port 100 Gigabit Ethernet Adapter card in front and 1x PCIe x16 slot in rear. The strong IO elements of SCB-1935 include two management Ethernet ports (one for management, another for optional IPMI function), a console port, two USB 3.0 ports, a graphic LCD module with keypad (5 key), LEDs for power/HDD/2x GPIO. In addition, the SCB-1935 also supports one 3.5” or two 2.5” SATA HDDs/SSDs, onboard one mSATA and two M.2 2280/22110 slots for basic network storage application.
