SCB-1826

1U Rack-mount single 10th Generation Intel® Core™ / Xeon W processor (Comet Lake S) networking System, support DDR4 2933MHz up to 128GB, 4x PCIe slots for Network Expansion Module, 2x USB2.0, 2x 1GbE, 1x Console, 1x M.2 2280/2242 or 1x CF , IPMI or mPCIe, PCIe x16 slot, Redundant / Single PSU

Key features

  • Support Intel® Comet Lake Series Processor, LGA1200
  • 2-channel DDR4 ECC 2933MHz Memory, max support 128GB
  • Support TPM/trust secure boot (BIOS recovery) & IPMI with Dying Gasp feature

The SCB-1826 is a 1U Rack-Mount high-performance networking system, that supports a single 10th Generation Intel® Core™ / Xeon W processor for IoT applications. It is based on Intel’s new 14nm Comet Lake architecture to deliver breakthrough computing performance. CPU up to 10 cores / 20 Threads, 20MB cache, and maximum turbo frequency of 4.8GHz. Platform is powered by the W480E chipset.

The SCB-1826 supports 4x DDR4 ECC DIMM (up to 2933MHz) in dual channels and maximum memory capacity up to 128GB. With total 24 PCI Express lanes, the SCB-1826 can support up to 4 NIC modules, support multiple Ethernet module bays for flexible port configuration, such as 1/10/25/40/100Gigabit fiber or copper with optional Bypass function. The maximum capable Ethernet port is up to 32x 1GbE ports. SCB-1826 supports standard FHHL PCIe slot for RAID or others PCIe device usage in rear.

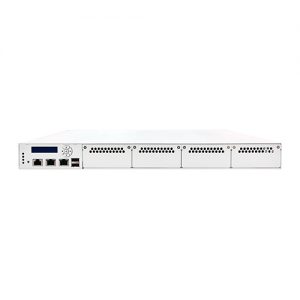

The strong IO elements of SCB-1826 include two management Ethernet port (one for management, another for optional IPMI function), a console port, two USB 2.0 ports, a Graphic LCD module with keypad (5 key), LEDs for power/ HDD/ 2 x GPIO. In addition, the SCB-1826 also supports one 3.5” or two 2.5” SATA HDDs/SSDs, onboard one M.2 M key 2280/2242 slots for basic network storage application.
