S14I Laptop
One Step Above Semi Rugged
The new Durabook S14I features 8th Generation Intel® CPUs and class-leading drop spec/IP ratings, pushing semi-rugged devices to a whole new level. The S14I is engineered to combine military-grade durability, field-worker functionality, desktop performance, and long battery life for non-stop use. For workers in today’s challenging and versatile working environments, the S14I is truly in a class of its own.

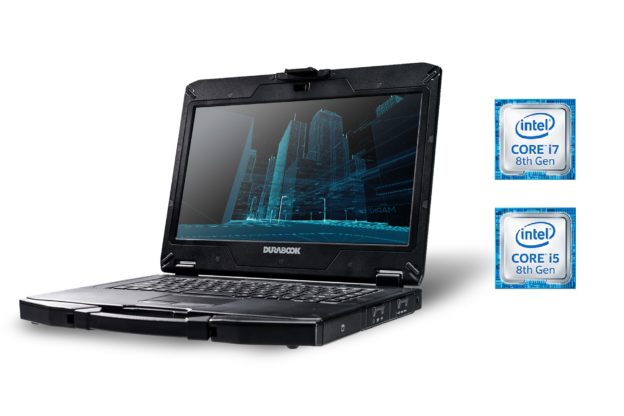

HIGH PERFORMANCE WITHOUT SACRIFICE
Built with an Intel® 8th Generation CPUs and Intel® UHD 620 graphics processors, the S14I makes intensive data processing a breeze. With the ultra-high-speed data transmission capability of Intel® Dual Band Wireless AC 9260 and Bluetooth® V5.0, all information is instantly synced and fed back to the data control center.

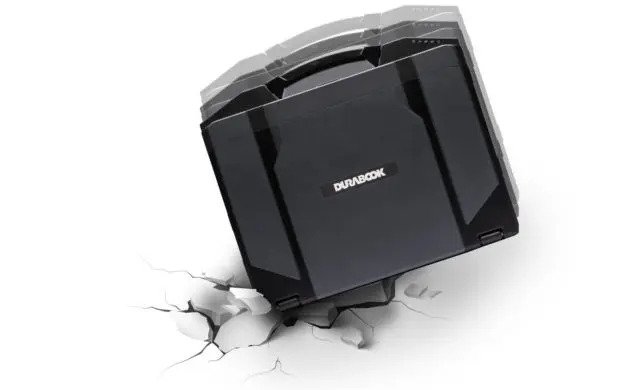

EXCEPTIONAL DURABILITY
The S14I is built with a robust mechanical design and rigorously tested components. It meets the standards of MIL-STD-810G; withstands up to a 4-foot drop; and boasts an IP53 rating. This tough yet elegant laptop breaches the boundary between semi-rugged and fully-rugged devices.

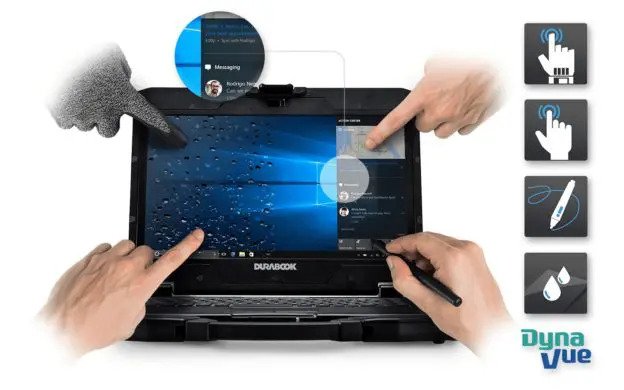

VIEW EVERY DETAIL
The S14I sports a Full HD 1080p display and proprietary DynaVue® technology. With brightness enhanced up to 1,000 nits and light-filtering technology providing a high contrast ratio (CR) to eliminate reflection, every detail of imagery is delivered with the utmost clarity. The 10-point capacitive multi-touch panel has four Touch Modes (Glove, Stylus, Water, Finger), optimizing use of the device for both indoor and outdoor applications.

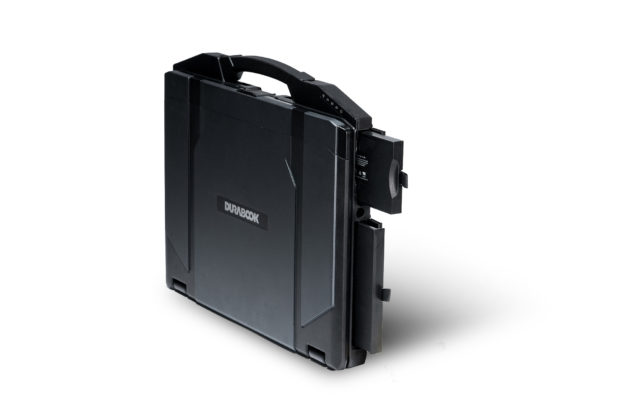

CONTINUOUS OPERATION ON THE GO
In the field, portability equals productivity. The S14I weighs only 2.3kg and is 33% slimmer than the previous generation.
Adding ultra-long battery life of 12 hours and battery swap capability to its mobile form factor, the S14I enables non-stop operation outside of the office.

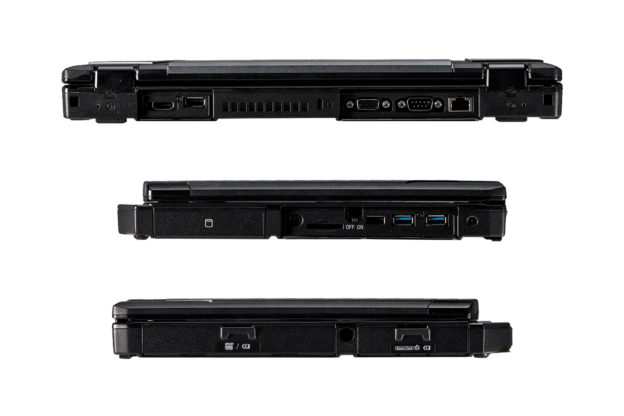

BEST-IN-CLASS CONNECTIVITY
A smart device knows how to communicate in every way, and the S14I says it all: It’s compatible with a full range of interfaces, and the media bay offers all the customized expansion you may need.

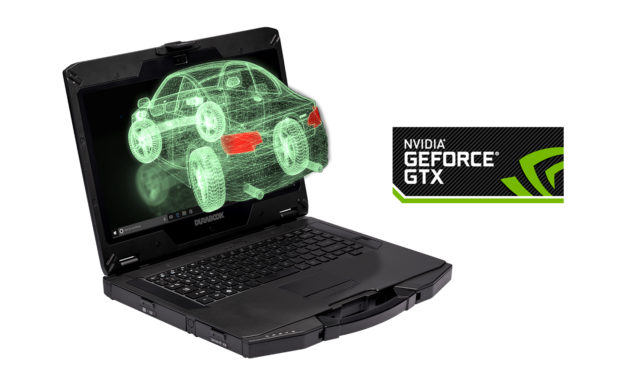

DEDICATED GRAPHICS
The optional dedicated NVIDIA® GEFORCE® GTX1050 transforms the S14I into an ultimate solution for specific tasks such as graphics rendering, architectural illustrations and CAD applications. Only a discrete graphic card can give you the performance and reliability you need to fulfill the demanding job.
S14I TABLET ANATOMY
FRONT

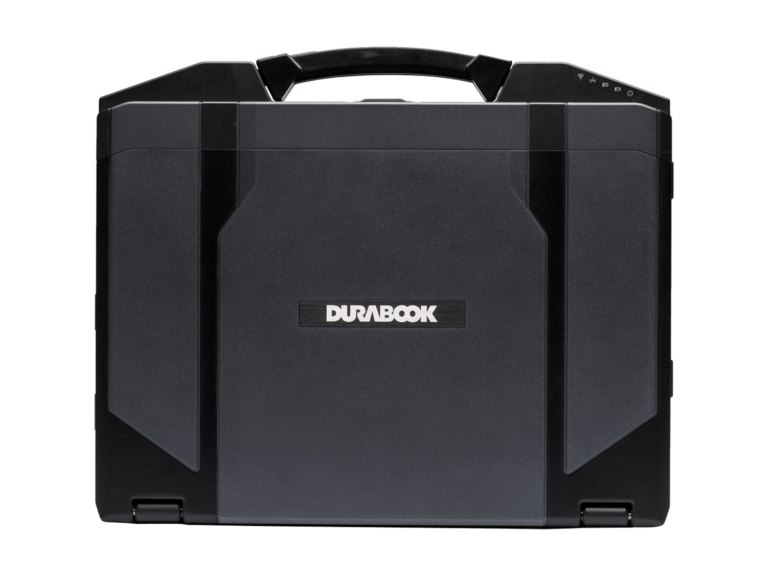

REAR
RIGHT
LEFT
Specifications
Rugged Specs
| MIL-STD-810G Certified | 4′ drop 26 faces, drop, shock, vibration, altitude, freeze/thaw, high/low temperature, temperature shock, humidity) |
| Water and Dust Resistant | IP53 |
Tech Specs
| Display | 14.0″ FHD (1920 x1080) Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen Optional user selectable touch mode for finger/water, glove, or stylus programmable function |
| Operating System | Windows® 10 Pro |
| Processors | Intel® Core™ i7-8650U vPro™ (8th Gen) 1.9GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache Intel® Core™ i7-8550U (8th Gen) 1.8GHz processor with Turbo Boost Technology up to 4.0GHz, 8MB cache Intel® Core™ i5-8350U vPro™ (8th Gen) 1.7GHz processor with Turbo Boost Technology up to 3.6GHz, 6MB cache Intel® Core™ i5-8250U (8th Gen) 1.6GHz processor with Turbo Boost Technology up to 3.4GHz, 6MB cache Intel® Core™ i3-8130U (8th Gen) 2.2GHz processor with Turbo Boost Technology up to 3.4GHz, 4MB cache |
| Memory | 2 slots 4GB up to 32GB (2400MHz DDR4) |
| Storage | 256GB SSD Optional 512GB/1TB SDD Optional OPAL 2.0 SSD Optional 2nd storage (SSD)2,8 |
| Graphics | Intel® UHD Graphics 620 Optional NVIDIA® GeForce® GTX® 10508 |
| Camera | Optional integrated 2.0 MP web-cam with shutter design |
| Audio | Optional integrated microphone7 Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |
| Media Bay (One Option Only) | Optional DVD super multi Optional 2nd battery8 Optional 2nd storage (SSD)2,8 Optional ExpressCard 54 x 1 and PCMCIA Type II x 18 Optional PCMCIA Type II x 28 |
| I/O Ports | USB 3.1 (type A) x 2 USB 2.0 (type A) x 2 Audio in/out (combo jack) x 1 SD card (SDXC) x 1 10/100/1000 Ethernet (RJ-45) x 1 VGA port (D-sub,15-pin) x 18 HDMI port (type A) x 1 Serial port (RS-232 : D-sub,9-pin) x 1 (optional to support RS-422/ RS-485)2 Optional docking connector (41-pin Pogo) x 1 SIM card x 1 Optional smart card reader x 16 DC-In jack x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN8 |
| Keyboard & Input | 2 user-definable keys (P1/P2) RF Signal slide-switch Standard membrane keyboard with optional LED backlight |
| Wireless & Communications | Integrated 10/100/1000 Ethernet Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac) Bluetooth® V5.0 Optional dedicated GPS module (UBLOX-NEO-M8N) Optional 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS, WWAN, and WLAN8 |
| Security | Intel® vPro™ Technology (per CPU options) TPM 2.0 NIST BIOS compliant Easy removable SSD Optional smart card reader6 Stealth mode Kensington lock Optional night vision mode1 Optional fingerprint scanner Optional HF RFID/NFC reader2,6 |
| Power | AC adapter : 100-240V, 50Hz-60Hz, 65W Optional AC Adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA VGA8 Main battery Li-Ion, 10.8V, 4700mAh, 12 hours3 Optional 2nd battery Li-Ion 10.8V, 4700mAh, 12 hours3,8 Optional bridge battery : 5 minutes swap time4 |
| Dimension & Weight | 350 mm (L) x 282 mm (W) x 38 mm (H)5 2.3 kg5 |
| Warranty | 3-year limited warranty standard |
- Night vision mode is available only for sunlight readable display
- Contact your sales representative for feature availability
- Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
- The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.
- Weight varies with options. The Dimension with optional discrete VGA is 61mm (H)
- RFID and Smart card reader are mutually exclusive.
- Integrated microphone is available only with web-cam.
- Not available in combination with Intel® Core™ i3-8130U.
