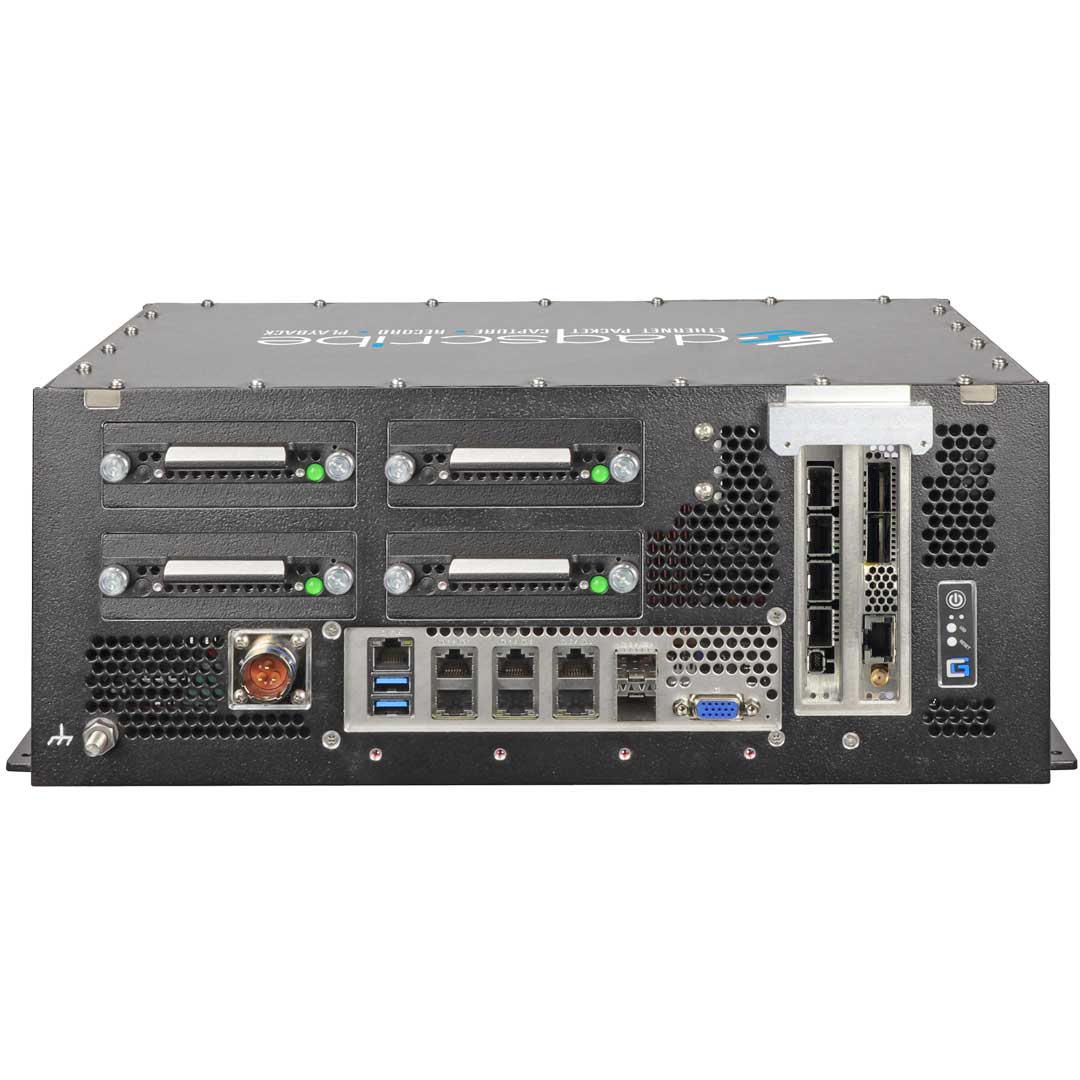

Rugged mini 40Gbps Ethernet recorder RDR70-Mini-40G

FEATURE SUMMARY

A miniature, rugged (MIL-STD-810 compliant), Ethernet recorder featuring 1 x 40GbE port.
Sustained 100% Ethernet capture and record performance at 40Gbps.
Up to 60 Terabytes (SSDs) of local data storage.
Data offload: USB 3.0, 1GbE, and 10GbE ports.
Interfaces with VRT/VITA 49 or other digital radio devices.
STIG compliant & AES256 encryption options.
Real-time status monitoring of capture ports.

Category	System specifications preview
Performance	Line rate Rx 1 x 40Gbps for packet size 61 – 10,000 bytes Line rate Tx 1 x 40Gbps for packet size 61 – 10,000 bytes 100% packet capture
Network interfaces	IEEE 802.3 40GbE Ethernet support Network interface: 1 x QSFP+ port QSFP+ modules: 40GBASE-CR4/SR4/LR4
Data format	PCAP format (capture/record only) NTCAP – PCAP style binary format (capture/replay) Command-line-interface utilities: simple/quick conversion of file formats and UDP payload extraction

The RDR70-Mini-40G captures data from Layer-2 through Layer-7 of the Ethernet protocol stack.
This includes recording IPV4 or IPV6 protocols at the network layer and TCP or UDP protocols at the transport layer.
The result is our robust, network protocol-agnostic packet recording tool.
Data format – compatible with other popular network monitoring tools like Wireshark^®
