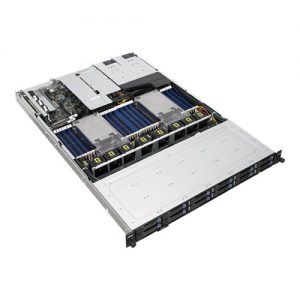

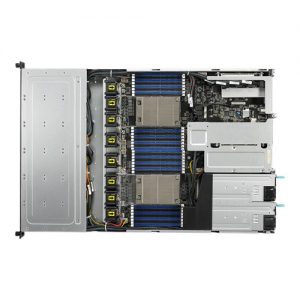

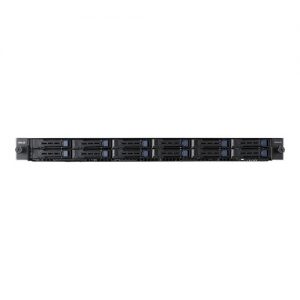

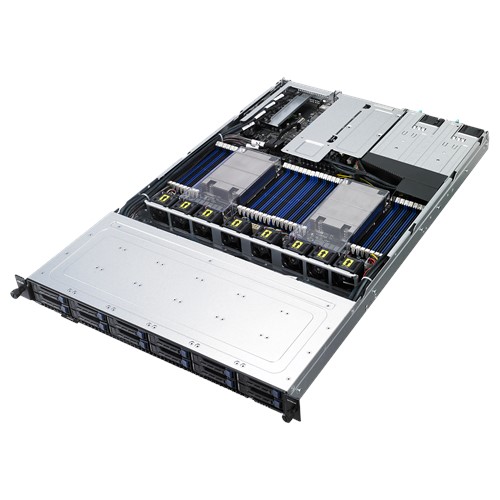

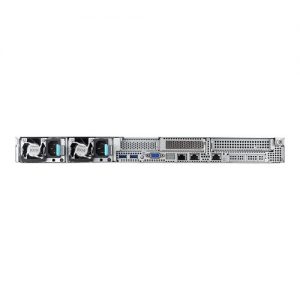

RS700A-E9-RS12V2

AMD EPYC™ 7002 platform 1U server with 12 2.5" storage bays

RS700A-E9-RS12V2

AMD EPYC™ 7002 platform 1U server with 12 2.5″ storage bays

  • 12 x 2.5″drive bays in 1U, the highest capacity storage on the market
  • High expandability for storage and communication
  • Flexible storage with dual M.2
  • Release the power of AMD EPYC™ 7002 processor
  • Best-in-class memory bandwidth and capacity
  • Comprehensive IT Infrastructure Management Software
  • Smart thermal design for energy efficiency
  • Server Fan Control

12 x 2.5″drive bays in 1U, the highest capacity storage on the market

RS700A-E9-RS12V2 fits up to 12 2.5-inch storage drives in a compact 1U form factor. With support for multiple drive configurations, including eight NVMe and four SATA drives, four NVMe and eight SATA drives, or four NVME and eight SAS drives with an optional ASUS PIKE II card, RS700A-E9-RS12V2 provides storage flexibility for a wide range of applications.

High expandability for storage and communication

RS700A-E9-RS12V2 provides numerous expansion slots to support additional storage and networking configurations, including a PCIe 3.0 x16 slot for a 4-NVMe adapter card, two PCIe 3.0 x8 slots for ASUS PIKE II HBA/RAID and 2-NVMe adapter cards, and an OCP Mezzanine x16 slot for a high-speed networking card.

Flexible storage with dual M.2

Dual M.2 slots supports either SATA 6Gb/s or PCIe 3.0 x4 with 32Gb/s bandwidth to enable fast data transfers. The OS can be installed on an M.2 SSD, speeding up system load times and eliminating the need to use one of the 2.5-inch storage drive bays.

Release the power of brand new AMD EPYC™ 7002 processor

RS700A-E9-RS12V2 is built on the brand-new AMD EPYC™ 7002 platform to deliver incredible server performance. With up to 64 cores per CPU and up to 128 threads in a single 1U server, RS700A-E9-RS12V2 packs incredible power in minimal space. 32 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

Best-in-class memory bandwidth and capacity

RS700A-E9-RS12V2 supports up to 32 DDR4 DIMMs for up to 4TB of RAM. An integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.

Comprehensive IT infrastructure management

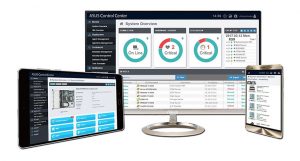

RS700A-E9-RS12V2 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Thermal Radar 2.0 for energy efficiency

Featuring two innovative intelligent detection technologies and multi-fan zone design, ASUS Thermal Radar 2.0 places different sensors on the CPU, GPU, DIMM, HDD and in other areas to collect localized heating information to designate dedicated fan flow automatically to reduce consumption of overall fan capacity. Additionally, the multi-fan zone design enables multiple fan curves for different zones to reduce operating time and cost required for manual adjustments and effectively enhances system reliability and thermal efficiency.

Core Optimizer

Low TCO

Reduce fan power consumption
and TCO

Engine Boost

More Sensors

Up to 56 ambient sensors on selected models

Workload Presets

Intelligent Adjustment

Dynamic fan curve adjustment
for different fan zones
