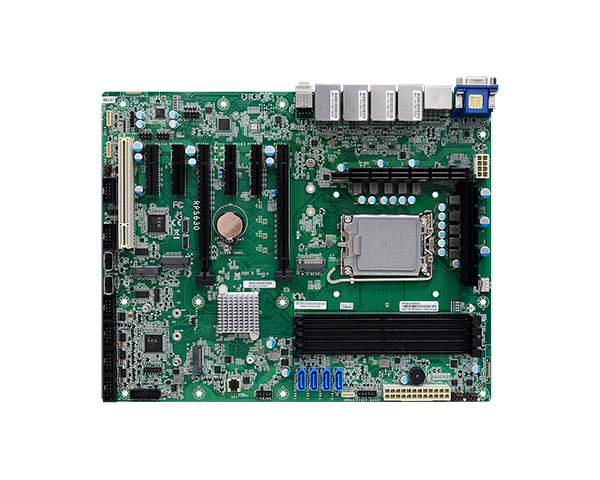

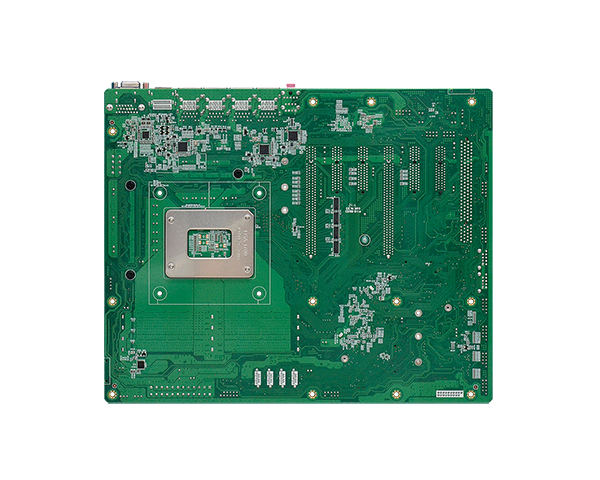

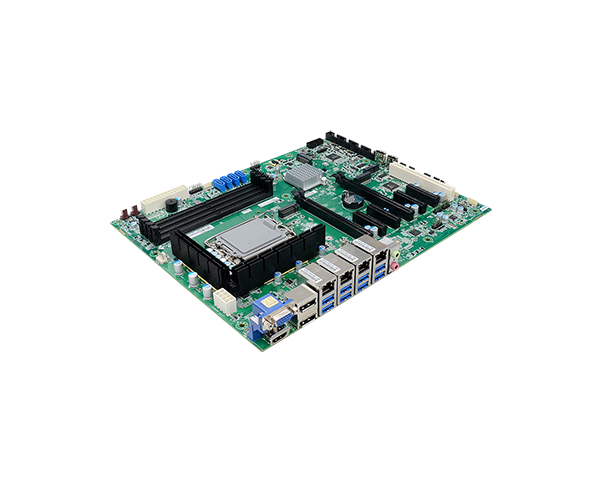

DFI RPS630 – ATX Motherboard with 14th/13th/12th Gen Intel® Core™
- 14th/13th/12th Gen Intel® Core™ Processors (LGA 1700) up to 125W
- Intel® R680E / Q670E Chipset
- 4x DDR5 UDIMM slots supporting up to 192GB

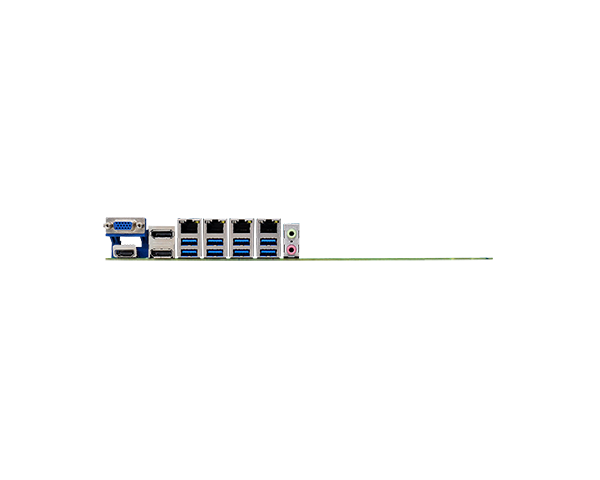

- Quad Displays: VGA, 2x DP++, and HDMI (4K Resolution)
- Multiple Expansions: 2x PCIe x16 (Gen 4), 4x PCIe x4, 1x PCI
- Rich I/O: Up to 4x 2.5GbE LAN, 4x USB 3.2 Gen2, 6x USB 3.2 Gen1, 6x COM
- Versatile M.2 Sockets: M-Key (NVMe), E-Key, and A-Key
DFI’s RPS630 is an industrial-grade ATX motherboard powered by 14th, 13th, and 12th Gen Intel® Core™ processors. It brings high-speed DDR5 memory support, quad independent 4K displays, and extensive PCIe and M.2 expansion capabilities. With rich networking options including multiple 2.5GbE LAN ports and an array of USB 3.2 interfaces, it is designed to deliver robust performance for machine vision, automation, and advanced edge computing applications.
Specifications Summary
| Processor System | CPU | 14th/13th/12th Gen Intel® Core™ Processors (LGA 1700), up to 125W |
|---|---|---|
| Chipset | Intel® R680E / Q670E | |
| Memory | Capacity | 4x DDR5 UDIMM up to 192GB (4400 MHz) |
| Network | LAN Ports | R680E: 3x 2.5GbE, 1x 1GbE Q670E: 2x 2.5GbE |
| I/O Interfaces | USB | 4x USB 3.2 Gen2, up to 6x USB 3.2 Gen1, up to 3x USB 2.0 |
| Display | 1x VGA, 2x DP++, 1x HDMI | |
| Serial & DIO | Up to 6x RS-232/422/485, 8-bit DIO | |
| Expansion | PCIe / PCI Slots | 2x PCIe x16 (Gen 4), 4x PCIe x4, 1x PCI |
| M.2 Sockets | Up to 2x M-Key (NVMe/SATA), 1x E-Key, 1x A-Key | |
| Storage | 4x SATA 3.0 (RAID 0/1/5/10) | |
| Mechanical & Env. | Operating Temp. | -5 to 65 °C |
| Dimensions | ATX, 305 x 244 mm |
