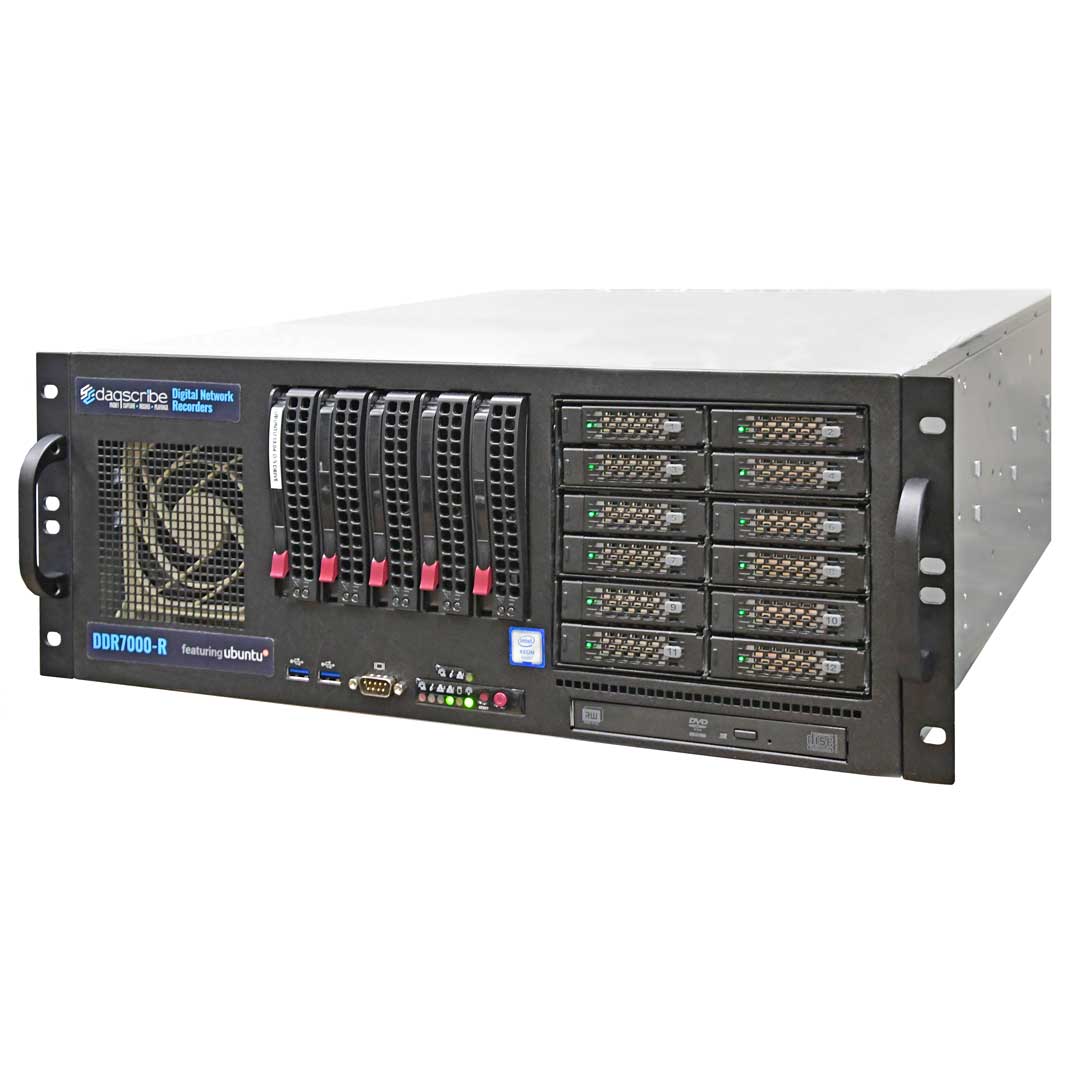

Rackmount 100Gbps Ethernet recorder DDR7000-R-25G-4

FEATURE SUMMARY

Our fastest rackmount Ethernet recorder featuring 4 x 25GbE ports.
Sustained 100% Ethernet capture and record performance up to 100Gbps.
Real-time status monitoring of capture ports.
System storage options up to 180 Terabytes (SSDs).
STIG compliant & AES256 encryption options.
Data offload: USB 3.0 and 10GbE or optional 25/40/100GbE ports

optional data playback up to 100Gbps

Category	System specifications preview
Performance	Line rate Rx 100Gbps (4 x 25Gbps) for packet size 61 – 10,000 bytes Line rate Tx 100Gbps (4 x 25Gbps) for packet size 61 – 10,000 bytes 100% packet capture
Network interfaces	IEEE 802.3 25GbE Ethernet support Network interface: 1 x QSFP28 port or 4 x SFP28 QSFP28 modules: 4 x SFP28 CR/SR breakout from QSFP28 SFP28 modules: 25GBASE-CR/SR/LR/LR-BiDi, dual-rate 10/25GBASE-SR/LR
Data format	PCAP format (capture/record only) NTCAP – PCAP style binary format (capture/replay) CLI utilities: Simple/quick conversion from NTCAP to standard PCAP format or payload extraction

DESIGNED FOR ANY NETWORK PROTOCOL

Daqscribe Ethernet recorders feature high-performance network technologies that grab data from Layer-2 of the OSI stack.

This means precise packet-capture no matter the protocol, including IPV4 or IPV6; TCP to SCTP; and IP Unicast to IP Multicast.

Data is reliably stored to enterprise SSDs in real-time and as standard PCAP or NTCAP formats.

Access and analyze your recorded packet data with common network analysis tools such as Wireshark^® and ntop^®.
