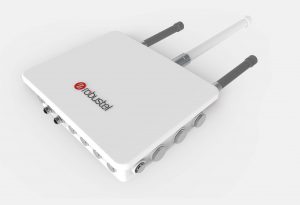

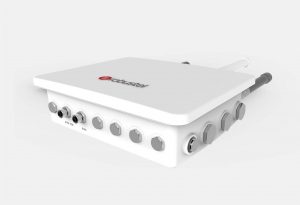

R3000 LG-OG Outdoor Gateway
The Robustel R3000 LG-OG is an IP67 outdoor LoRaWAN gateway. It is integrated with LoRaWAN wireless communication and cellular network technology, to provide users with wireless long-distance data transmission capabilities.
The Robustel R3000 LG-OG is an IP67 outdoor LoRaWAN gateway. It is based on Robustel’s best-selling router, the R3000.
It offers a myriad of advanced features not usually found on other cost-effective devices. Unique features include:
Smart Roaming
Unique network selection algorithm for intelligent network selection when using 3G/4G backhaul with roaming SIMs – gives highest possible resilience.
RobustVPN
Make easy inbound connections to Robustel Gateways on ANY SIM or on any broadband connection. No fixed IP of DynDNS services required.
Built-in LNS
Optional built-in LoRaWAN Network Server for applications that require local processing of network data – minimises network traffic.
This best-selling product allows you to scale up or down as required. It is a stable, industrial-quality device that is market-competitive at a very attractive price.
The R3000 LG-OG outdoor LoRa gateway is ideal for applications such as Smart Agriculture, or Healthcare.
All of the latest models utilise global cellular module technology to support Global LTE (4G) communications.
KEY FEATURES
- Supports global LoRaWAN ISM frequency bands
- Compatible with LoRaWAN and private protocols
- Compatible with any LoRaWAN Network Server
- Up to 8 channels supports receive data simultaneously
- RobustOS Operating System with extensive SDK
- Backhaul option supports 3G, 4G and Ethernet
- Supports dual SIM + Smart Roaming for high availability cellular Comms
- IP67 ingress protection withstanding water, dust and other extreme weather conditions
- PoE power – single cable installation
- Easy wall or pole mounting options
| LoRa Interface | |
| Number of antennas | 1 |
| Connector | M16, female |
| Standards | 863-870 MHz (Europe) 470-510 MHz (China) 915-927 MHz (Australia) 902-928 MHz (North America) 920-928 MHz (Japan) |
| Max transmitted power | +24.5 dBm |
| Max sensitivity | -142 dBm |
| Reception capacity | Supports 8 channels, and each channel can receive data simultaneously Supports 1 MHz bandwidth demodulation |
| Communication range | 15 km |
| Cellular Interface | |
| Number of antennas | 2 (MAIN + AUX) |
| Connector | M16, female |
| SIM | 2 (3 V & 1.8 V) |
| Standards | 2G/3G/4G |
| Ethernet Interface | |
| Number of ports | 2 x 10/100 Mbps |
| Connector | M12, 4Pin&8Pin |
| GPS Interface | |
| Number of antennas | 1 |
| Connector | SMA-K with 50 ohms impedance (inside) |
| Acquisition sensitivity | GPS: greater than -148 dBm |
| Horizontal position accuracy | GPS: 5 m
|
| Software (Basic features of RobustOS) | |
| LoRaWAN protocols | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| App Center (Available Apps for RobustOS)
| |
| Apps* | lm_csq, Preferred PLMN, RCMS, LoRiot, L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| Power Supply and Consumption | |
| Input voltage | PoE IEEE 802.3af/at Class A/B, 36V-48V |
| Power consumption | Idle: 4W Data link: 12W (peak) |
| Physical Characteristics | |
| Ingress protection | IP67 |
| Housing & Weight | Plastic, 3070 g |
| Dimensions | 310 x 245 x 93.4 mm |
| Installations | Wall mounting and pole mounting |
| Approvals
| |
| Regulatory | CE , RCM, FCC |
| Environmental | RoHS 2.0, WEEE |
