PV910-M230

M.2

PV910-M230
  • Low-Density Parity-Check (LDPC) Code
  • Global Wear Leveling
  • Flash bad-block management
  • Flash Translation Layer: Page Mapping
  • Power Failure Management
  • S.M.A.R.T.
  • TRIM
  • Hyper Cache Technology
  • Over-Provisioning
  • SMART Read Refresh™
  • NVMe Secure Erase

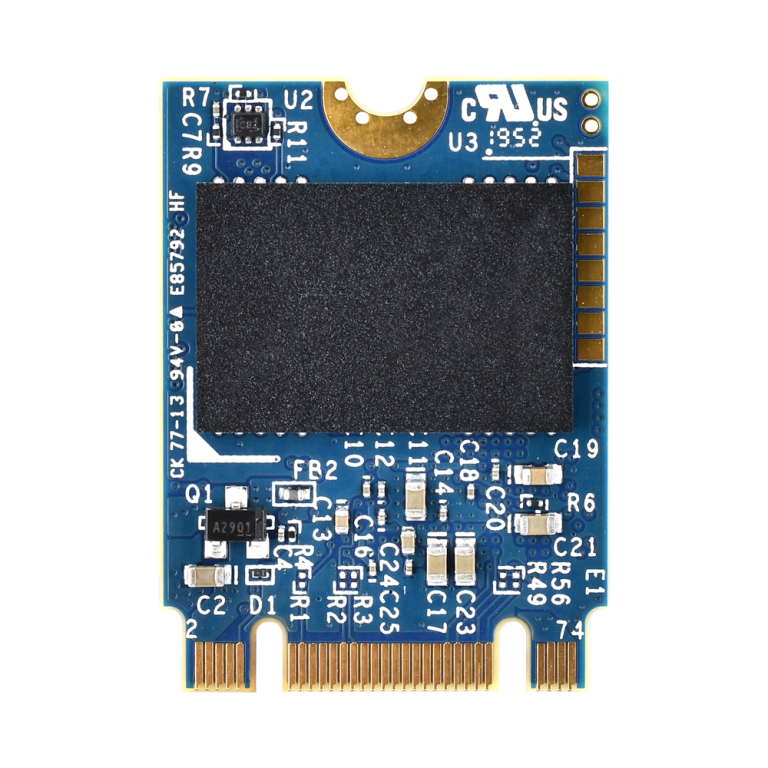

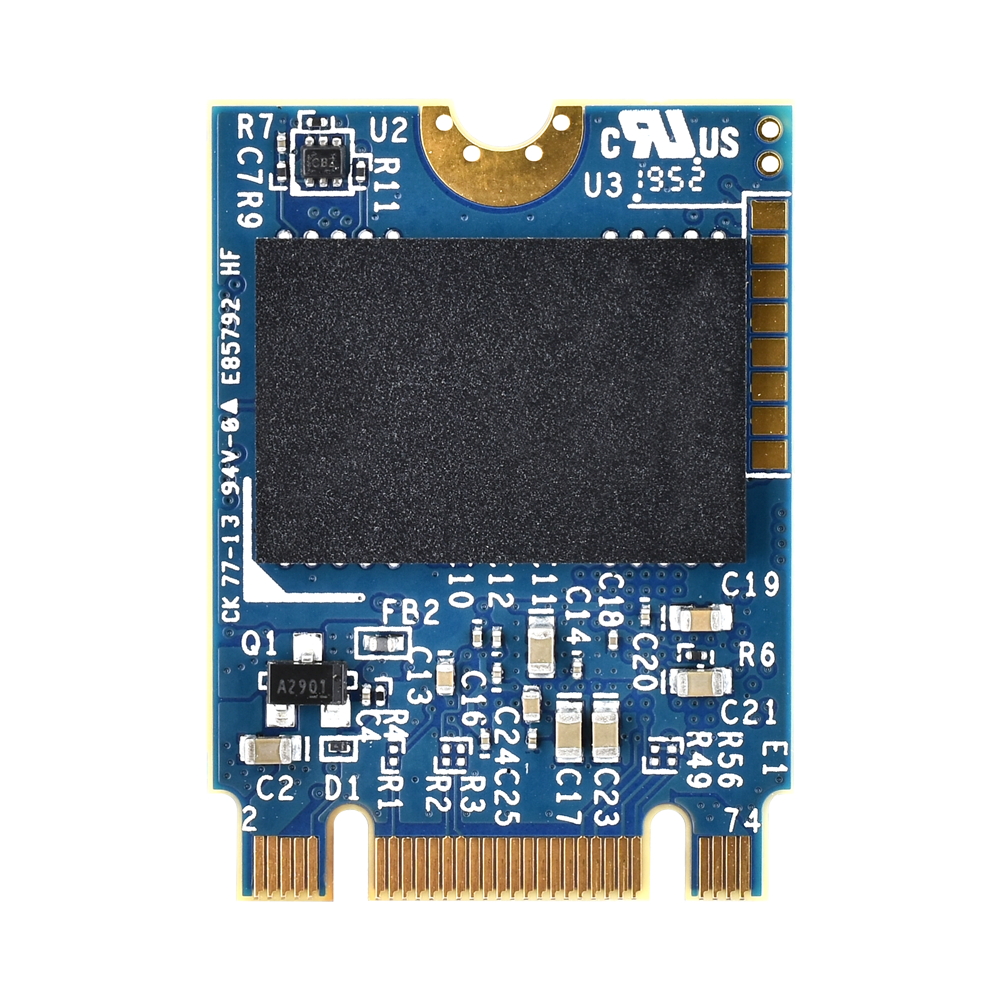

Industrial PCIe SSD: PV910-M230

Apacer PV910-M230 (M.2 2230) is the next generation modularized Solid State Drive (SSD) with the shape of all new M.2 form factor, aimed to be the more suitable for mobile and compact computers with standard width at only 22.00 mm. PV910-M230 appears in M.2 2230 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems.

The M.2 SSD is designed with PCIe-based connector pinouts, providing full compliance with the latest PCIe Gen3 x2 interface specifications. Aside from PCIe compliance, PV910-M230 delivers exceptional performance and power efficiency. On the other hand, the extreme thin and light form factor makes PV910-M230 the ideal choice for mobile computing systems, which appears to be the trend in near future.

Regarding reliability, PV910-M230 is built with a powerful PCIe controller that supports on-the-module ECC as well as efficient wear leveling scheme. In terms of power efficiency, PV910-M230 is compliant with PCIe Gen3 x2 interface standard so that it can operate on power management modes, which greatly save on power consumption.

Spec

  • ModelPV910-M230
  • InterfacePCIe Gen3 x2
  • ConnectorM.2 B & M key
  • Form FactorM.2 2230
  • NAND Flash Type3D TLC
  • Capacity60GB~240GB
  • External DRAMNo
  • Sustained Read Performance (MB/sec)Up to 890
  • Sustained Write Performance (MB/sec)Up to 745
  • ECC EngineLow-Density Parity-Check (LDPC) Code
  • IOPS (4K Random Write)99K
  • Standard Operating Temperature ( °C )0 ~ + 70
  • Extended Operating Temperature ( °C )-40 ~ + 85
  • Storage Temperature ( °C )-40 ~ + 100
  • Thermal SensorYes
  • ShockOperation: 50G/11ms
    (compliant with MIL-STD-202G)
    Non-operation: 1500G/0.5ms
    (compliant with MIL-STD-883K)
  • VibrationOperation: 7.69 Grms, 20~2000 Hz/random
    (compliant with MIL-STD-810G)
    Non-operation: 4.02 Grms, 15 ~ 2000 Hz/sine
    (compliant with MIL-STD-810G)
  • Operating Voltage3.3 V ± 5%
  • Power ConsumptionActive mode: 445 mA / Idle mode: 150 mA
  • Dimension (L x W x H )30.00 x 22.00 x 3.88 (mm)
  • MTBF (hours)>3,000,000
  • TechnologyEnd-to-end Data Protection / NVMe Secure Erase / Over-provisioning / Page Mapping / S.M.A.R.T. / Smart Read Refresh™ / SSDWidget 2.0 / Thermal Sensor / Thermal Cycling / Thermal Throttling / Wide Temperature
  • ApplicationGaming / Server & Networking / Transportation
