PV210-M280

M.2

PV210-M280
  • Adopts advanced LDPC ECC engine with 3D NAND flash memory to improve reliability
  • Global Wear Leveling
  • Flash bad-block management
  • Flash Translation Layer: Page Mapping
  • S.M.A.R.T.
  • Power Failure Management
  • TRIM support
  • CoreGlacier™ heatsink technology for wide temp.
  • Hyper Cache Technology
  • Over-Provisioning
  • DataRAID™
  • NVMe Secure Erase

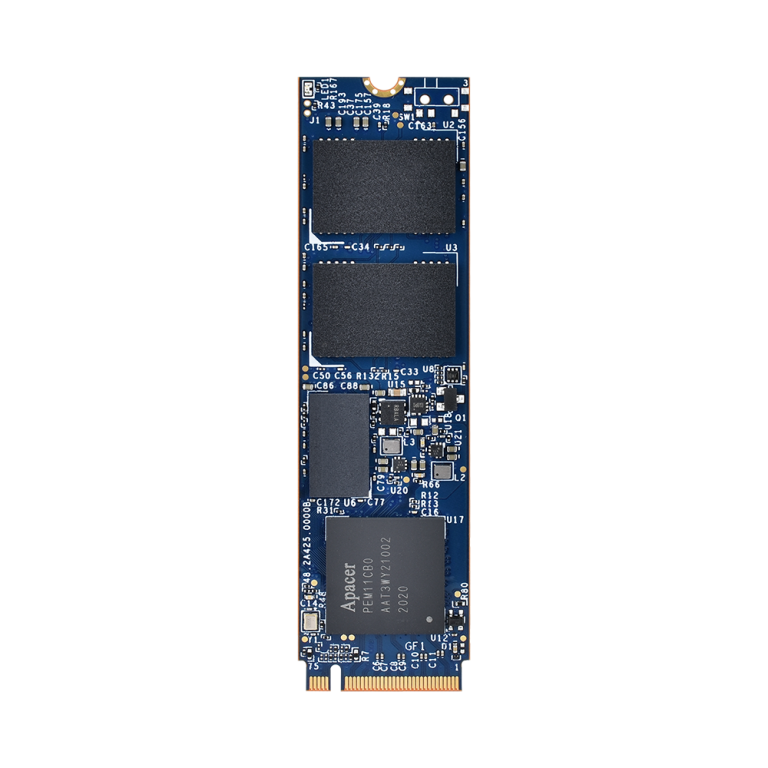

Industrial PCIe SSD: PV210-M280

Apacer PV210-M280 is the fastest SSD designed as M.2 2280 mechanical dimensions, providing full compliance with PCIe Gen3 x4 interface and NVMe 1.3 specifications.

Built with a powerful PCIe controller, PV210-M280 delivers outstanding performance in data transfer, reaching up to 495,000/517,000 and 3,100/2,630 MB/s in IOPS and sequential read/write. The extreme thin and light form factor makes PV210-M280 the ideal choice for mobile computing systems, which appears to be the trend in near future.

In terms of security, data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers with End-to-End Data Protection. Regarding reliability, PV210-M280 is built with a powerful PCIe controller that supports on-the-module ECC as well as efficient wear leveling scheme. In terms of power efficiency, PV210-M280 is compliant with PCIe Gen3 x4 interface standard so that it can operate on power management modes, which greatly save on power consumption.

Spec

  • ModelPV210-M280
  • InterfacePCIe Gen3 x4
  • ConnectorM.2 M Key
  • Form FactorM.2 2280 Double side, M key: 240, 480, 960, 1920GB
  • NAND Flash Type3D TLC
  • Capacity240GB~1920GB
  • External DRAMYes
  • Sustained Read Performance (MB/sec)Up to 3100
  • Sustained Write Performance (MB/sec)Up to 2630
  • ECC EngineLow-Density Parity-Check (LDPC) Code
  • IOPS (4K Random Write)222K
  • Standard Operating Temperature ( °C )0 ~ + 70
  • Extended Operating Temperature ( °C )-40 ~ + 85
  • Storage Temperature ( °C )-40 ~ + 100
  • Thermal SensorYes
  • ShockOperation: Acceleration, 50(G)/11(ms)/half sine
    (compliant with MIL-STD-202G)
    Non-operation: Acceleration,1,500(G)/0.5(ms)/half sine
    (compliant with MIL-STD-883K)
  • VibrationOperation:7.69 Grms, 20~2000 Hz/random
    (compliant with MIL-STD-810G)
    Non-operation:4.02 Grms, 15~2000 Hz/random
    (compliant with MIL-STD-810G)
  • Operating Voltage3.3V±5%
  • Power ConsumptionActive mode: 1860 mA / Idle mode: 305 mA
  • Dimension (L x W x H )Double side: 22.00 x 80.00 x 3.88 (mm)
    CoreGlacier: 22.00 x 80.00 x 4.08 (max) (mm)
  • MTBF (hours)>3,000,000
  • TechnologyConformal Coating / CoreGlacier™ / DataRAID™ / End-to-end Data Protection / Erase / NVMe Secure Erase / Over-provisioning / Page Mapping / Signed Firmware / S.M.A.R.T. / Smart Read Refresh™ / SSDWidget 2.0 / Thermal Sensor / Thermal Cycling / Thermal Throttling / Wide Temperature / Write Protect
  • ApplicationFactory Automation / Gaming / Healthcare / Server & Networking / Transportation
