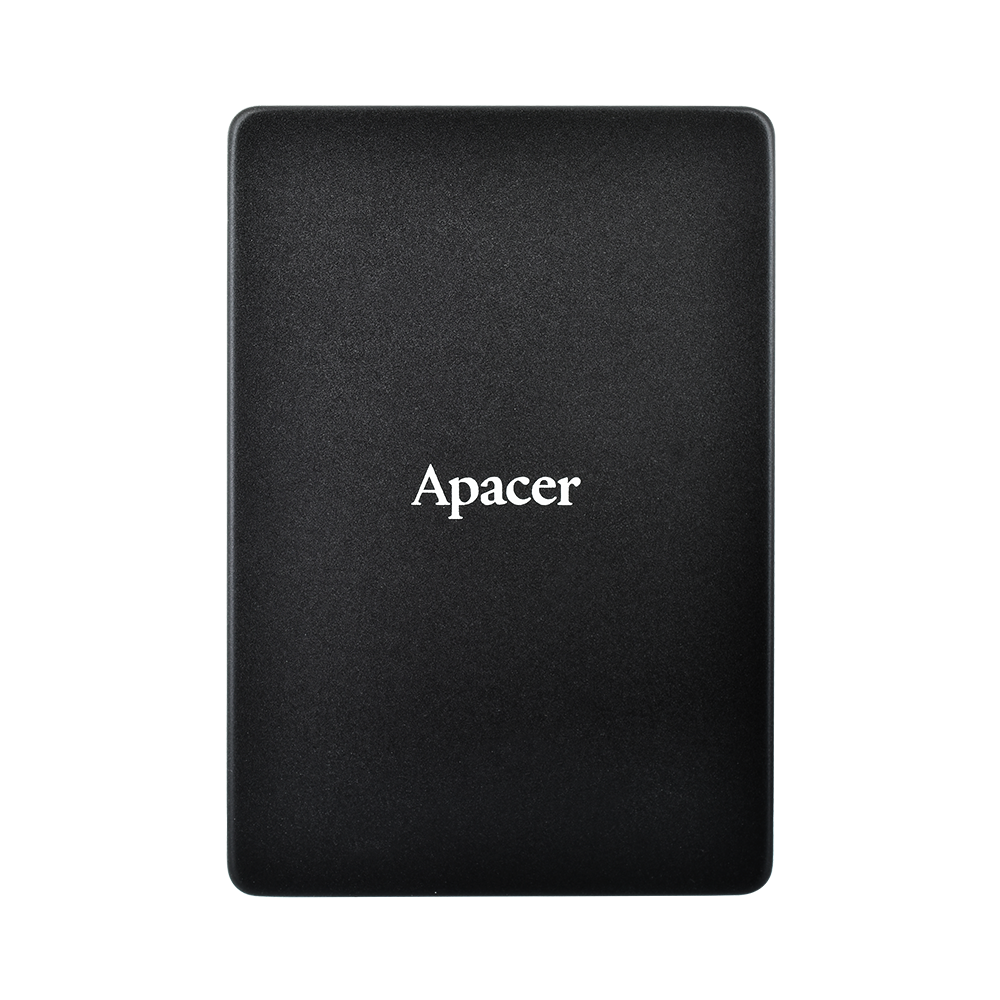

PV140-25

2.5" SSD Drive

PV140-25
  • Adopts advanced LDPC ECC engine with 3D NAND flash memory to improve reliability
  • Global Wear Leveling
  • Flash bad-block management
  • Flash Translation Layer: Page Mapping
  • Supports SSDWidget S.M.A.R.T function
  • Power Failure Management
  • AES 256-bit hardware encryption
  • End-to-End Data Protection
  • TRIM Support
  • Over-Provisioning
  • SMART Read Refresh™
  • NVMe Secure Erase



Industrial PCIe SSD: PV140-25

Apacer PV140-25 is the fastest Solid State Drive (SSD) designed with U.2 mechanical dimensions, providing full compliance with PCIe Gen3 x4 interface and NVMe 1.3 specifications.

Built with a powerful PCIe controller, PV140-25 delivers outstanding performance in data transfer, reaching up to 574,000/266,000 and 3,340/1,175MB/s in IOPS and sequential read/write. PV140-25 utilizes 3D NAND for higher capacity up to 3,840GB, making it the ideal choice for rugged, embedded applications.

Regarding reliability, PV140-25 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. For highly-intensive applications, End-to-End Data Protection ensures that data integrity can be assured at multiple points in the path to enable reliable delivery of data transfers, while Advanced Encryption Standard (AES) ensures data security and provides users with a peace of mind knowing their data is safeguarded at all times.

Spec

  • ModelPV140-25
  • InterfacePCIe Gen3 x4
  • ConnectorU.2 (SFF-8639)
  • Form Factor2.5″
  • NAND Flash Type3D TLC
  • Capacity960 ~ 3840GB
  • External DRAMYes
  • Sustained Read Performance (MB/sec)Up to 3340
  • Sustained Write Performance (MB/sec)Up to 1175
  • ECC EngineLow-Density Parity-Check (LDPC) Code
  • IOPS (4K Random Write)574K
  • Standard Operating Temperature ( °C )0 ~ + 70
  • Extended Operating Temperature ( °C )-40 ~ + 85
  • Storage Temperature ( °C )-40 ~ + 85
  • Thermal SensorYes
  • ShockNon-operation: 1,500(G), half sine wave
  • VibrationNon-operation: 20G, 20~2000 Hz/random
  • Operating Voltage12V ± 5%
  • Power ConsumptionActive mode: 705 mA / Idle mode: 180 mA
  • Dimension (L x W x H )100.00 x 69.85 x 7.00 (mm)
  • MTBF (hours)>3,000,000
  • TechnologyDataRAID™ / DEVSLP / End-to-end Data Protection / NVMe Secure Erase / Over-provisioning / Page Mapping / S.M.A.R.T. / Smart Read Refresh™ / SSDWidget 2.0 / Thermal Sensor / Wide Temperature
  • ApplicationDefense / Factory Automation / Internet of Things / Transportation
