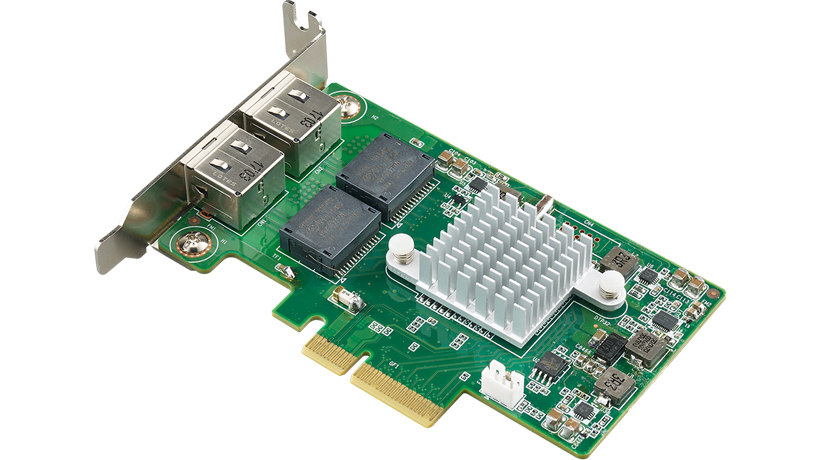

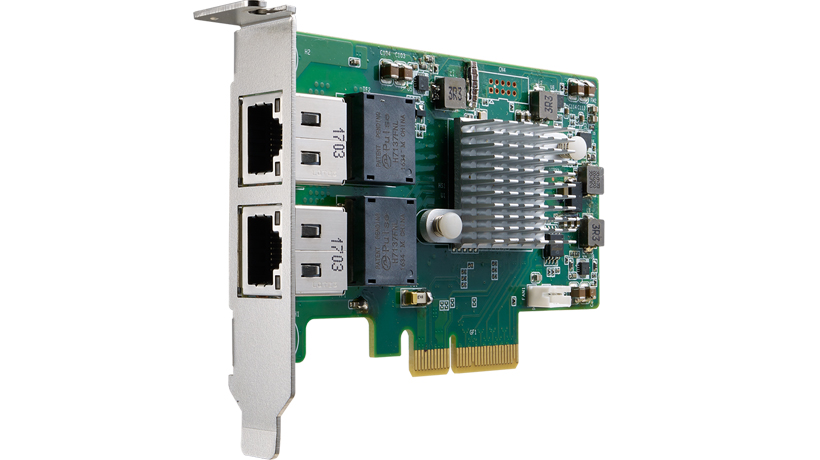

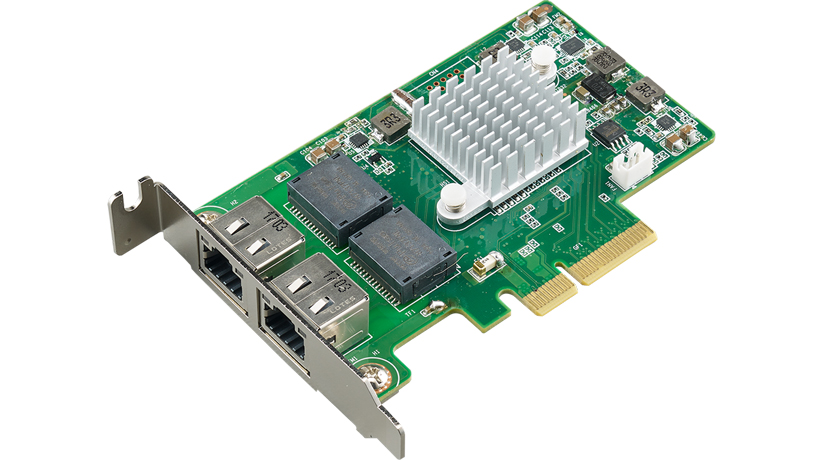

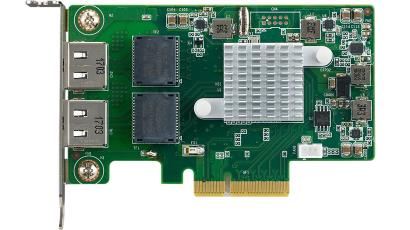

PCIE-1221
PCIE-1221: Dual Port Copper 10GbE Ethernet PCI Express
Dual Port Copper 10GbE Ethernet PCI Express Server Adapter with Intel® X550
- Intel X550 Controller

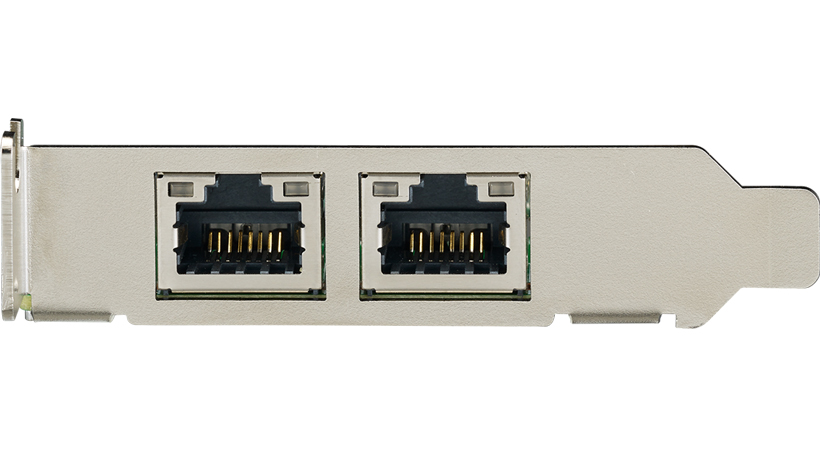

- 2x 10GbE Base-T (RJ45) ports
- PCIe Gen3 x4 host interface
- Advantech small form factor (smaller than low profile)
- Supports SR-IOV based virtualization
High-density 10GbE network expansion designed for virtualized industrial environments and server platforms requiring maximum bandwidth in a compact form factor.
Specifications
| Controller | Controller | Intel® X550 |
|---|---|---|
| Network | Port Number | 2 |
| Ports | 10GbE Base-T (RJ45) | |
| Power | Consumption | Typical: 11W, Max: 13W |
| Host Interface | Interface | PCIe Gen3 x4 |
| Environment | Operating Temp. | 0-55 °C (32-131 °F) |
| Mechanical | Dimensions | 110 x 68.9 mm |
