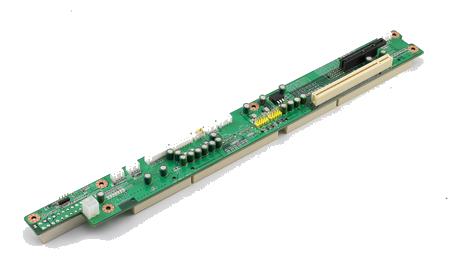

PCE-5B03V
Home
Products
Embedded & Vision Solutions
Industrial Motherboards
Backplane
PCE-5B03V

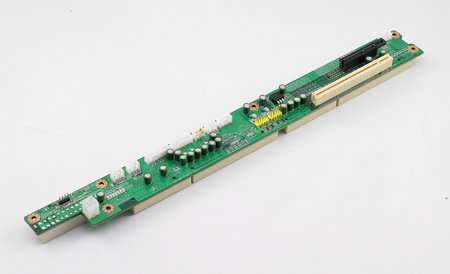

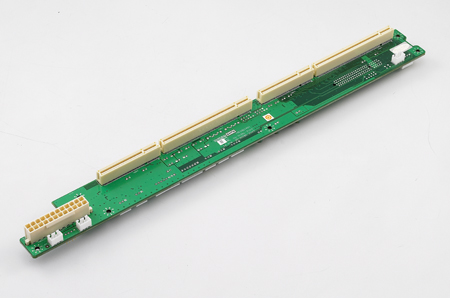

3-slot Butterfly BP for 1U chassis
Overview
Resources
3-slot Butterfly BP for 1U chassis
Segments: 1
One CPU card slot
PCIe slot: One x16
PCI-X slot: N/A
PCI slot: 1
Compatible with IPC chassis: ACP-1320, ACP-1010
PICMG1.3 Full-Size SHB Backplanes_DS_compressed
