P104-GPIO96 Digital I/O Module

FEATURES

–	FPGA-based design with in-the-field reconfigurability
–	96 buffered, programmable digital I/O
–	Byte-wide, nibble-wide and bit-wide port direction control
–	5V logic level
–	8 32-bit counter/timers
–	4 24-bit pulse-width modulators
–	1 PCI Express x1 lane host interface
–	PC/104-Plus form-factor compliant
–	PC/104-Plus (ISA + PCI) stackable expansion
–	-40°C to +85°C operating temperature
–	Universal Driver software support

FEATURES

P104-GPIO96 is a PC/104-Plus general purpose digital I/O module integrating Diamond’s using a high-capacity PCI Express FPGA for maximum density and flexibility.

P104-GPIO96 is a programmable PCI-104 DIO module using a high-capacity (700K gate equivalent) PCI Express FPGA for maximum density and flexibility. The base hardware configuration features 96 digital I/O lines grouped into 12 8-bit ports. All ports have I/O buffers to protect the FPGA and feature 5V logic drive levels. The ports are organized into a combination of byte-wide, nibble-wide, and bit-wide direction control for maximum flexibility and application compatibility.

The built-in FPGA personality provides multiple configuration options. All 96 I/O lines may be used in common I/O mode; Six of these ports can be reconfigured to enable an array of additional features, including 8 32-bit up/down counter/timers with programmable input source and gate, 4 24-bit PWM circuits with 0-100% duty cycle capability and interrupt/latched mode operation.

The flash-based design enables easy field upgrades using a Diamond-provided software utility (no cable or third-party software required!) as well as custom code development. Universal Driver software support (described below) is included for Linux, Windows XP, Windows Embedded CE/Standard.

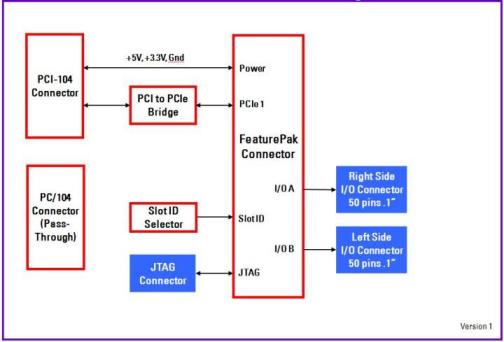

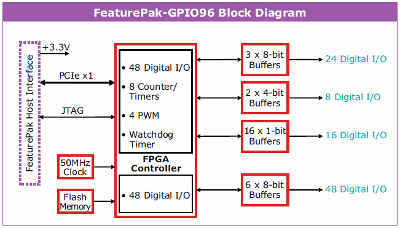

Block Diagrams

Universal Driver Software

Diamond’s exclusive Universal Driver Software is included at no charge along with the P104-GPIO96 I/O module. It provides a high-level programming library for all of our I/O boards, as well as for the data acquisition circuitry on our SBCs and Embedded-Ready Subsystems. All data acquisition features are supported by easy-to-use function calls, resulting in a reduced learning curve and shortened application development time. The Universal Driver works with Linux and Windows XP. Application examples and projects are included for each function, each board, and each operating system, in order to provide a quick starting point for learning and development.

Specifications

Base FPGA	LatticeECP3, 700K gate equivalents
Input clock	50MHz
FPGA code storage	Flash memory, field upgradeable via JTAG
Total I/O lines	96
Primary I/O	48 lines with 3 8-bit and 2 4-bit; configurable pull-up/down resistors
Secondary I/O	48 lines with 6 8-bit buffers; configurable pull-up/down resistors
Counter/timers	8 32-bit up/down counters (alternate mode)
Max counting frequency	(coming soon)
Counter modes	Counter, rate/square-wave generator, pulse-width modulator, programmable one-shot, hardware/software triggered strobe
Output current	Ports A, B & D: 24mA per pin max; 200mA per port max Port C low: 24mA per pin max Port C high: -24mA per pin max Ports E & F: 32mA per pin max
Input current	+/-340uA max
Form Factor	PC/104-Plus
Expansion	PC/104-Plus (ISA + PCI) stackable expansion
Dimensions	3.55 x 3.775 in. (90 x 96 mm)
Power supply	3.3VDC ±5%
Operating temperature	-40°C to +85°C standard
Weight	3.4oz (96g)
RoHS	Compliant
