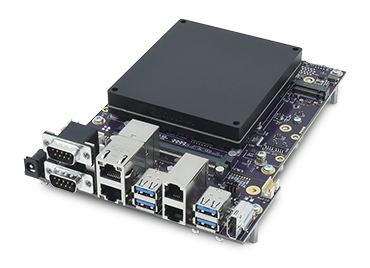

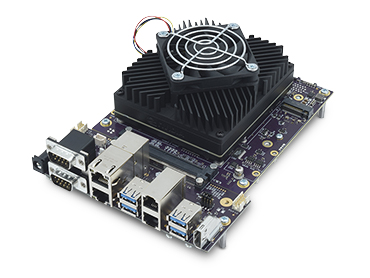

Diamond Systems Osbourne – Carrier and Development Kit for NVIDIA Jetson AGX Orin
- Carrier board for NVIDIA Jetson AGX Orin 32GB/64GB modules
- 10Gb Ethernet and 1Gb Ethernet ports
- Dual minicard sockets with PCIe and USB interfaces
- Dual M.2 sockets for NVMe storage (M-key) and network connectivity (E-key)
- Industry-standard camera adapter socket for CSI, GMSL, and other cameras
- Wide 7-20VDC input voltage and -25°C to +80°C operating temperature

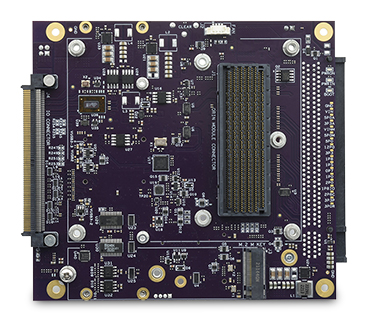

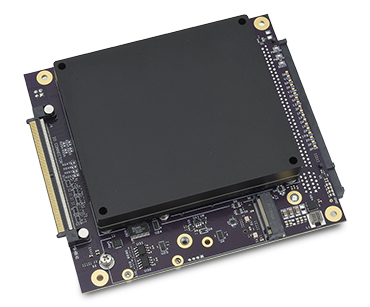

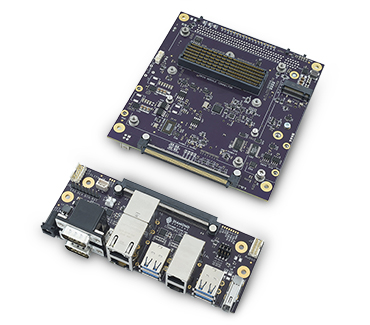

Osbourne is a versatile carrier board for the NVIDIA Jetson AGX Orin high-performance GPU module. It provides access to all I/O features of the Orin module and includes numerous sockets for I/O expansion. Designed for commercial, industrial, and rugged military use, Osbourne offers a flexible I/O connector design for standard and custom breakout boards.
Specifications Summary
| Processor System | Module | NVIDIA Jetson AGX Orin 32GB / 64GB |
|---|---|---|
| Memory | 32GB or 64GB 256-bit LPDDR5 (on module) | |
| Network | LAN Ports | 1x 10GbE, 1x 1GbE |
| I/O Interfaces | USB | 3x USB 3.2, 4x USB 2.0 |
| Display | 1x HDMI 2.0a/b | |
| Serial & DIO | 2x RS-232/422/485, 2x RS-232, 8x Digital I/O | |
| CAN & Audio | 2x CAN 2.0, ALC5640 Audio I/O | |
| Expansion | Storage & Network | 1x M.2 2280/2242 M-Key, 1x M.2 2230 E-Key, 2x mPCIe |
| Camera | 4x 4-lane or 8x 2-lane CSI-2 interface | |
| Power | Input Voltage | 7 – 20 VDC |
| Mechanical & Env. | Operating Temp. | -25 ~ 80 °C |
| Dimensions | 120 x 115 mm |
