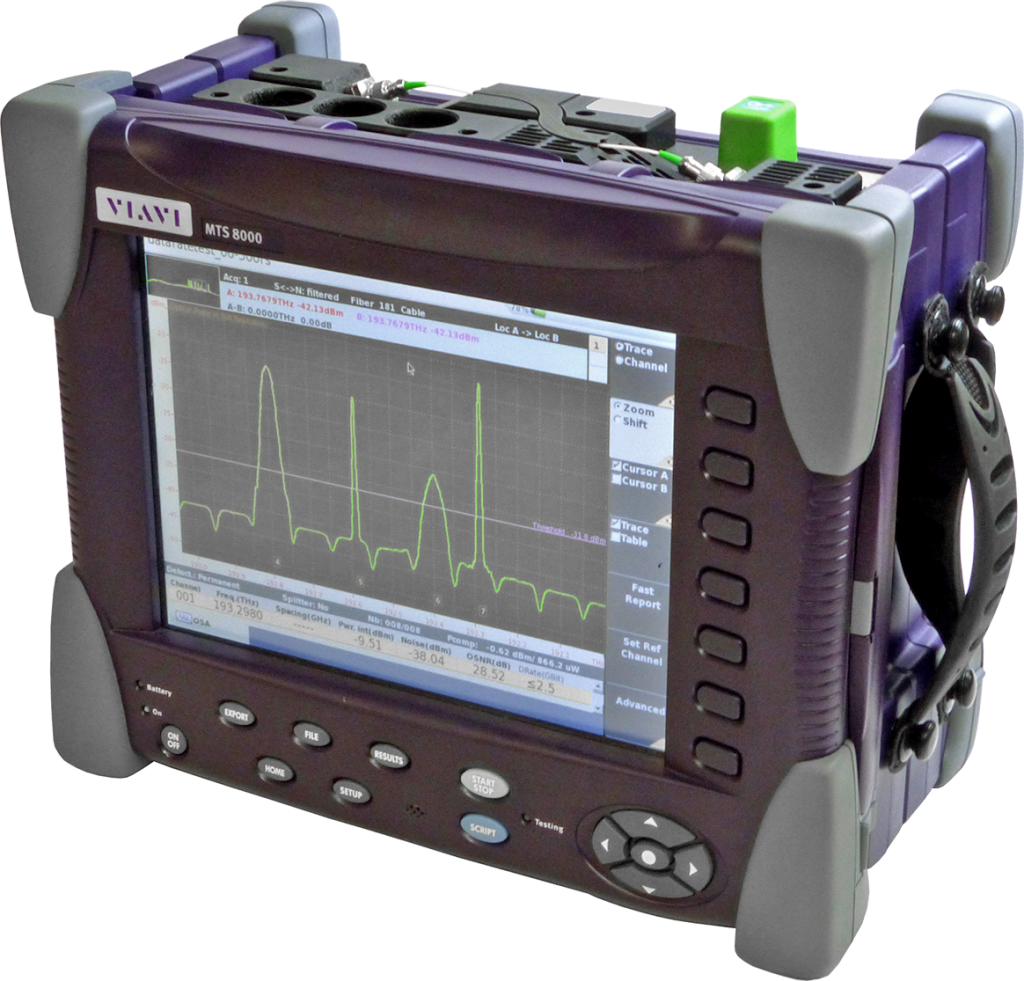

OSA Modules: In-service Pol-Mux OSCA-710 for T-BERD/MTS-8000 Platforms

The VIAVI Pol-Mux OSCA-710 is the first Optical Spectrum and Correlation Analyzer that can perform in-band OSNR measurement in high speed, ROADM based DWDM networks using polarization multiplexing transmission formats without shutting down optical channels. This module uses a novel, proprietary spectral correlation measurement technique (VIAVI pat.) along with an ultra-high resolution coherent receiver for complete signal characterization in amplitude, frequency, phase and polarization.

Highlights:

• Characterize and diagnose 40G, 100G, 200G, and 400G traffic without shutting down the network or individual channels.
• Only analyzer to incorporate spectral correlation technique.
• First instrument that measures in-service, in-band OSNR on pol-mux signals.
• First instrument that measures per channel, in-service, chromatic dispersion.
• Supports legacy traffic as well as upcoming modulation and optical spectrum management schemes.

Applications:

• Installation, commissioning and maintenance testing in Core and metro DWDM networks with or without ROADMs.
• Testing undersea communication links.
• Qualification of any fiber optic link utilizing coherent detection.
• Service activation, optical launch power optimization and in-service Generalized Optical Signal to Noise Ratio (G-OSNR) validation for Submarine Cable Networks.

Key Features:

• Power, wavelength, and in-band OSNR measurement for any kind of data rates and modulation schemes, including polarization-multiplexed signals.
• Spectral correlation measurement (SCorM) technique.
• Supports PM-BPSK, PM-QPSK, and PM-xQAM modulation formats used in 100, 200, and 400G systems.
• Tolerant of high chromatic dispersion (CD) and polarization mode dispersion (PMD).
• Measures per channel in-service CD.
• Coherent OSA design with ultra-high resolution bandwidth for testing Nyquist- and Super-Channels.
• WDM-Expert software for automatic identification of signal type (data rate) in mixed traffic pipes.
