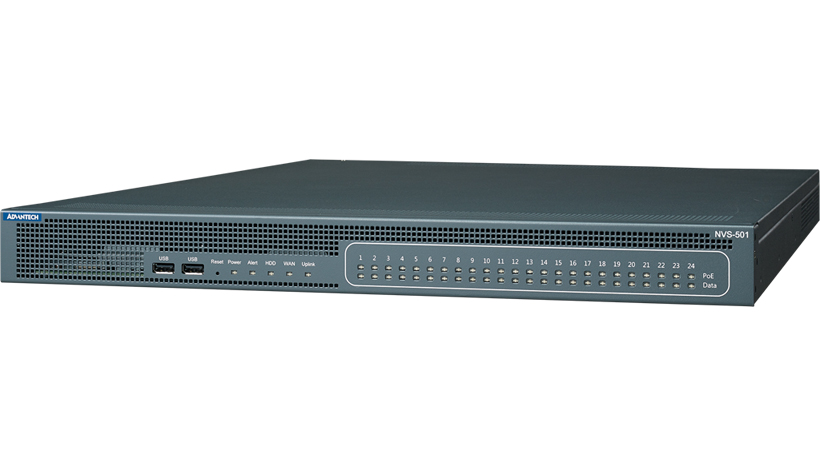

NVS-501
High Performance Video Recorder with PoE++Switch
High Performance Video Recorder with PoE++Switch
- Built in high power 802.3at PoE+ Switch for all 16 or 24 ports
- 10/100/1000 Base uplink port
- Supports Intel up to 9th Gen Core™ I processor with Intel QM370chipset
- Supports up to two 260-pin SO-DIMM up to 64GB DDR4 2666 SDRAMbased on different CPU platform
- Supports RAID 0,1,5,10
- Supports two M.2 2280 SATA SSD for OS storage and backup
- Features USB 3.0 & USB 2.0
- Supports two display of HDMI 2.0 x 2
- Extra PCIe M.2 M Key slot for user’s extended application
NVS-501, up to 9th generation Intel core based professional NVR, combines server, network switch and camera power supply (PoE+) into one system. It embedded 16 to 24 ports of PoE Lan for camera links with high power budget, and also supports up to four 3.5″ HDD up to32TB storage capability.
