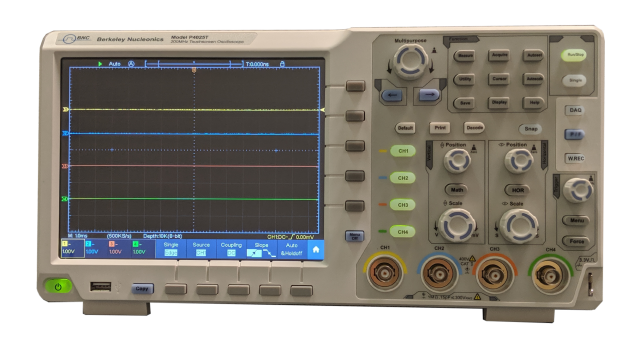

Model P4025T | 200 MHz 4 Channel Touchscreen Digital Oscilloscope
The Model P4025T is a 200 MHz digital oscilloscope packed with measurement modes and features. The display doubles as a touchscreen allowing hand gestures like zooming in on a waveform. The Model P4025 offers 4 independent channels.
Applications
- Electronic Circuit Debugging
- Education and Training
- Circuit Testing
- Design and Manufacture
- Automobile Maintenance and Testing
Features
- 200 MHz Bandwidth
- 1 GS/s Sample Rate
- 14-bit High-Resolution ADC
- 40M Record Length, 70,000 wfms/s Waveform Refresh Rate
- 8-inch 800 x 600 High-Resolution LCD Touchscreen
- SCPI and LabVIEW Interfaces
SPECIFICATIONS
| Display | 8″ color LCD, 800 x 600 pixels display |
| Bandwidth | 200 MHz |
| Channels | 4 |
| Sample rate | 1 GS/s |
| Record length | 40M |
| Rise Time (at input, typical) | ≤ 1.7 ns |
| Input Impedance | 1 MΩ ± 2%, in parallel with 15 pF ± 5 pF |
| Communication Interface | USB Host, USB Device, USB Port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) |
| Maximum capacitance measured | 100 μF |
| Power upply | 100 V – 240 V AC, 50/60 Hz, CAT II |
| Dimensions (H x W x D) | 340 x 177 x 90 (mm) |
| Weight | 645 g |
