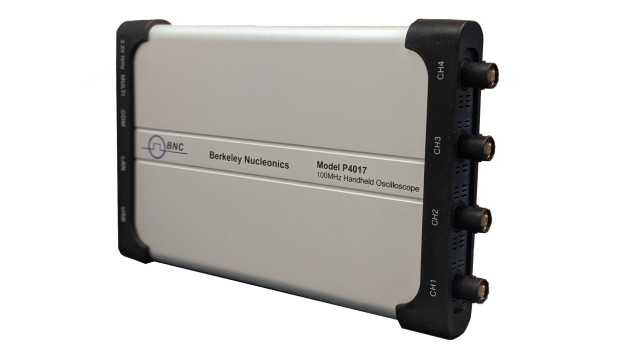

Model P4017 | 100 MHz USB Oscilloscope
The BNC Model P4017 USB Oscilloscope offers the user a compact 4-channel, 100 MHz, 1 GS/s portable oscilloscope that connects directly with your PC through a standard USB port. The P4017 provides 100 MHz bandwidth for characterization and troubleshooting of fast circuits. The real-time sample rate is 1 GS/s and the scope can be triggered in various modes - edge, video, slope, pulse, and alternate. The included software offers a convenient method for operating the scope, saving settings, and providing screen images to colleagues. Call or email for your demo today.
Applications
- Classroom Education
- Engineering Training
- Circuit Function Testing
- Debug Designs / Design Reviews
Features
- 4 Channels
- Max 10M Record Length
- USB Data Transmission
- USB Bus Powering
- LAN Remote Control
- Ultra-Thin Body Design, Easy Portability
- SCPI Supported
SPECIFICATIONS
| Bandwidth | 100 MHz |
| Channels | 4 |
| Sample rate | 1 GS/s |
| Record length | 5M |
| DC Gain Accuracy | ±3% |
| DC Accuracy | Average ≥16: ±(3% reading + 0.05div) for △T |
| Trigger Type | Edge, Pulse, Video, Slope, and Alternate |
| Trigger Mode | Auto, Normal, and Single |
| Power source | 5.0 V/1 A |
| Dimensions (H x W x D) | 190 × 120 × 18 (mm) |
| Weight | 0.3 kg |
*Subject to change without notice.
