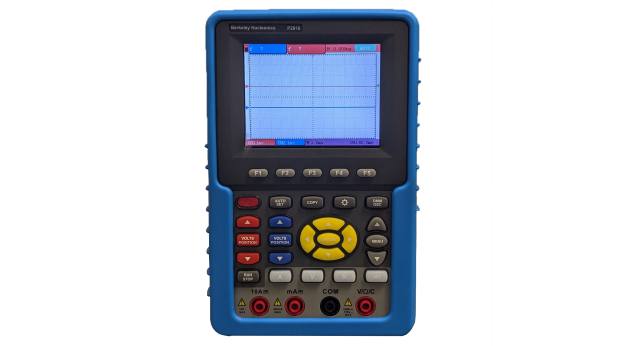

Model P2016 Handheld Digital Storage Oscilloscope
The Model P2016 is a handheld oscilloscope that offers users 100 MHz bandwidth for evaluating fast signals and designs. The unit provides users with two independent channels and a built-in multimeter. The DMM offers manual or auto-ranging modes for measuring AC and DC voltage to 400 V, AC and DC current to 10 A, resistance to 40 MΩ, and capacitance to 100 μF. The oscilloscope has a maximum real-time sample rate of 100 MS/s and a record length of 6,000 points-per-channel for acquiring detailed waveforms. Call or email for your demo today!
Applications
- Electronic Circuit Debugging
- Education and Training
- Circuit Testing
- Design and Manufacture
- Automobile Maintenance and Testing
Features
- 2-in-1 (DSO + Multimeter)
- Auto-Scale Function
- 20 Group Automatic Measurement Options
- USB Data Transmission Supported
- Rechargeable Li-ion Battery (6 hours backup)
- Waveform Record and Replay
- Multimeter Newly Supported SCPI
SPECIFICATIONS
| Display | 3.7″ color TFT-LCD |
| Bandwidth | 100 MHz |
| Channels | 2 |
| Sample rate | 1 GS/s |
| Record length | 6,000 points-per-channel |
| Maximum AC and DC voltage measured | 400 V |
| Maximum AC and DC current measured | 10 A |
| Maximum resistance measured | 40 MΩ |
| Maximum capacitance measured | 100 μF |
| Power source | Rechargeable lithium-ion battery or AC adapter for 100 to 240V, 50/60 Hz |
| Dimensions (H x W x D) | 180 x 115 x 40 (mm) |
| Weight | 645 g |
