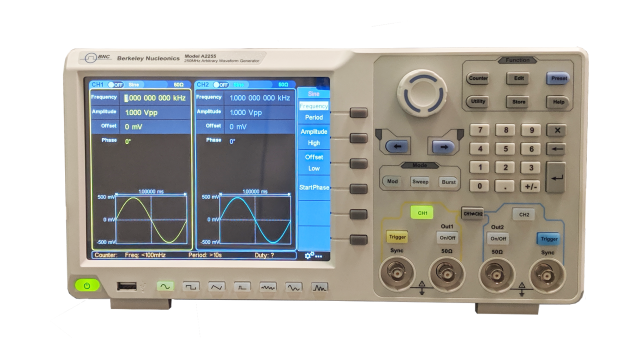

Model A2255 2 Channel 250 MHz Arbitrary Waveform Generator
The Model A2255 is a 2-channel, 250 MHz Arbitrary Waveform Generator used for general-purpose R&D and benchtop testing.
| Applications |
- Electronic Circuit Debugging
- Education and Training
- Circuit Testing
- Design and Manufacture
- Automobile Maintenance and Testing
Features
- Max 1.25 GS/s Sample Rate
- Vertical Resolution: 14 bits, max 1M Arb Waveform Length
- 1 μHz Frequency Resolution
- 8-inch (800 × 600 pixels) Multi-Touch Screen
- High-Accuracy Frequency Counter, Supported Range 100 mHz – 200 MHz
SPECIFICATIONS
| Display | 8” 800 x 600 pixels touch screen LCD |
| Frequency Output | 250 MHz |
| Channels | 2 |
| Sample rate | 1.25 GS/s |
| Vertical Resolution | 14 bits |
| Rise / Fall Time | < 5 ns |
| Standard Waveform | sine, square, pulse, ramp, noise, and harmonic |
| Accuracy | ±1 ppm, 0°C – 40°C |
| Communication Interface | USB Host, USB Device, and LAN |
| Power source | Rechargeable lithium-ion battery or AC adapter for 100 to 240 V, 50/60 Hz |
| Dimensions (H x W x D) | 340 x 177 x 90 (mm) |
| Weight | 2.50 kg |
