MilPAC III

The MilPAC III is a transportable, deployable workhorse for C4ISR / C5ISR, GIS and Geospacial applications. Rugged aluminum and composite construction provides survivability in deployed environments 24/7 and the ruggedness to withstand transport handling on wheeled and tracked land vehicles, fixed and rotary winged air vehicles.

MilPAC III

FULLY RUGGED CONSTRUCTION

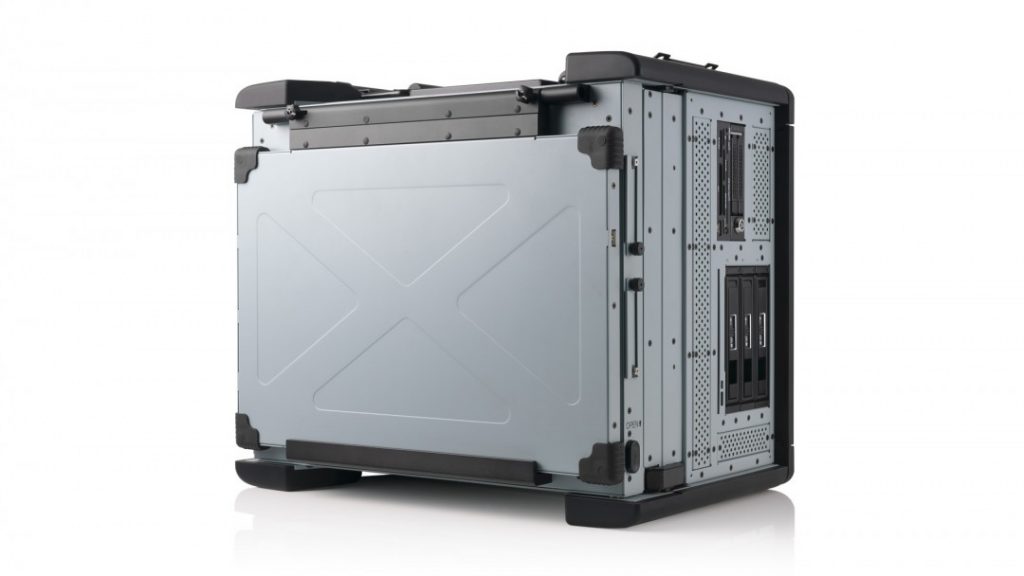

The MilPAC III is built to withstand harsh environments, transport handling on wheeled and tracked land vehicles, and transport handling on fixed and rotary winged air vehicles. Its rugged aluminum and composite construction provides survivability in deployed environments 24/7.

SERIOUS POWER

In addition to its highly rugged build, it packs some serious computing power with 3 full HD displays and high efficiency thermostatic convention cooling and airflow systems into an easily transportable package.


The MilPAC III is a transportable, deployable workhorse for C4ISR / C5ISR, GIS and Geospacial applications. Rugged aluminum and composite construction provides survivability in deployed environments 24/7 and the ruggedness to withstand transport handling on wheeled and tracked land vehicles, fixed and rotary winged air vehicles.

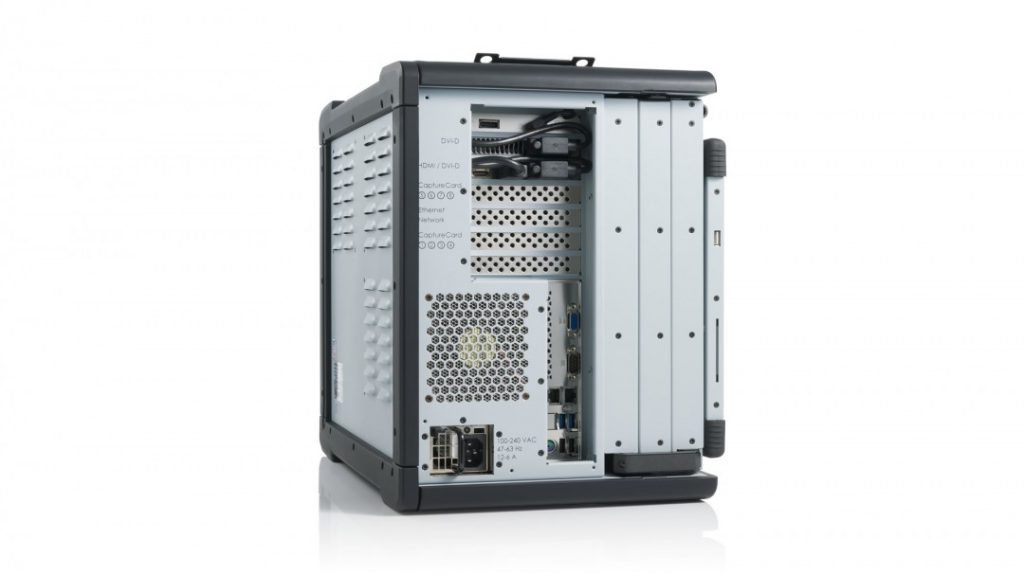

High efficiency thermostatic convection cooling and airflow systems result in a quiet, professional system at normal ambient temperatures that can also perform when the environment gets extreme.

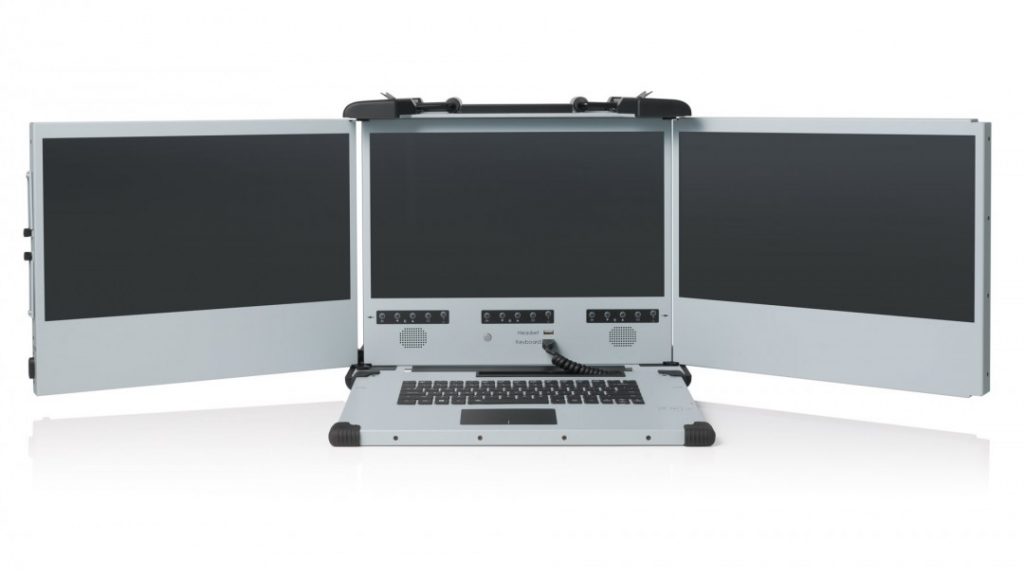

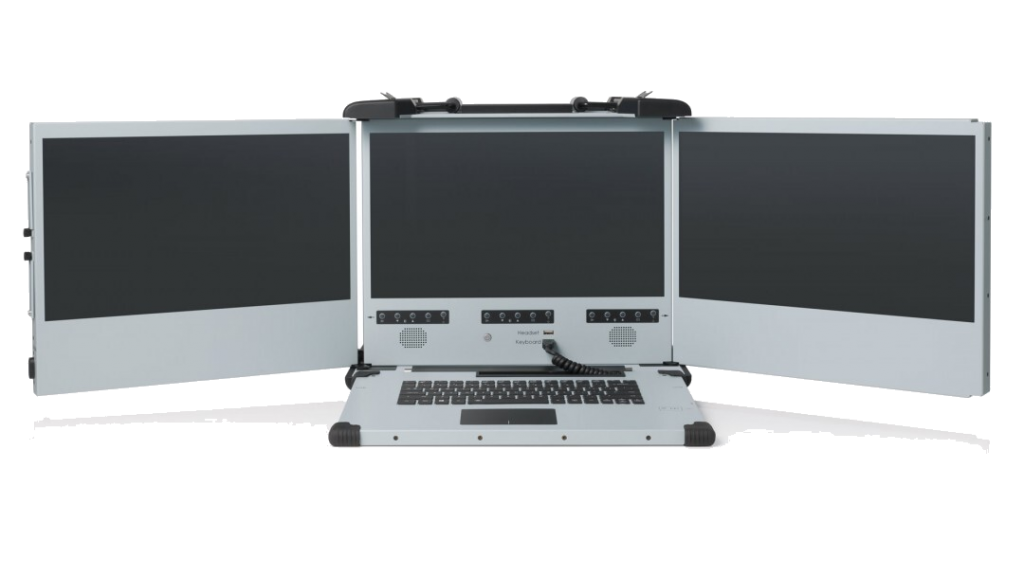

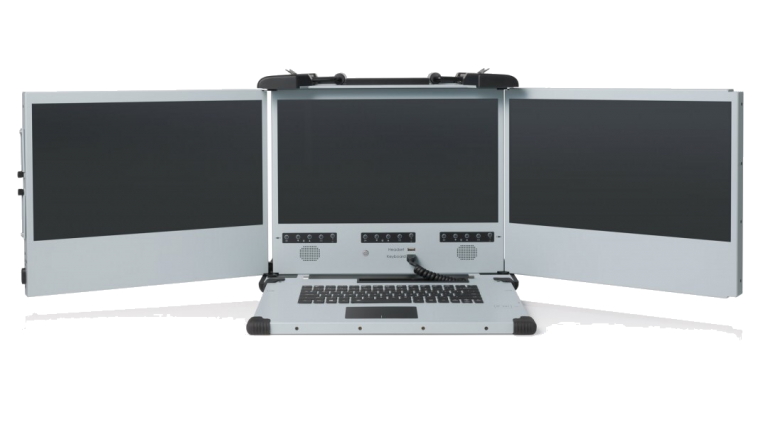

Three 17.3″ HD displays give a working resolution of 5760 x 1080. Outputs for each display enable mirroring to external HD TV or projector systems, and multiple SD/HD video capture inputs make the MilPAC III the hub of an integrated C4ISR system. Add-on building block display modules are also available in a separate shipping case to expand the displays to a 9-display 3 x 3 configuration, or 5760 x 3240 scene space.

The MilPAC III is highly configurable; please contact us to optimize your specifications.

TECHNICAL SPECIFICATIONS

PRODUCTMILPAC III
DISPLAYTRIPLE 17.3″ FULL HD 1920 X 1080
CPULATEST SINGLE/DUAL INTEL® XEON, INTEL® CORE, OR AMD RYZEN™ 7
MEMORYUP TO 1TB DDR4 RAM
GRAPHICS CARDINTEGRATED HD GRAPHIC CONTROLLER
OR APPLICATION-SPECIFIC GRAPHIC CONTROLLER
EXPANSION SLOTSUP TO 7
STORAGE3X REMOVABLE STORAGE DRIVES, UP TO 36TB
POWER SUPPLY1000W INTERNAL 110/220V 50/60HZ AUTO-SWITCHING POWER SUPPLY, AC POWER CORD, QUAD-FAN COOLING SYSTEM
DIMENSIONSFOLDED:
HEIGHT: 14.5″ (368MM)
WIDTH: 17.125″ (435MM)
DEPTH: 11.75″ (298.5MM)

DEPLOYED:
HEIGHT: 14.5″ (368MM)
WIDTH: 43.0″ (1092MM)
DEPTH: 11.75″ (298.5MM)
WEIGHT~65 LBS (29.5KG)
TOUCH OPTIONTOUCHSCREEN OPTIONAL
WIFI / BLUETOOTHWIFI AND BLUETOOTH OPTIONAL
RAIDRAID 0/1/5/10
KEYBOARD & MOUSE105-KEY KEYBOARD WITH INTEGRATED TOUCHPAD. AVAILABLE IN VARIETY OF LANGUAGES.
TRANSIT CASEINCLUDES PADDED ROLLING TRANSIT CASE
OPTIONAL: HARDENED CASE AVAILABLE
QUALITYISO 9001
REGULATIONCE, FCC, CCC
WARRANTY1 YEAR PARTS AND LABOR
CUSTOMIZATIONMILITARY CONNECTORS, CUSTOM I/O, TRACKBALL, DUST FILTER, AND MORE.
