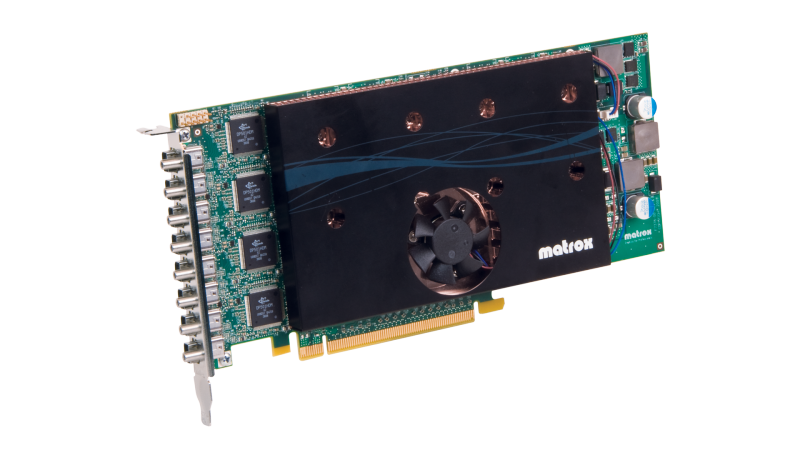

M9188 PCIe x16
Matrox M-Series
Matrox M-Series
Drive Multi-Display Applications with Extraordinary Performance
The Matrox M9188 PCIe x16 multi-display octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world’s first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort™ and DVI Single-Link outputs to ensure wide compatibility with today’s monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.
Matrox M9188 PCIe x16 at a Glance
- High-resolution eight DisplayPort or DVI monitor support: Support resolutions up to 2560×1600 (DisplayPort) and 1920×1200 (DVI) per output
- Native PCI Express® (PCIe) x16 performance: Maximum bandwidth to ensure best performance
- 2 GB of memory: For enhanced performance in demanding multi-monitor applications
- ATX form factor
- Stretched and independent desktop modes : Expand your desktop across multiple monitors or set each monitor independent of each other
- Edge Overlap: Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
- M-Series multi-card support1 : Add an additional M-Series card into the same system to drive up to 16 displays from two cards
- Joined graphics card mode2 : Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
- Matrox Clone : View a copy of one display on the other displays
- Wide enterprise flexibility: Unified driver package compatible with other Matrox products
- Matrox PowerDesk software: Easily configure and manage program windows on multiple monitors
- Multiple operating system support: Display drivers for Microsoft® Windows® 10 (32-bit, 64-bit; non-WHQL), Windows Server® 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista® (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux®3
Hardware included
- Matrox M9188 PCIe x16 graphics card (with factory-installed ATX bracket)
- Eight Mini DisplayPort to DisplayPort adapters
- Eight DisplayPort to DVI adapters
Software included
- CD with link to latest Matrox display drivers and PowerDesk desktop management software
Matrox PowerDesk for M-Series
Effectively manage your computing environment with Matrox PowerDesk software. Included with all M-Series graphics cards, Matrox PowerDesk empowers you to manage and customize your multi-display setup for the ultimate computing experience.
