M9148 LP PCIe x16
Matrox M-Series
Matrox M-Series
Drive Multi-Display Applications with Extraordinary Performance

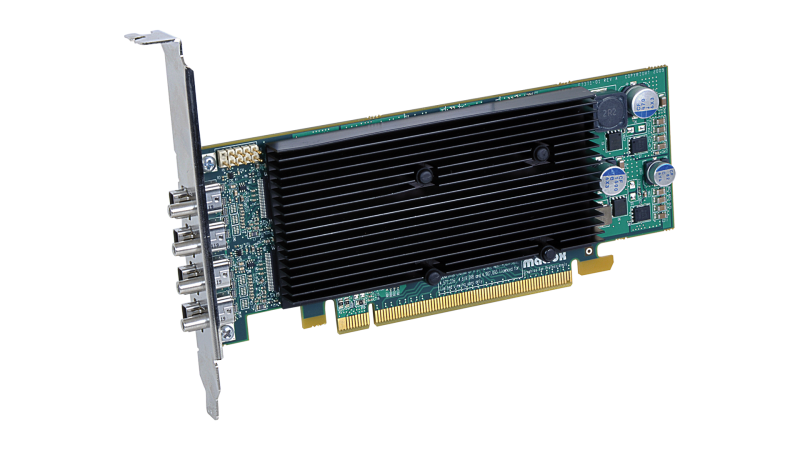

The Matrox M9148 LP PCIe x16 quad graphics card renders pristine image quality on up to four DisplayPort™ monitors at resolutions up to 2560×1600 per output for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, the M9148 LP PCIe x16 card supports both independent or stretched desktop modes and drives business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M9148 graphics card to support up to eight DisplayPort monitors from a single system.
Matrox M9148 LP PCIe x16 at a Glance
- High-resolution four DisplayPort monitor support: Support resolutions up to 2560×1600 per output
- Native PCI express x16 performance: Maximum bandwidth to ensure best performance
- 1 GB of memory: For enhanced performance in demanding multi-monitor applications
- Low-profile form factor: To fit in a wide variety of systems; includes bracket for full-height ATX form factor
- Passive cooling and low power consumption: Fanless design eliminates noise and increases product reliability
- Stretched and independent desktop modes : Expand your desktop across multiple monitors or set each monitor independent of each other
- Edge Overlap: Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
- M-Series multi-card support1 : Add an additional M-Series card into the same system to drive up to 12 displays from two cards
- Joined graphics card mode2 : Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
- Matrox Clone : View a copy of one display on the other displays
- Wide enterprise flexibility: Unified driver package compatible with other Matrox products
- Matrox PowerDesk software: Easily configure and manage program windows on multiple monitors
- Multiple operating system support : Display drivers for Microsoft® Windows® 10 (32-bit, 64-bit; non-WHQL), Windows Server® 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista® (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux®3
Hardware included
- Matrox M9148 LP PCIe x16 graphics card with factory-installed ATX bracket (low-profile bracket in the box)
- Four miniDP to DP adapters
- Four DP to DVI connector adapters
Software included
- CD with link to latest Matrox display drivers and PowerDesk desktop management software
