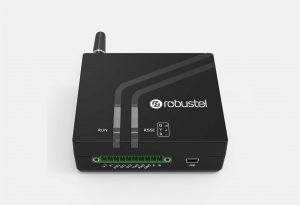

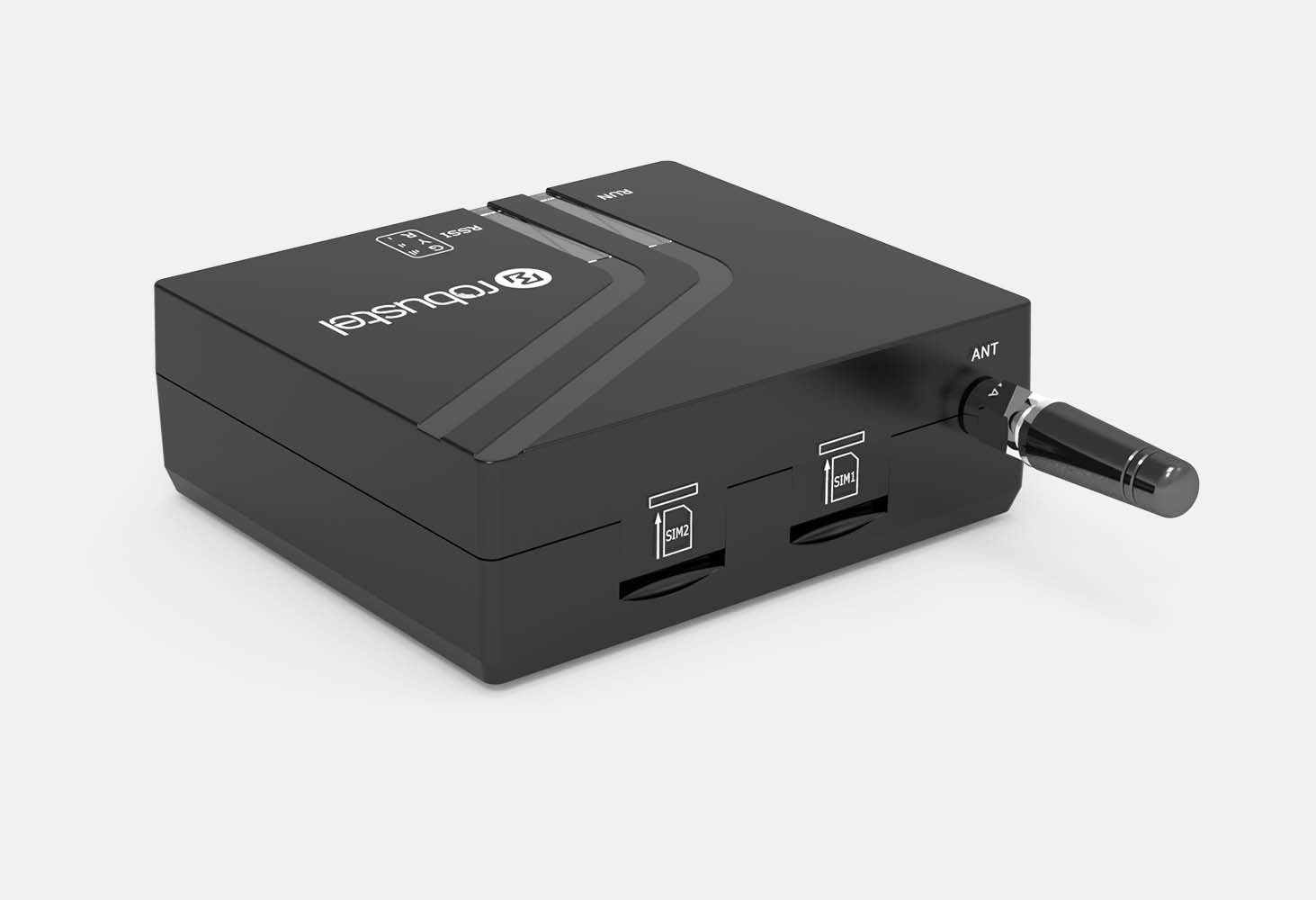

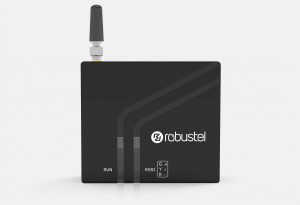

M1200 Industrial Gateway
The M1200 Industrial LTE Gateway provides users with stable network connectivity and data transmission for easy Industrial Automation.
Connect your machines – as a universal gateway, it can be applied across many verticals, such as Energy, Transportation and Agriculture, to name a few.
The Robustel M1200 Industrial LTE Gateway is a rugged industrial IoT modem, designed for connecting devices to Cat-M1 or NB-IoT networks globally. It is based on GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE/Cat.M1/Cat.NB1 networks.
The M1200 enables remote data transmission of local serial ports and I/O, and supports such interfaces as RS-232, RS-485 and mini-USB.
This dual-SIM gateway provides users with stable network connectivity and data transmission.
This dual-SIM gateway provides users with stable network connectivity and data transmission.
Key Features
- Auto GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE/Cat.M1/Cat.NB1 connections (No AT command required)
- Dual-SIM backup (push-push or MFF type optional)
- IPsec/OpenVPN/GRE/L2TP/PPTP
- Transparent TCP and UDP protocol connections
- ICMP, DDNS, SNTP and Telnet
- Modbus RTU to TCP
- Auto rebooting via SMS and Timer
- Configuration and firmware upgrading via USB and RCMS
- Sending SMS if DI is triggered
- Robust industrial design (9 to 36V DC, -40 to +75 °C extended operating temperature, desktop or wall mounting or DIN rail mounting)
- Support bridge (modem only) mode, via serial port or USB port
Specification
| Cellular Interface | |
| Number of antennas | 1 |
| Connector | SMA-K |
| SIM slot | 2 (3.0 V & 1.8 V) |
| Standards | GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE/Cat.M1/Cat.NB1 |
| Serial Interface | |
| Number of ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 10-pin 3.5 mm RP female socket with lock |
| Baud rate | 300 bps to 115200 bps |
| RS-232 | TxD, RxD, GND |
| RS-485 | A (Data+), B (Data-) |
| Digital Input / Digital Output | |
| Number of ports | 2 x DI (wet contact) + 1 x DO (wet contact) |
| Connector | 10-pin 3.5 mm RP female socket with lock |
| ESD withstand level | contact: ±6 K, air: ±8 K |
| Absolute maximum VDC | “V+” +5V DC (DI), 30V DC (DO) |
| USB Port | |
| Number of ports | 1 x Mini USB for configuration and power supply |
| Connector | Mini Female |
| Speed | 2.0 high speed up to 480 Mbit/s |
| Others | |
| LED indicators | 1 x RUN + 1 x RSSI (red/green bi-color light) |
| Built-in | RTC, Watchdog, Timer |
| Software (Basic features of RobustOS) | |
| Network protocols | PPP, TCP, UDP, ICMP, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
| App Center (Available Apps for RobustOS) | |
| Apps* | Language, RobustLink |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| Power Supply and Consumption | |
| Connector | 10-pin 3.5 mm RP female socket with lock |
| Input voltage | 9 to 36V DC |
| Power consumption | Idle: 50 to 70 mA@12 V Data link: 300 mA (peak) @12 V |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Plastic, 106 g |
| Dimensions | 85 x 75 x 28.5 mm |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Approvals | |
| Regulatory | CE, RCM, FCC, PTCRB, IC |
| Carrier | AT&T |
| Environmental | RoHS 2.0, WEEE |
| EMI | EN 55032: 2015 (CE) Class B
EN 55032: 2015 (RE) Class B |
| EMS | IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3
IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2 |
