KU-BAND TX TO KU-BAND RX, RUGGEDISED SATELLITE SIMULATOR SYSTEM – SYNTHESISED LO

RSS-01490330-KU

KU-BAND TX TO KU-BAND RX, RUGGEDISED SATELLITE SIMULATOR SYSTEM – SYNTHESISED LO

Uplink Frequency Range: 12750 – 14500MHz         Downlink Frequency Range: 10700 – 12750MHz

The Ruggedised Satellite Simulator is portable thereby facilitating the testing and calibration of terminals off-satellite.

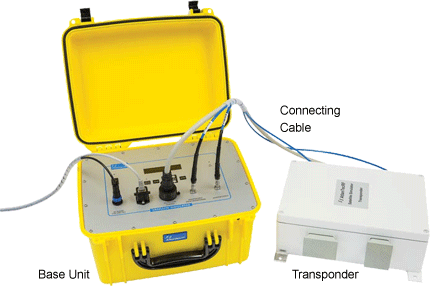

The base control unit is a weatherised, portable instrument with the capability of both local and remote, ethernet control and this is connected to a mast mounted transponder via a power and data cable.

The transponder communicates with the system under test (SUT) via appropriately polarised gain horns, receiving at the SUT transmit (Tx) frequency and transmitting at the SUT receive (Rx) frequency, thereby completing the loop-back without satellite involvement.
