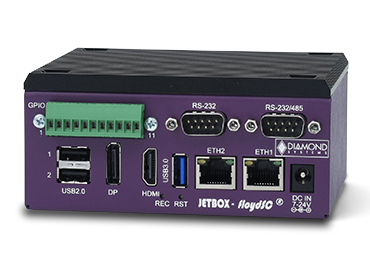

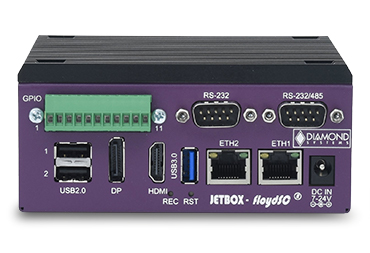

Diamond Systems JetBox-FloydSC – Compact NVIDIA Jetson AI-at-the-Edge System
- Choice of NVIDIA Jetson Nano, NX, or TX2 NX modules
- Compact steel + aluminum enclosure with integrated heat sink
- Single or Dual Gigabit Ethernet ports (depending on module)
- Display options: 1x HDMI and 1x DisplayPort
- Multiple I/O: USB 3.0, USB 2.0, RS-232, RS-232/485, and 8x GPIO
- 1x M.2 2280/2242 M-Key socket for NVMe storage expansion
- Wide 7-24VDC input voltage and extended operating temperature
JetBox-FloydSC provides a complete deployable solution for AI at the edge utilizing NVIDIA Jetson compact GPU modules. The system integrates the Floyd SC carrier board and the selected Jetson module with Linux OS pre-loaded into a fanless, rugged enclosure. With robust I/O and expansion capabilities, it is designed for demanding industrial applications requiring reliable AI inferencing.
Specifications Summary
| Processor System | CPU & GPU | NVIDIA Jetson Nano, Xavier NX, or TX2 NX |
|---|---|---|
| Memory | Dependent on installed Jetson module | |
| Network | LAN Ports | Up to 2x 10/100/1000 Mbps Gigabit Ethernet |
| I/O Interfaces | USB | 1x USB 3.0, 2x USB 2.0 |
| Display | 1x HDMI 2.0a/b, 1x DisplayPort 1.2a | |
| Serial & DIO | 1x RS-232, 1x RS-232/485, 8x Digital I/O, 1x CAN | |
| Expansion | Storage | 1x M.2 2280 / 2242 M-Key (PCIe x4) |
| Camera | 3x 2-lane CSI-2 camera interfaces | |
| Power | Input Voltage | 7 – 24 VDC |
| Mechanical & Env. | Operating Temp. | -25 ~ 70 °C (Ambient) |
| Dimensions | 124 x 99.5 x 56 mm |
