ETERNUS AB6100

Data-centric Storage

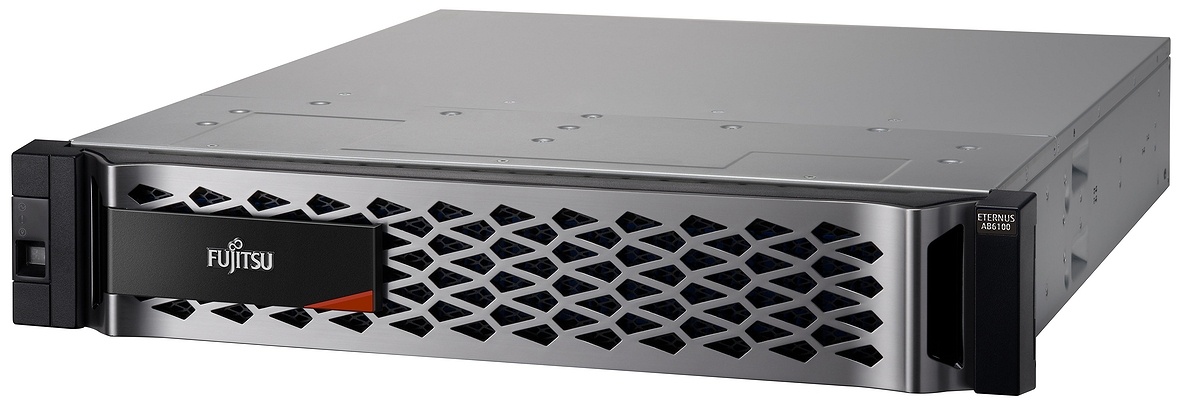

FUJITSU Storage ETERNUS AB6100

• End to end NVMe. Best for enterprise customers running data analyses and performance databases
• Max No. of controllers: 2
• Maximum storage capacity of up to 367 TB of NVMe capacity
• Maximum up to 2 million IOPS
• Max No. of drives: 24

Accelerates Business Applications	Continuous availability	Flexible configuration Options
Accelerate write IOPS and read/write throughput with an end-to-end NVMe storage platform that’s purpose-built for high-performance Get twice the performance for your high-performance workloads, such as Oracle and BeeGFS, compared to SAS-based all-flash arrays.	ETERNUS AB6100 storage systems enable you to achieve greater than 99.9999% availability and provide data integrity and security Extensive capturing of diagnostic data provides comprehensive fault isolation and simplifies analysis of unanticipated events Drive rebuild continues even when an unreadable sector or second failure is encountered	Enables the automation and agility that are needed in the DevOps-based IT revolution, A Linux-based Docker Container service to embed applications on the ETERNUS AB6100. It enables cost-effective converged infrastructure for targeted workloads. Examples include applications related to analytics, video surveillance, and HPC workloads. Protects investments in storage networks, the ultradense ETERNUS AB6100 easily addresses ever-changing requirements. Helps meet future demands without forklift upgrades.

Host Interfaces FC (8,16,32Gbit/s)
NVMe over FC (32Gbit/s)
NVMe over InfiniBand (100Gbit/s)
NVMe over RoCE (100Gbit/s)
Maximum Disk Drives24
No. of host interfaces 16 Port [FC (8,16,32Gbit/s)]
16 Port [NVMe over FC (32Gbit/s)]
8 Port [NVMe over InfiniBand (100Gbit/s)]
8 Port [NVMe over RoCE (100Gbit/s)]
Max. no. of hosts 512
Supported RAID levels 0, 1, 1+0, 3, 5, 6, DDP
Drive interface 100G NVMe
Capacity on Demand AB6100DPA AB61 Base(2.5 FC32-16P 64GB)
AB6100DQA AB61 Base(2.5 NVMe-FC32-16P 64GB)
AB6100DRA AB61 Base(2.5 NVMe-IB100-8P 64GB)
AB6100DSA AB61 Base(2.5 NVMe RoCE100-8P 64GB)
AB6100DTA AB61 Base(2.5 FC32-16P 256GB)
AB6100DUA AB61 Base(2.5 NVMe-FC32-16P 256GB)
AB6100DVA AB61 Base(2.5 NVMe-IB100-8P 256GB)
AB6100DWA AB61 Base(2.5 NVMe RoCE100-8P 256GB)
