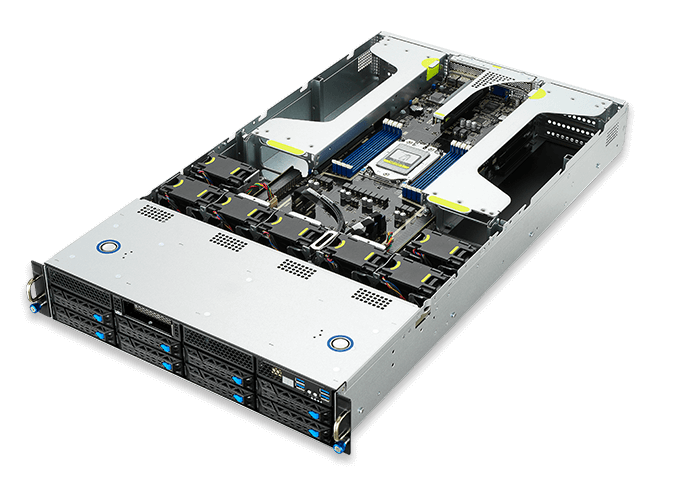

ESC4000A-E10

AMD EPYC 7002 2U single-socket GPU server supports up to 8 GPUs, 8 DIMM, PCIe 4.0, M.2, NVMe, OCP 3.0, Dual LAN, and max. TDP up to 280 W

ESC4000A-E10

AMD EPYC 7002 2U single-socket GPU server supports up to 8 GPUs, 8 DIMM, PCIe 4.0, M.2, NVMe, OCP 3.0, Dual LAN, and max. TDP up to 280 W

  • Powered by AMD EPYC™ 7002 processor with 64 cores, 128 threads, and support for max. TDP of up to 280 watts per socket
  • Up to eleven PCIe® 4.0 slots enables higher bandwidth and improved data transfer rates
  • GPU-optimized design allows four double-slot or eight single-slot GPUs, including NVIDIA® A100, Tesla® T4 or Quadro®
  • A Xilinx Alveo-qualified server support for Alveo U50 to provide optimized acceleration for workloads across cloud and on-premises data centers
  • Supports NVIDIA® NVLink bridge to enable scaling of performance to meet the demands of visual computing workloads
  • A choice of PCIe Gen 4.0, OCP 3.0, NVMe and M.2 on the front panel offer flexibility, performance and scalability for changing business needs
  • High power efficiency with redundant 2200W or 1600W Platinum power supplies
  • ASUS thermal control technology offers more efficient power consumption for large-scale environments
  • ASUS performance tuning technology improves workload throughput to achieve optimal server performance
  • Complete IT infrastructure remote management with ASMB9 (out-of-band) and ASUS Control Center (in-band)

Powered by AMD EPYC™ 7002 series processors

The AMD EPYC™ 7002 processor features the world’s first 7nm datacenter-design and a PCI Express® 4.0-capable x86 server processor with up to 2X the performance and 4X the floating-point capability. With support for up to 64 cores, 128 threads, 8-channel DDR4 3200, 128 PCIe 4.0 lanes and up to 280 watts of max. thermal design power (TDP), this processor also includes memory and virtualization encryption features to ensure exceptional security.



PCIe 4.0 expansion

PCIe® 4.0 delivers 16 GT/s bandwidth — double the speed of PCIe 3.0 — while offering lower power consumption, better lane scalability and backwards compatibility. ASUS ESC4000A-E10 features up to eleven PCIe 4.0 slots to support a diverse array of graphics, storage and networking applications, such as HBA/RAID, NIC and InfiniBand (IB) cards.

GPU and FPGA support

ESC4000A-E10 features a powerful GPU architecture that supports up to four double-slot or eight single-slot GPUs* in a 2U chassis, including NVIDIA® A100, Tesla® or Quadro®, plus features NVIDIA NVLink® Bridge to enable scaling of performance in order to meet the demands of AI and high-performance computing, and to securely run workloads in virtualization environments.

ESC4000A-E10 is also a Xilinx Alveo-qualified server to provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.

* Model supporting eight single-slot GPUs will be available in Q4 2020.



Flexible front panel design

ESC4000A-E10 features a flexible front panel design that allows for easy storage and network expansions and upgrades. The design offers easier accessibility of up to four NVMe SSD drives and an optional choice of OCP 3.0, a hyper M.2 adapter or HBA/RAID card via PCIe 4.0 slot for better performance and lower latency.



NVIDIA RTX server

ESC4000A-E10 is a NVIDIA RTX server validate system that deliver unprecedented performance at a fraction of the cost, space, and power requirements of traditional CPU-based solutions, from production rendering to scalable visualization systems or HPC, AI, ML, big data analytics, and at the edge deployment options.



Ultrafast connectivity for HPC applications

ESC4000A-E10 features a OCP 3.0 mezzanine card to deliver speeds of up to 200 Gbps for HPC applications that require high-bandwidth, low-latency network support for connecting multiple nodes and clusters.



Scalable storage design

To effectively manage the storage demands of growing amounts of data, ESC4000A-E10 has a dense chassis design that accommodates up to eight 3.5-inch or 2.5- inch drives, including up to four NVMe SSDs support. One onboard 22110-length M.2 SSD allows faster data transfer speeds for OS installation, and a hyper M.2 card is available to provide even greater expansion capability.



Performance Boost technology

ASUS servers feature exclusive Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for time-sensitive applications such as financial services or data center operations. In the BIOS you can choose from pre-configured server profiles optimized for specific workloads, maximizing overall performance and reducing server-configuration time.



Up to

Engine Boost Increase Performance24.5% Tflops
Engine Boost Increase Performance
Core Optimizer

Core Optimizer

Maximizes the processor frequency in multi-core operations, avoiding frequency shifting for reduced latency.

Engine Boost

Engine Boost

Automatic power acceleration with an innovative voltage design to increase server overall performance.

Workload Presets

Workload Presets

Preconfigured BIOS server profiles based on workloads and benchmarks for improved performance and efficiency.

* Benchmark: MP Linpack
* Configuration: ESC8000 G4 | OS: SLES 15|DIMM: DDR42933 2Rx4 32GB x 12pcs | BIOS Setting: BIOS 5102 with HT disabled

Thermal control technology

ASUS features server thermal-control technologies to provide real-time server temperature monitoring, intelligent fan-curve adjustments, and continue delivering the value of optimized power-efficiency.



ASUS Thermal Radar 2.0

ASUS Thermal Radar 2.0 takes advantage of placing up to 56 ambient sensors on the front panel of a server as well as in components for temperature monitoring. It can perform intelligent fan-curve adjustments to fit the real-time server usage patterns, lowering fan power-consumption by up to 36% and reducing total cost of ownership — ideal for data centers with extreme workloads.

More Sensors

Sensors are embedded on front panel, CPU, NVMe SSD, OCP card, PSU and memory. Up to 56 ambient sensors on selected models.

Intelligent Adjustment

Fans are grouped for dynamic fan curve adjustment in different fan zones to achieve more precise thermal monitoring.

Economic and Eco-friendly

More precise thermal information can reduce power consumption and lower down TCO.



Comprehensive IT infrastructure management

ESC4000A-E10 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations, and Mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
