ERX610-C741
4st/5nd Gen Intel® Xeon® Scalable Processor with Intel® C741

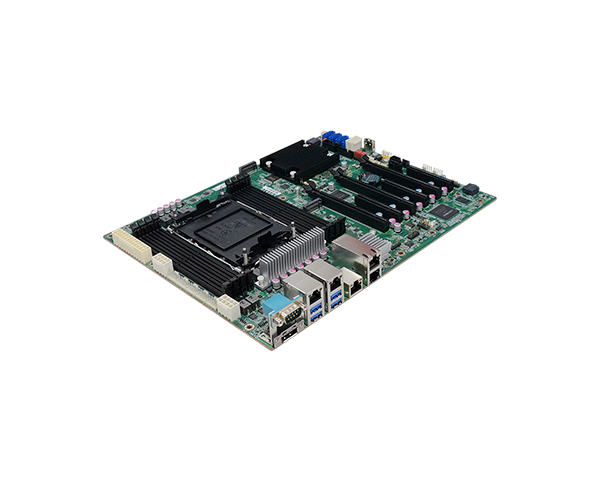

DFI ERX610-C741 – Server-Grade ATX Motherboard with 5th/4th Gen Intel® Xeon® Scalable
- 5th/4th Gen Intel® Xeon® Scalable Processors (LGA 4677) up to 270W
- 8x DDR5 ECC-RDIMM slots supporting up to 1024GB
- Multiple Expansions: 3x PCIe x16 (Gen 5), 3x PCIe x8 (Gen 5)
- Dual 10GbE and Dual 1GbE LAN ports with Dedicated IPMI
- Out-of-Band (OOB) Remote Management with IPMI/Redfish support
- Rich Storage: 4x SATA 3.0 (RAID 0/1/5/10) and 2x M.2 2280
DFI’s ERX610-C741 is a server-grade ATX motherboard designed to deliver exceptional performance for edge computing, AI workloads, and industrial servers. Powered by 5th and 4th Gen Intel Xeon Scalable processors, it supports massive memory bandwidth with DDR5 and features cutting-edge PCIe Gen 5 expansion. With comprehensive remote management capabilities (IPMI/Redfish) and high-speed 10GbE networking, it is built for reliability in demanding data-intensive applications.
Specifications Summary
| Processor System | CPU | 5th/4th Gen Intel® Xeon® Scalable, LGA 4677 Socket (up to 270W) |
|---|---|---|
| Chipset | Intel® C741 Chipset | |
| Memory | Capacity | 8x DDR5 ECC-RDIMM up to 1024GB (Max. 5600MHz) |
| Network | LAN Ports | 2x 10GbE (Intel E610), 2x 1GbE (Intel I210AT), 1x Dedicated IPMI |
| I/O Interfaces | USB & Display | 6x USB 3.2 Gen1, 3x USB 2.0, 1x DisplayPort |
| Serial & Storage | 2x RS-232/422/485, 4x SATA 3.0 (RAID 0/1/5/10) | |
| Expansion | PCIe Slots | 3x PCIe x16 (Gen 5), 3x PCIe x8 (Gen 5) |
| M.2 Sockets | 2x M.2 2280 M-Key | |
| Management | BMC | AST2600 (Supports IPMI/Redfish) |
| Mechanical & Env. | Operating Temp. | 0 ~ 60 °C |
| Form Factor | ATX, 305 x 244 mm |
