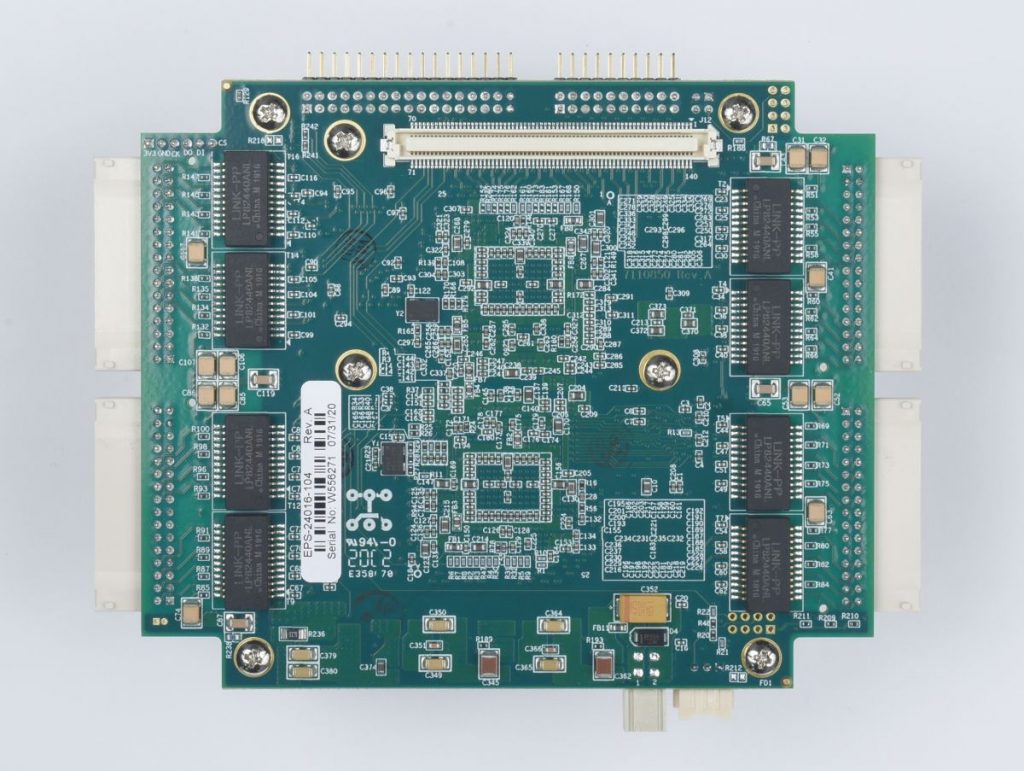

Epsilon-24000
Managed 26-Port Gigabit Ethernet Switch with wide voltage input and serial management port
Features
- 16 or 24 Gigabit Ethernet ports with non-blocking wire-speed performance
- 1 1G SFP socket; 1 2.5G SFP socket
- Built-in microcontroller for configuration and management
- RS-232 serial port provides out-of-band management interface
- Can operate autonomously or in conjunction with a host SBC
- 8K MAC addresses and 4K VLANs (IEEE 802.1Q), as well as 8K IPv4 and IPv6 multicast group support
- Jumbo frame support at all speeds
- Dual leaky bucket policers with remarking and statistics
- Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad)
- Multicast and broadcast storm control, as well as flooding control
- Rapid Spanning Tree protocol (RSTP) and MSTP
- 8 priorities and 8 QoS queues per port with scheduling
- Shaping/policing per queue and per port
- Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X
- Wide input voltage range: +5-34VDC
- Latching connectors for improved ruggedness
- PC/104 form factor module. 3.55″ x 3.775″ (90mm x 96mm)
- Extremely rugged -40ºC to +85ºC operating temperature

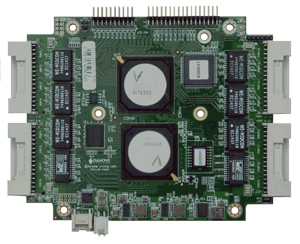

Description
Epsilon-24000 is a managed Layer 2+ Ethernet switch module offering up to 24 10/100/1000Mbps copper twisted pair ports and 2 small form factor pluggable (SFP) sockets in the compact PC/104 form factor. Epsilon-24000 is designed for rugged applications including industrial, on-vehicle and military.
Epsilon-24000 is a standalone switch that does not require any host computer interface. All switch functions are managed by a microprocessor embedded directly into the switch. The processor is accessed via an in-band web interface over one of the Ethernet ports or via an out-of-band command-line interface over an RS-232 serial port. The integrated web interface provides an intuitive GUI for use in configuring and managing all switch functionality. On-board memory holds dual application images, boot code, MAC addresses, and other parameters, and can also be used for program execution.
Epsilon-24000 includes a dual SFP socket for interfacing to 1G fiber Ethernet networks. One port can operate at enhanced 2.5G speed to support efficient stacking of two switches together for a combined total of 50 ports.
Epsilon-24000’s advanced Ethernet switch board includes two innovative features that enable automatic power savings. The switch can detect unused Ethernet ports on network devices and power them down or place them in stand-by mode. Additionally, the switch actively adjusts the power level needed based on cable length, saving energy on links shorter than the 100m maximum specified length. Input power is provided through the built-in, wide-range +5 to +34VDC power supply, enabling operation using industrial power sources.
Epsilon-24000 was designed for use in vehicle and harsh environment applications. All I/O connectors are latching, providing enhanced reliability over the RJ-45 connectors used in commercial Ethernet switches. A 50% thicker PCB provides better protection against vibration in vehicle environments. The wide range 5-34V input power supply is compatible with all common vehicle and industrial power sources. The -40ºC to +85ºC operating range makes Epsilon-24000 suitable for use in outdoor and vehicle applications.
Epsilon-24000 comes loaded with all required firmware, enabling its immediate operation without any development effort. The included web interface provides an intuitive GUI for use in configuring and managing switch functionality. The ACC-EPS24000-DB product upgrades the EPS-24016-104 model to the EPS-24026-104 model, adding 8 Gigabit Ethernet ports and 2 SFP sockets.

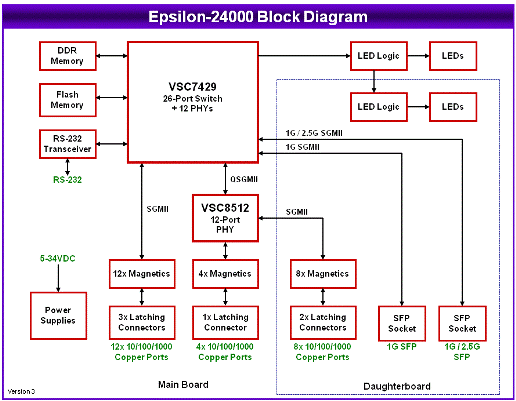

Block Diagram
Development Kit
Two Development Kits are available for the Epsilon-24000. The DK-EPS24026 Development Kit contains an EPS-24026-104 26-port Gigabit Ethernet switch, cable kit and LED accessory board. The DK-EPS24016 Development Kit contains an EPS-24016-104 16-port Gigabit Ethernet switch, cable kit and LED accessory board.
Cable Kit
Two Epsilon-24000 cable kits are available, one for each Epsilon-24000 model. Each kit includes the necessary cables for Epsilon-24000’s inputs and outputs. The cable kit pictured below is the CK-EPS24016 Cable Kit.
| Number | Qty | Cable | Description |
| 1 | 1 | 6981050 | Serial cable |
| 2 | 4 or 6, kit dependent | 6981508 | Quad port Ethernet cable |
| 3 | 1 | 6981507 | Power cable |
Specifications
| Managed Ethernet Switch | |
| Switch Type | 26-port, Layer 2+ switch Built-in microcontroller for configuration and management |
| Number of Ports | 16 or 24 10/100/1000Mbps Ethernet ports with non-blocking wire-speed performance 1 1G SFP socket; 1 2.5G SFP socket |
| On-board Memory | 4Mb packet memory Shared memory buffer with per-port & CoS memory management |
| MEF | Hierarchical MEF compliant policing & scheduling MEF E-Lane, E-Line, and E-Tree services |
| Frame Buffer | Jumbo frame support at all speeds |
| VLAN | IEEE 802.1Q VLAN switch with 8K MACs and 4K VLANs Push/pop up to two VLAN tags Independent & shared VLAN learning (IVL, SVL) |
| Multicast | IPv4 and IPv6 multicast group support |
| Remarking | Dual leaky bucket policers with remarking and statistics |
| Classifier | 8 priorities and 8 CoS queues per port with strict or deficit-weighted round robin scheduling Shaping/policing per queue and per port |
| Storm Control | Policing with storm control and MC/BC protection |
| Link Aggregation | IEEE 802.3ad |
| Security | Advanced security and prioritization available though multistage TCAM engine |
| RSTP | Rapid Spanning Tree Protocol (IEEE 802.1W) and MSTP |
| MIBs | Support for both WebStax and CEServices MIBs |
| Power Management | ActiPHY and PerfectReach power management VeriPHY cable diagnostics |
| Serial Port | 1 RS-232 port for host interface |
| Indicator LEDs | 50 status LEDs: 2 per copper port, 1 per SFP port |
| Standalone Capable | Standalone network switch, or in combination with a host computer |
| General | |
| Power Input | +5 to +34V DC/DC power supply |
| Power Consumption | 16 ports active: 10.4W maximum at +12VDC 26 ports active: 15.7W maximum at +12VDC |
| Form Factor | PC/104 3.55″ x 3.775″ (90mm x 96mm) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |

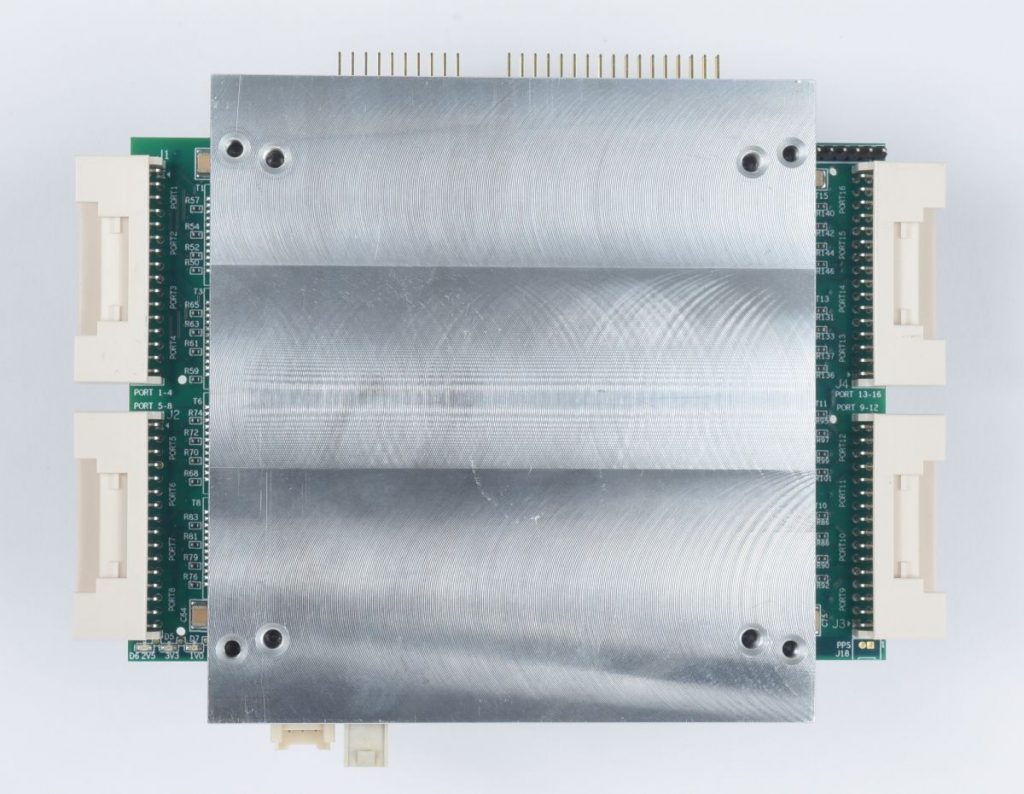

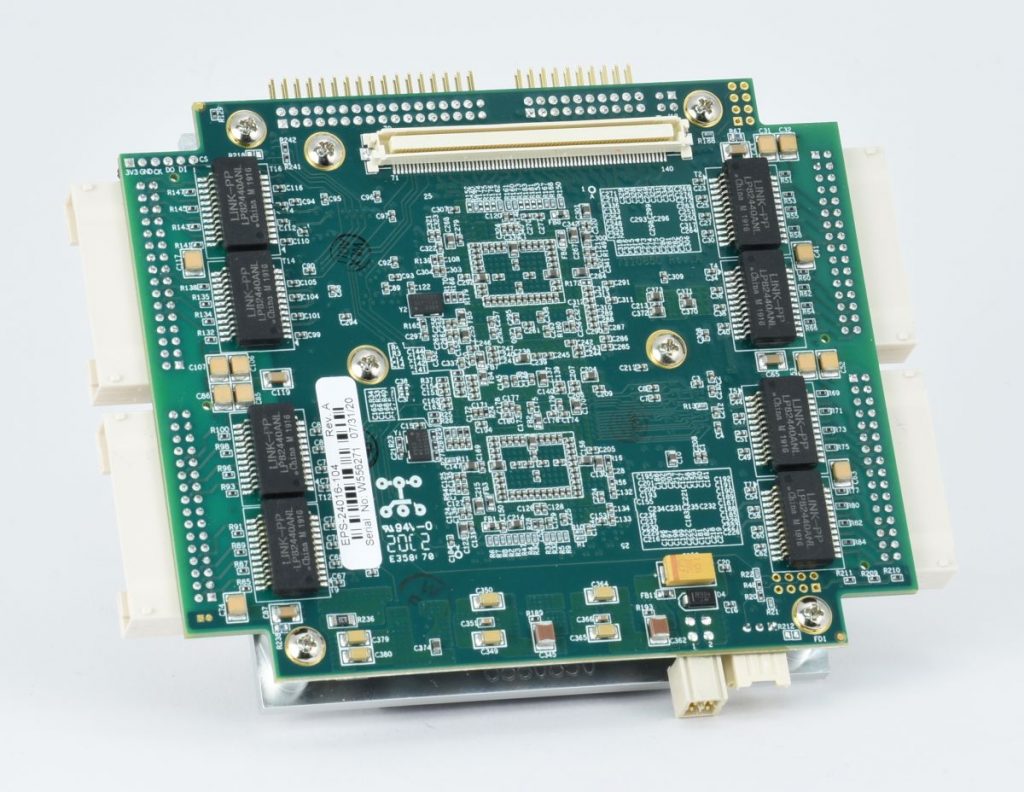

| Weight | 4.9oz (138.9g) with heatsink |
| MTBF | 461,094 hours at 20°C main board 1,661,388 hours at 20°C daughter board |
| RoHS | Compliant |
available models:
| EPS-24026-104 | 26-Port Gigabit Ethernet Switch including 2 SFP ports, PC/104 form factor, -40°C to +85°C operating temperature |
| EPS-24016-104 | 16-Port Gigabit Ethernet Switch, PC/104 form factor, -40°C to +85°C operating temperature |
| DK-EPS24026 | EPS-24026-104 Development Kit: EPS-24026-104 switch, CK-EPS24026, ACC-EPS24K-LED-S |
| DK-EPS24016 | EPS-24016-104 Development Kit: EPS-24016-104 switch, CK-EPS24016, ACC-EPS24K-LED-S |
| ACC-EPS24000-DB | EPS-24000 Daughterboard, 8-Port Gigabit Ethernet & 2 SFP ports, PC/104 form factor |
| ACC-EPS24K-LED-C | Epsilon-24000 LED Accessory Board with pin headers and cables |
| ACC-EPS24K-LED-S | Epsilon-24000 LED Accessory Board with sockets |
