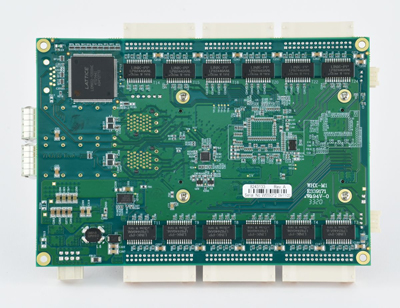

EPS-24G4X
Managed 28-Port Gigabit Ethernet Switch with 4 10G SFP+ Ports
FEATURES
| – | Rugged Ethernet switch for vehicle and other harsh environment applications |
| – | 24 total gigabit Ethernet ports |
| – | 4 10G SFI ports with SFP+ sockets |
| – | Activity and status LEDs for all ports |
| – | 7-40VDC input range |
| – | Thicker PCB, latching connectors, and -40 to +85°C operating temperature support rugged mobile applications |
| – | Layer 2+ switching and Layer 3 routing software available |
| – | Software customization and branding available |
| – | IEEE 1588 PTP support available |
| – | Design kit available with carrier board schematics and bill of materials |
| – | Custom carrier board and complete switch solution design and manufacturing services available |
Overview
The EPS-24G4X is a managed Ethernet switch based on Diamond’s EPSM-10GX4 switch module. The switch implements all features of the style=’text-decoration: underline’>EPSM-10GX4 Ethernet switch module, including 24 10/100/1000Mbps copper ports and 4 10Gbps SFI ports accessed via SFP+ sockets. Depending on the ordering configuration, the switch contains embedded software supporting Layer 2 switching, Layer 3 routing/switching, and optional IEEE1588 PTP operation.
Two software packages are available, Layer 2+ switching and Layer 3 routing/switching. In addition, IEEE-1588 precision time protocol support is available with a minor modification to support an external precision clock circuit and 1pps signal source provided by the carrier board. All software features are manageable via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port.

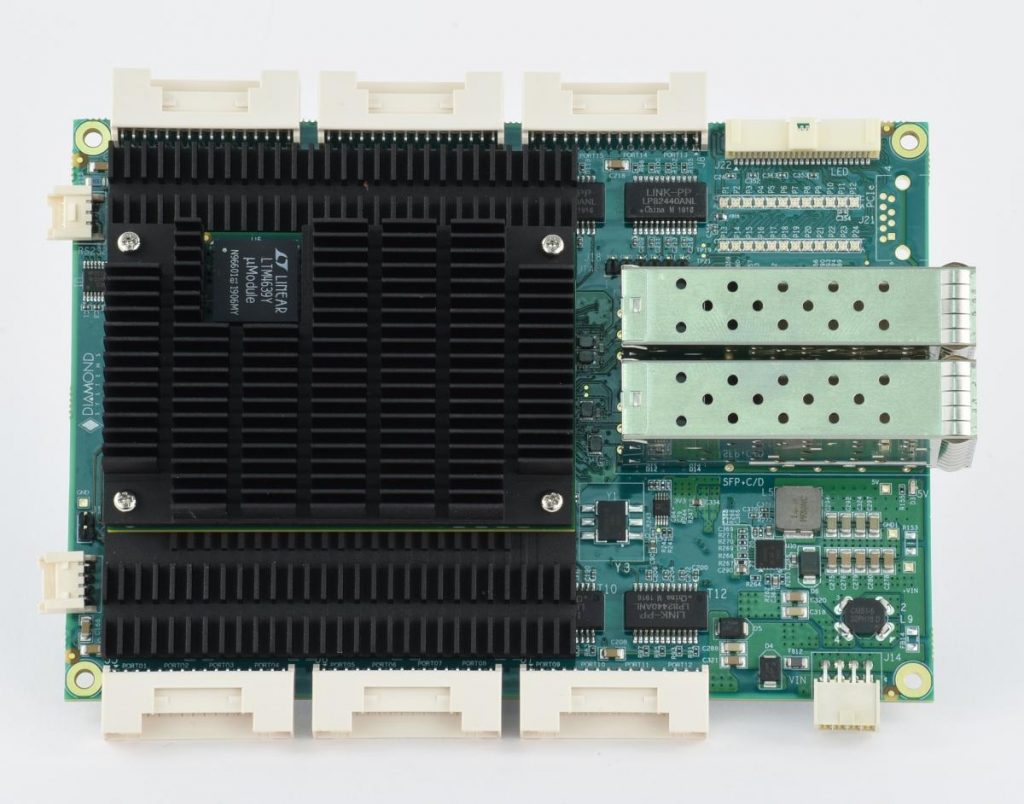

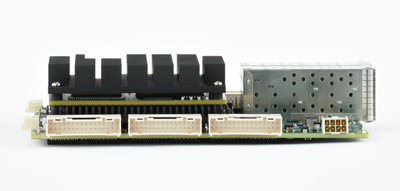

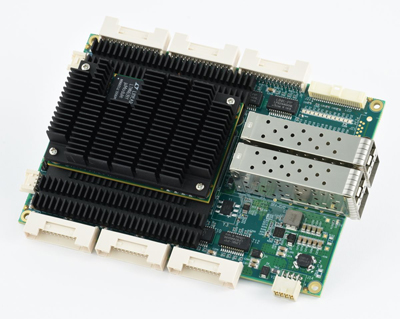

EPS-24G4X is designed specifically to meet the challenges of vehicle and other rugged environments, with its -40/+85°C operating temperature range, 50% thicker PCB, latching I/O connectors, and its MIL-STD-202G shock/vibration resistance. A wide-range input power supply with built-in transient protection provides compatibility with a range of industrial and vehicle power supplies. The board also forms the heart of Diamond’s SabreNet-24000 rugged Ethernet switch. Cooling for EPS-24G4X is provided via two heat sinks: a low-profile heat sink between the carrier board and the EPSM module and a taller heat sink for the EPSM module.
The EPS-24G4X is included as part of the EPSM-10GX4 development kit. Schematics and bill of materials are included to simplify the development of custom advanced Ethernet switching solutions based on the EPSM-10GX4 module.
Block Diagram
Embedded Software

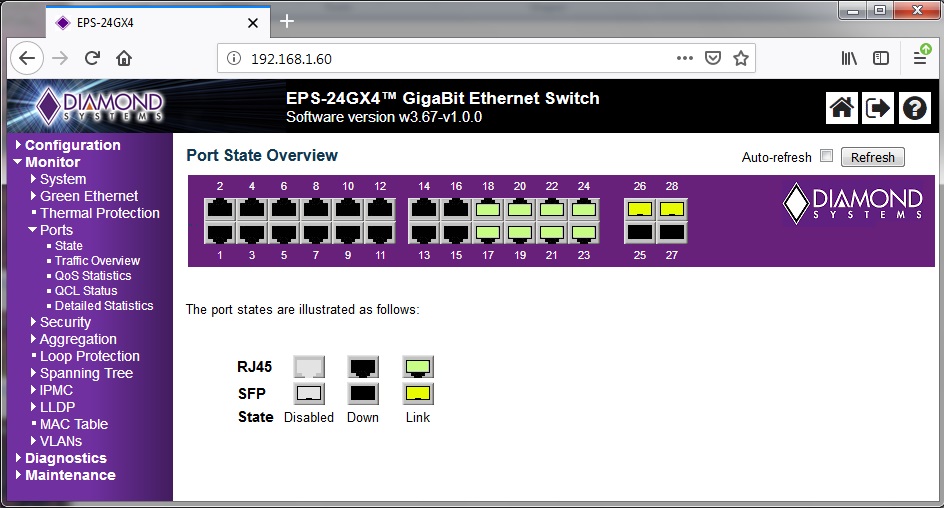

Two software packages are available for EPS-24G4X, Layer 2+ switching and Layer 3 routing/switching. In addition, IEEE-1588 precision time protocol support is available with a minor modification to install a precision clock circuit on the board. All software features are manageable via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port. Customer branding is available to put your logo / color scheme / part numbers on the GUI and serial interface.
Layer 2+ software highlights include the following:
8K MAC addresses and 4K VLANs (IEEE 802.1Q)
8K IPv4 and IPv6 multicast group support
Jumbo frame support at all speeds
Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad)
Multicast and broadcast storm control, as well as flooding control
Rapid Spanning Tree protocol (RSTP) and MSTP
Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X
8 priorities and 8 QoS queues per port with scheduling
Layer3 software additional highlights:
Hardware- and software-based IPv6 L3 static routing
RFC 2328 OSPFv2 dynamic routing
IEEE 1588 precision time protocol (PTP)
RADIUS accounting
Port and Queue policers
Models
| EPS-24G4X | Epsilon 28-port Ethernet switch with 24 10/100/1000 ports + 4 10G SFI ports, Layer 2+ switching software |
| EPS-24G4X-L3 | Epsilon 28-port Ethernet switch with 24 10/100/1000 ports + 4 10G SFI ports, Layer 3 routing/switching software |
| EPS-24G4X-1588 | Epsilon 28-port Ethernet switch with 24 10/100/1000 ports + 4 10G SFI ports, Layer 3 routing/switching software with IEEE-1588 PTP clock circuit and software support |
Specifications
| Number of Ports | 24 10/100/1000Mbps Ethernet ports with non-blocking wire-speed performance 4 10G SFP+ ports |
| Implementation | 2-board solution: EPSM-10GX4 switch module provides core switch function and 12 PHYs; additional 12 PHYs and remaining circuitry implemented on carrier board |
| On-board Memory | 4MB packet memory |
| Network Management | SNMP v1/v2c/v3; Web GUI and command line interface (CLI) |
| Serial Port | 1 RS-232 port for host interface, 38400/N/8/1 |
| Indicator lights | LEDs for each port indicate link status and speed |
| Dimensions | 107 x 156mm / 4.213 x 6.142″ |
| Input voltage | 7-40VDC |
| Power consumption | Vin = 24VDC: 13W, all ports idle 20W, all 24 1G ports active 26W, all 24G ports and all 4 10G ports active |
| Power Management | ActiPHY and PerfectReach power management reduce power for shorter cable lengths and shut down power to disconnected ports |
| Operating temperature | -40 to +80°C |
| Weight | 389g / 13.7oz |
| RohS | Compliant |
