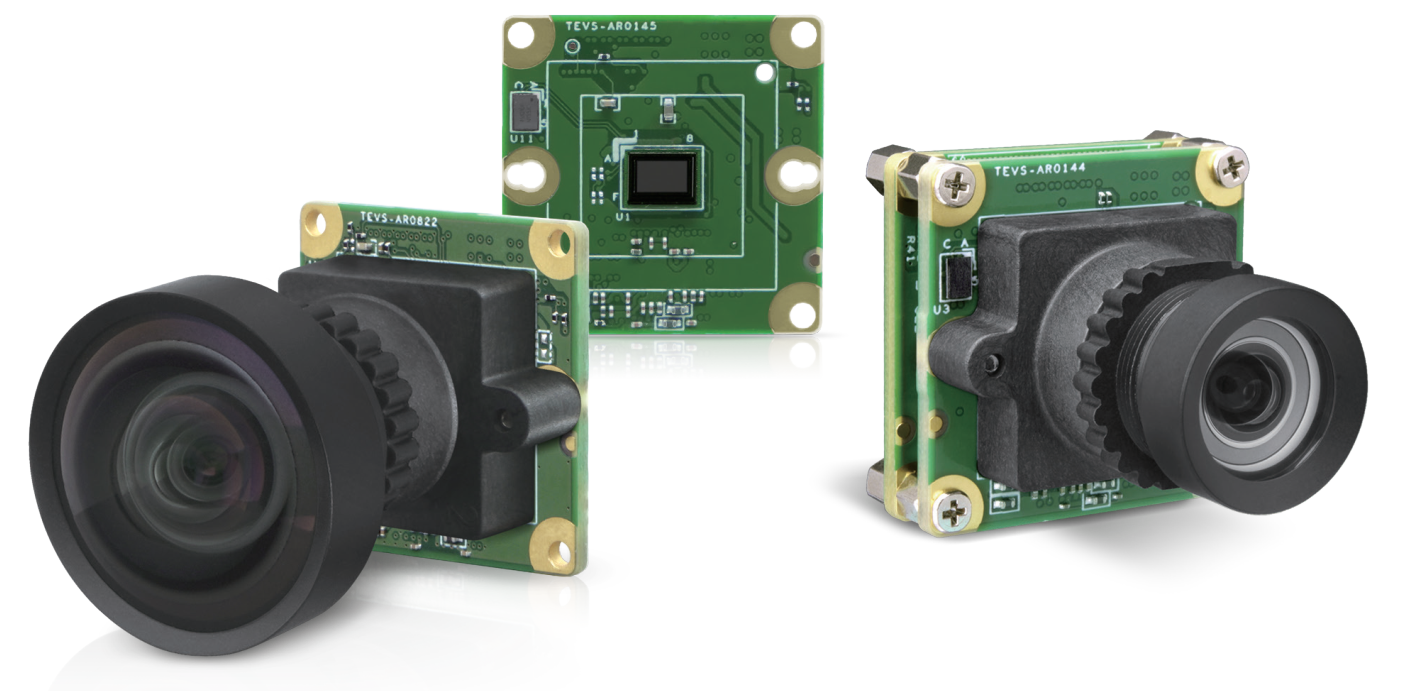

TechNexion Embedded Vision Camera Series – MIPI CSI-2 & USB
- onsemi CMOS sensors ranging from 1MP to 20MP
- Global Shutter and Rolling Shutter configurations

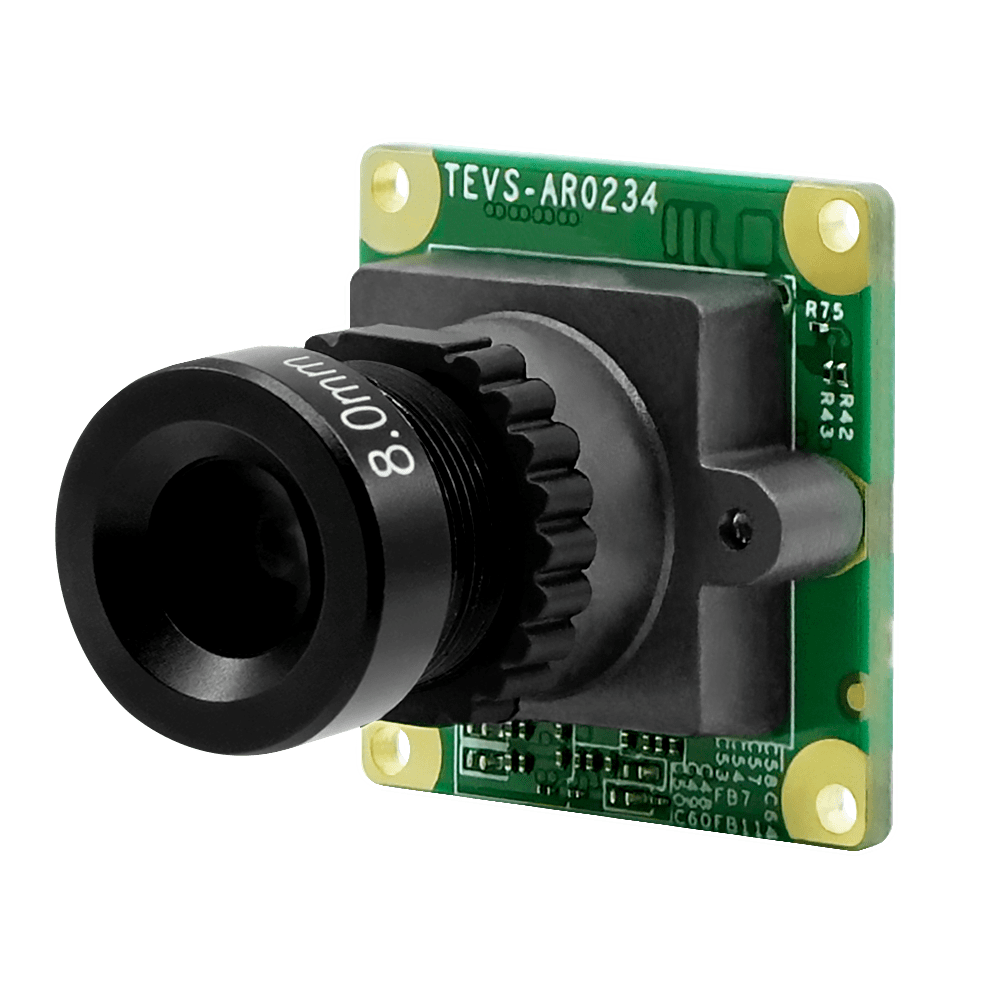

- MIPI CSI-2 or USB interfaces with UVC Plug-and-play support
- Integrated ISP for advanced image processing

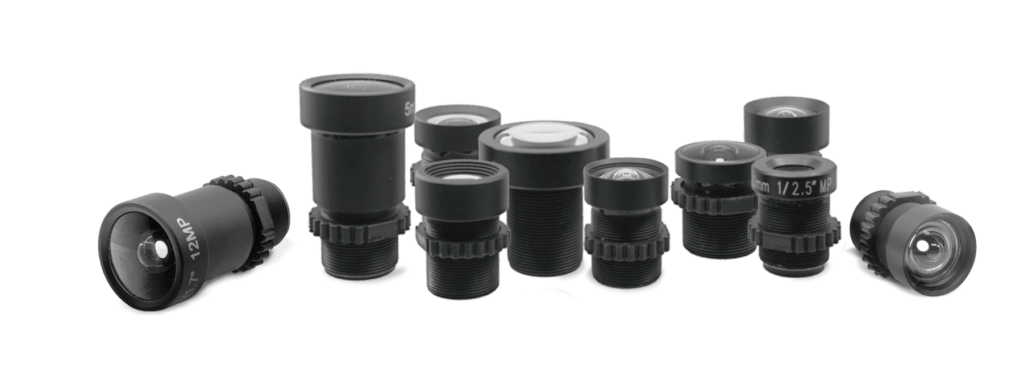

- Wide variety of lenses including S-Mount, C-Mount, and CS-Mount
The TechNexion Embedded Vision series provides scalable MIPI CSI-2 and USB camera modules for industrial automation and robotics. These high-performance modules offer flexible sensor options, HDR support, and seamless integration via unified software drivers.
Specifications Summary
| Sensor Options | CMOS Sensor | onsemi (AR0144 to AR2020) |
|---|---|---|
| Resolution Range | 1MP, 2.3MP, 5MP, 8MP, 13MP, 20MP | |
| Chromaticity | Color / Monochrome | |
| Camera Features | Shutter Type | Global Shutter / Rolling Shutter |
| Advanced Features | Integrated ISP, HDR Support (selected models) | |
| Interface | Connectivity | MIPI CSI-2 (up to 4 lanes) / USB (UVC compliant) |

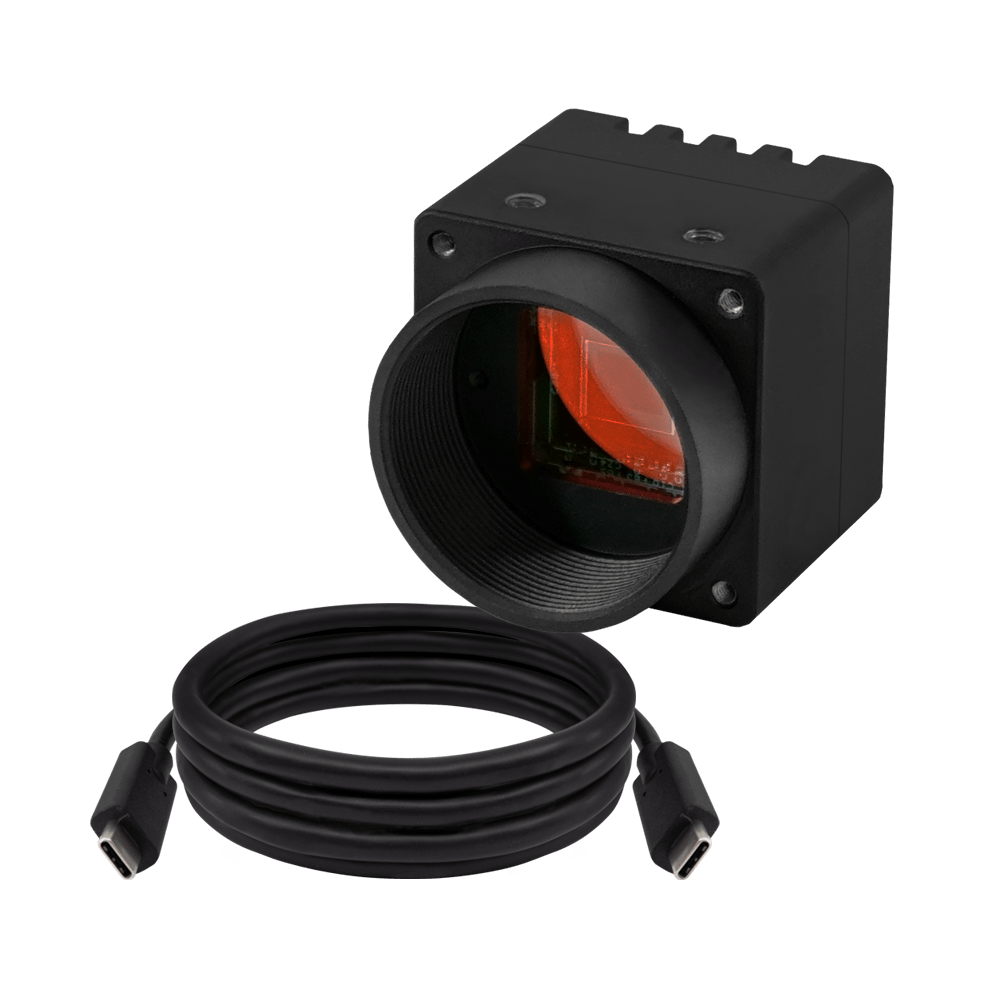

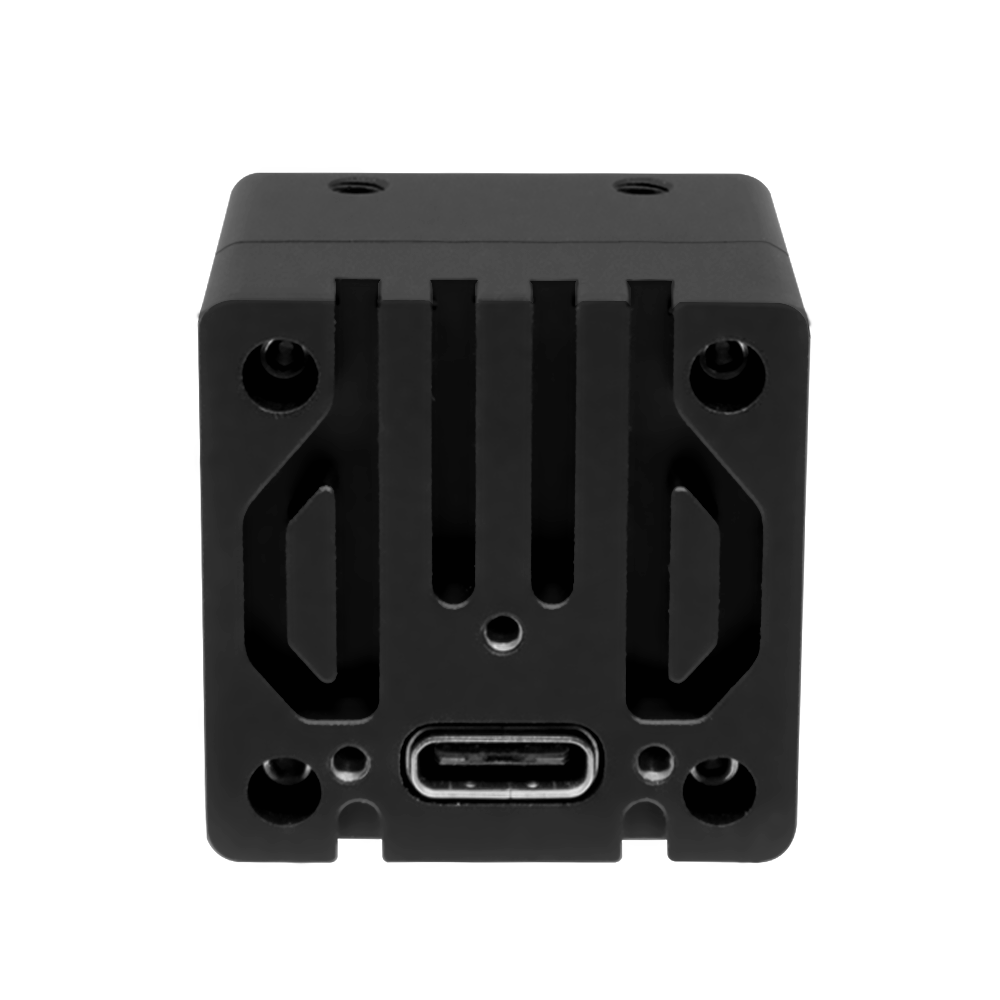

| USB Locking | Intel-compliant USB Type-C locking connector | |
| Lenses | Mount Types | S-Mount (M12), C-Mount, CS-Mount, Board Level |
| Software | Development Kit | VizionViewer™, VizionSDK (C++ / Python support) |
