Small Energy Footprint with Powerful Processing Capabilities

  • Palm-sized and Fanless Embedded System
  • 2GB/4GB LPDDR4-2400 memory onboard
  • Mini-DP++ resolution supports up to 4096×2160 @ 60Hz
  • Supports 1 Mini PCIe
  • Rich I/O ports: 2 Intel GbE, 1 COM, 3 USB
  • Extended operating temperature: -20 to 60°C
  • 15-Year CPU Life Cycle Support Until Q4′ 31 (Based on Intel IOTG Roadmap)

Small Energy Footprint with Powerful Processing Capabilities

DFI EC90A-AL is a mini embedded system built with the Intel Atom® Processor E3900 Series (codenamed Apollo Lake) The powerful computing capacity perfectly supports intense media processing like video transcoding and playback with the Intel® HD Graphics 500, but at very low power consumption. Its high performance with spectacular resolution is the ideal candidate to drive your factory in a wide array, from manufacturing and industrial automation to IIOT sensors and video systems in diverse usage scenarios.

Have the Control in A Hand

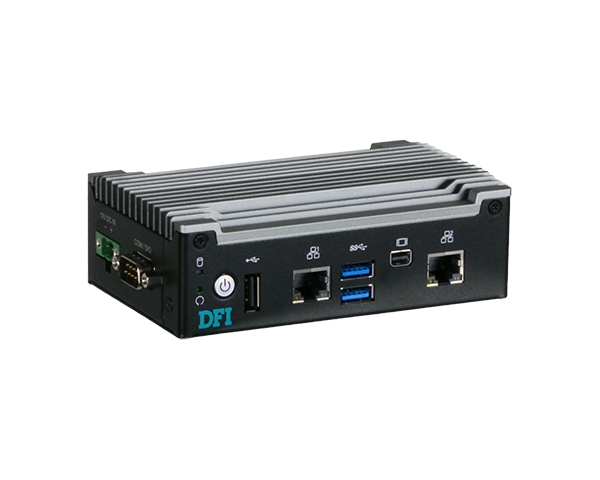

The compact EC90A-AL measures only 127mm x 42mm x 80.4mm in size, as mini as a smartphone, reaching an unprecedented high mobility and space adaptability. The fanless design offers an effective cooling solution minimizing particle intrusion, making maintenance further easy with enhanced reliability.

Easy Installation

The EC90A-AL system is especially designed with DIN Rail mount, rendering installation and removal of the device inside the electrical cabinet no longer a huge but a time- and effort-saving work.

Wide Temp Adaptability

The EC90A-AL is built to withstand extreme temperature conditions. Designed with industrial-grade components to ensure long-term robustness at -20°C to 60°C (optional temperature rating), it supports applications in harsh environments.

Flexibility in Multiple Applications

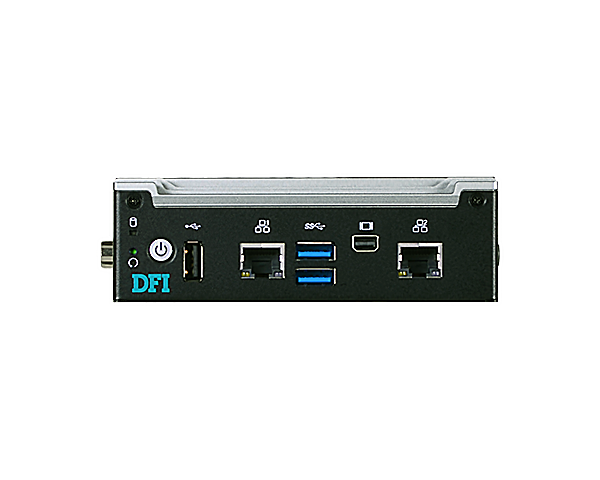

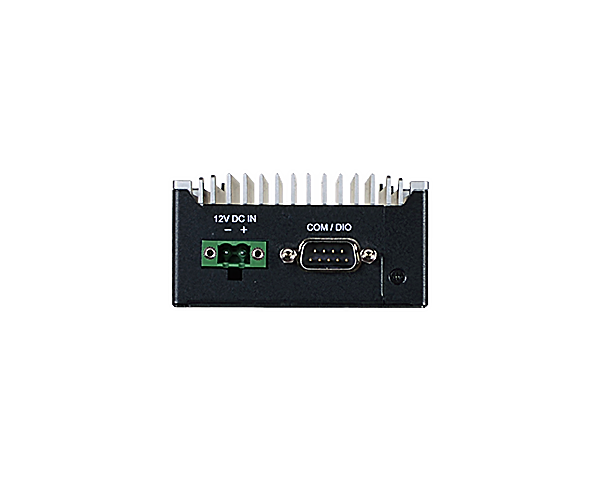

Though compact and lightweight, the EC90A-AL is a leading-edge embedded device with great I/O versatility. It features a variety of interfaces, including dual GbE, 3 USB ports, COM (or digital-IO), and one Mini DP++ that fulfill diverse connectivity requirements.

Wire Free, Faster Speed

The built-in Mini PCIe socket supports LTE, 3G/4G, and Wi-Fi communication modules to help build flexible high-speed connectivity with reduced complexity.
