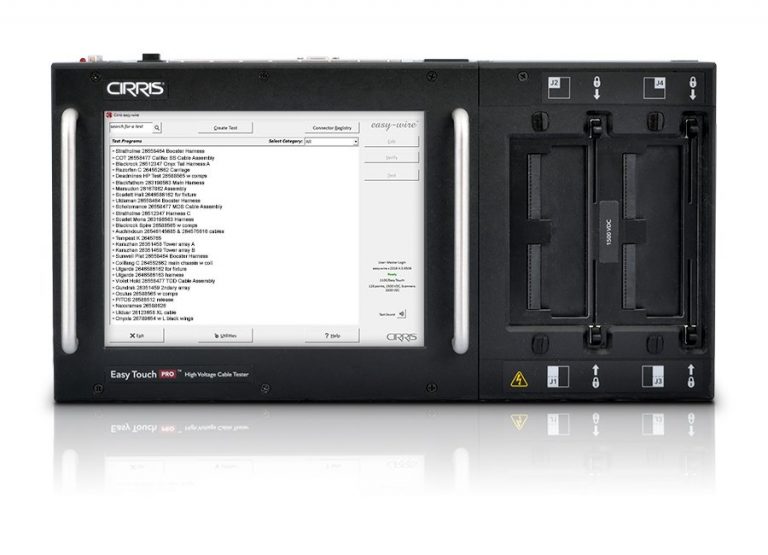

Easy-Touch™ Pro
High voltage tester with built-in Windows operating system.
The Easy-Touch Pro is a self-contained high voltage cable tester designed for easy integration within your manufacturing process. Powered by Windows® and Cirris Easy-Wire™ software, this tester provides a good mix of function and flexibility.
High voltage tester with built-in Windows operating system.
The Easy-Touch Pro is a self-contained high voltage cable tester designed for easy integration within your manufacturing process. Powered by Windows® and Cirris Easy-Wire™ software, this tester provides a good mix of function and flexibility.
Standalone Benchtop Tester:
- Up to 1024 points with add-on boxes (128 pts/box)
- Interchangeable adapters
- IPC-WHMA A-620 Compliant
- Meets requirements for classes 1, 2, and 3.
- 1500VDC
- 1000VAC
Built-in Windows 10 PC:
- 10.4” full color capacitive touch-screen display
- Runs Cirris Easy-Wire software
- Access to Easy-Wire user help system
- Hard-drive
- Display Port
- VGA
- USB
- Ethernet
- Audio port
Reliable and Capable:
- Tests for
- Opens
- Shorts
- Miswires
- Verifies solder and crimp terminations
- Measures resistance
- Insulation resistance and DWV testing (1500VDC-1000VAC optional)
- Tests Components
- Resistors
- Diodes
- Capacitors
- LEDs
- Switches
- Twisted pairs
- 4-Wire “Kelvin” Testing capable
- Optional custom scripting available
specs:
Test Points
128 points; expandable to 1,024 points in 128-point increments
Low Voltage Test
2 Wire
- Voltage: 4 V max
- Current: 3 μA to 6 mA
- Resistance: 0.1 Ω to 100 kΩ ± 1% ± 0.1 Ω, 100 kΩ to 5 MΩ ± 10%
4 Wire
- Voltage: 4 V max
- Current: 1 mA to 1 A
- Resistance: 0.001 Ω to 10 Ω ± 2% ± 0.001 Ω
Component Tests
- Diodes: Silicon, LEDs, zeners with breakdown > 4 V
- Resistors: 0.1 Ω to 100 kΩ ± 1% ± 0.1 Ω, 100 kΩ to 5 MΩ ± 10%
- Capacitors: 5 nF to 100 μF ±10% ± 0.02 nF
- Twisted Pairs: Verify proper pairing in twisted pair cables
High Voltage Test
Insulation Resistance Test
- Voltage: 50 to 1500 VDC ± 5% ± 5 V (2000 VDC optional)
- Resistance: 5 MΩ to 1000 MΩ ± 10%
Dielectric Withstand Test
- Voltage: 50 to 1500 VDC ± 5% ± 5 V (2000 VDC optional, 50 to 1000 VAC optional)
- Current Limit: 0.1 mA to 1.5 mA
- Max Capacitance Per Net: 150 nF @ 300 VDC, 90 nF @ 500 VDC, 45 nF @ 1000 VDC, 30 nF @ 1500 VDC, 9.5 nF @ 1000 VAC
- HV Energy Limit: 35 mJ
- HV Charge Limit: 45μC
Max Points Per Net
512
Digital Input/Output
4 Inputs / 6 Outputs, 24 V Open collector, +10 V and +5 V each current limited to 100 mA
Test Point Interface
Cirris Adapter System
User Interface
- Built-in PC with Windows 10®
- Display: 10.4” Full-Color Capacitive Touch Screen display
Power
115 / 230 V 50/60 Hz
Size
- Main unit: 17.5”w x 9”h x 5”d (44.5 cm x 23 cm x 13 cm)
- Add-on box: 6.5”w x 9”h x 5”d (16.5 cm x 23 cm x 13 cm)
Weight
- Main unit: 18 lbs (8.2 kg)
- Add-on box: 6.5 lbs (2.9kg)
